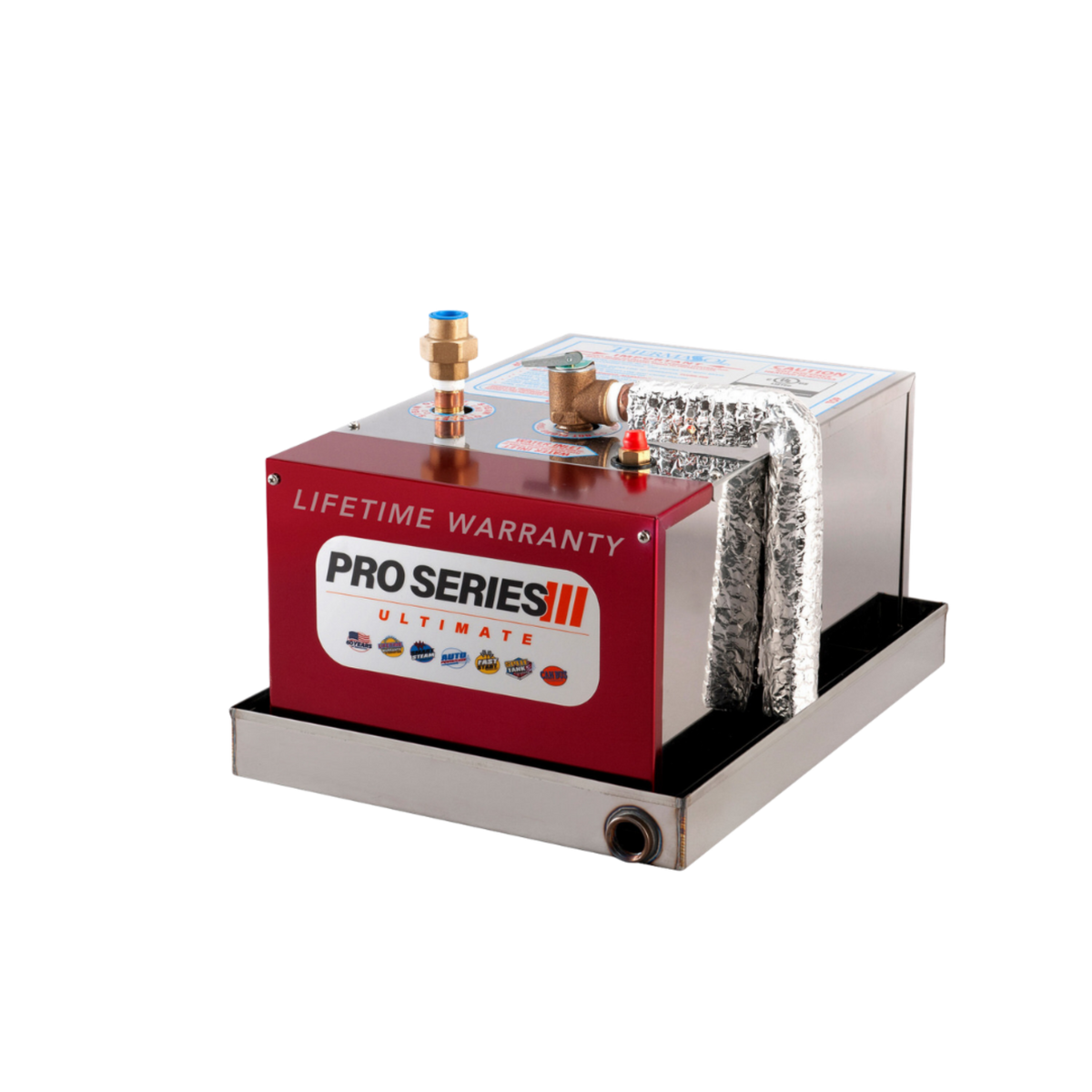

ThermaSol PRO Series III Steam Generator

Shop with Confidence

Authorized Retailer of ThermaSol
Full Manufacturer Warranty Included
Financing Options Available
U.S.-Based Customer Support
Free Shipping to the Contiguous U.S.

Residential Steam Shower Generator | 6kW to 24kW | Seven Sizes for Showers up to 1,200 Cubic Feet

The ThermaSol PRO Series III Steam Generator is the residential steam shower generator behind ThermaSol's complete home steam systems. Available in seven sizes from 6kW to 24kW, the PRO Series III is sized to your enclosure — from a compact 84-cubic-foot shower to a 1,200-cubic-foot steam room — so you get the right output for the space rather than an oversized or undersized unit.

Every PRO Series III is built around an industrial-grade stainless steel split tank, ThermaSol's patented SmartSteam™ temperature control, and the Auto PowerFlush™ self-cleaning system. The generator delivers constant steam at a constant rate — no lag between bursts — and can be installed up to 50 feet from the shower, which gives you flexibility in where the unit lives. It is designed, engineered, and built in the U.S.A. and backed by ThermaSol's lifetime factory warranty.

The PRO Series III is the generator required by the ThermaSol TT2 & Serenity Total Wellness Package and ThermaSol's other residential steam controls. A ThermaSol control is required to operate the generator and is sold separately.

Who This Is For

The PRO Series III is for homeowners, designers, and builders planning a residential steam shower — a new primary bath, a remodel, or an upgrade to an existing steam enclosure — who want a generator with a lifetime warranty and a control ecosystem that can grow to include touchscreen control, rainhead, chromatherapy, and audio. It is a residential generator; for spas, hotels, health clubs, or other commercial settings, see the ThermaSol PowerPak3 Commercial Steam Package or the ThermaSol Day Spa Multi-Room Steam System.

Why Choose the ThermaSol PRO Series III

Seven sizes (6kW–24kW) covering steam showers from 84 to 1,200 cubic feet
Patented SmartSteam™ technology for precise temperature control and steady steam
Constant steam at a constant rate — no steam lag or burst
Industrial-grade stainless steel split-tank construction
Auto PowerFlush™ pressurized inner-tank self-cleaning system
FastStart™ technology
Two-way digital CAN-bus communication with ThermaSol controls
Installs up to 50 feet from the shower
Stainless steel drain pan included
Lifetime factory warranty with 2-year in-home coverage (see Warranty)
Designed, engineered, and built in the U.S.A.

Choosing the Right Size

ThermaSol sizes the PRO Series III by the volume of your steam enclosure. Multiply the interior length × width × height of the shower in feet to get cubic feet, then choose the model whose maximum room size meets or exceeds that number. ThermaSol recommends sizing up one model for 9-foot ceilings and two models for 10-foot ceilings. Materials such as natural stone, tile, glass block, and exterior walls also increase the steam load — the installation manual includes the full adjustment guidance, and Prime Regeneration is glad to help you confirm sizing before you order.

Model	Output	Max Enclosure	Max Amperage	Electrical Connection
PROIII-84	6kW	84 cu ft	28 A	NEMA 6-30P plug, 5 ft cord
PROIII-140	8kW	140 cu ft	37 A	NEMA 6-50P plug, 5 ft cord
PROIII-240	10kW	240 cu ft	46 A	NEMA 6-50P plug, 5 ft cord
PROIII-395	11kW	395 cu ft	55 A	Hardwired
PROIII-575	15kW	575 cu ft	69 A	Hardwired
PROIII-750	20kW	750 cu ft	92 A	Hardwired
PROIII-1200	24kW	1,200 cu ft	110 A	Hardwired

Key Features

SmartSteam™ Technology: ThermaSol's patented system monitors and adjusts power output to hold the steam room at the temperature you set, delivering constant steam at a constant rate.
Split-Tank Design: Separates the heating function from the water-feed function inside an industrial-grade stainless steel tank for efficiency and long service life.
Auto PowerFlush™: A pressurized inner-tank cleaning cycle helps clear sediment and mineral buildup automatically, protecting the generator over time.
FastStart™: Engineered to bring steam to the enclosure quickly after start-up.
CAN-bus Communication: Two-way digital communication between the generator and ThermaSol controls for reliable operation and diagnostics.

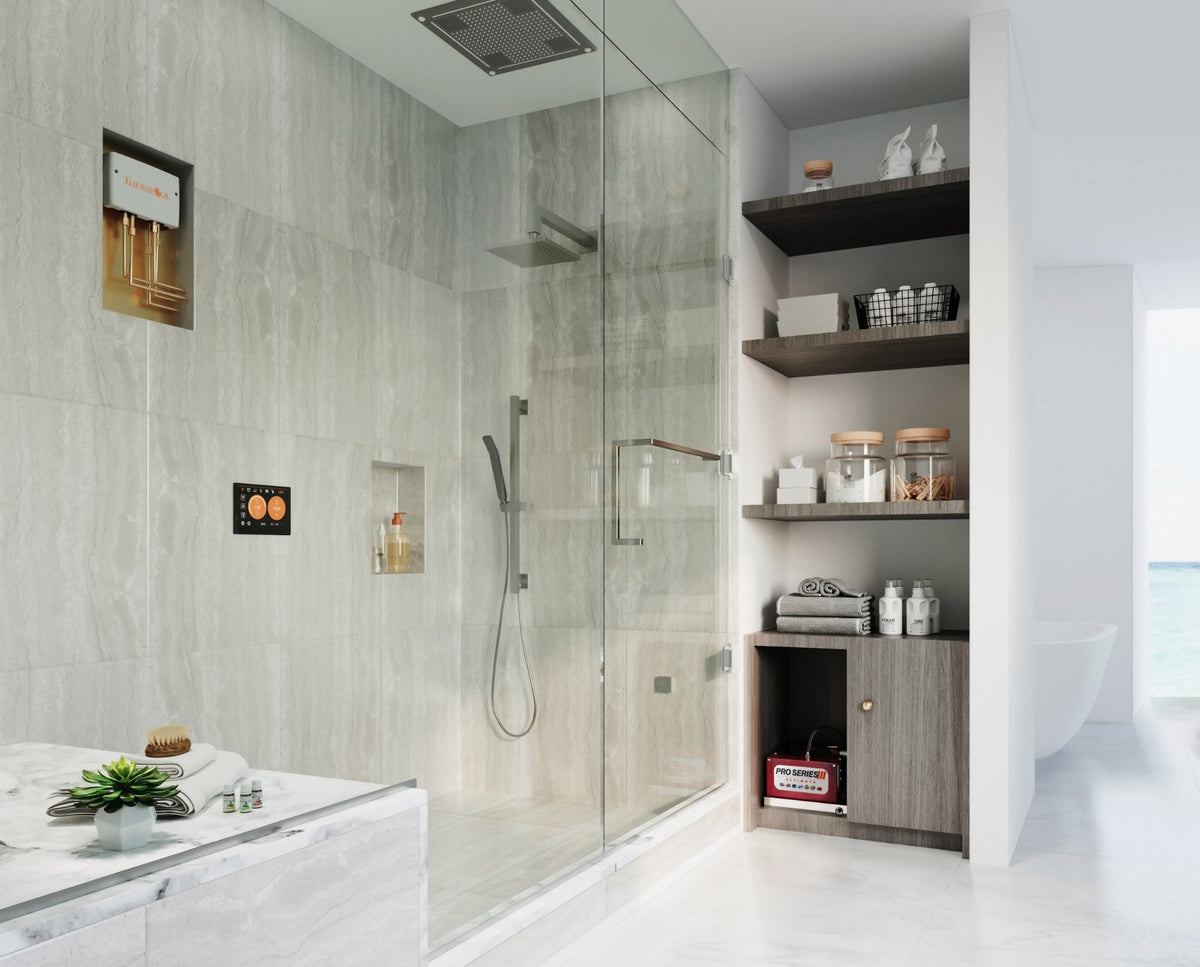

Flexible Placement: Install the generator up to 50 feet from the shower in a finished, climate-controlled space — a vanity cabinet, closet, or utility room.
Pre-Plumbed Safety Valve and Stainless Steel Drain Pan: Included for a cleaner, code-conscious installation.

Specifications

Product	ThermaSol PRO Series III Steam Generator
Series	PRO Series III (Ultimate Series III)
Application	Residential steam shower
Available Outputs	6kW, 8kW, 10kW, 11kW, 15kW, 20kW, 24kW
Maximum Enclosure Size	84, 140, 240, 395, 575, 750, or 1,200 cubic feet (by model)
Input Voltage	208–240 VAC, single phase, dedicated circuit
Electrical Connection	PROIII-84: NEMA 6-30P plug · PROIII-140 / 240: NEMA 6-50P plug · PROIII-395 and larger: hardwired
Water Inlet	3/8" compression
Steam Outlet	1/2" NPT
Drain Pan Connection	3/4" NPT
Safety Valve	Pre-plumbed
Tank Construction	Stainless steel, split-tank design
Unit Dimensions	23" W × 18" D × 14" H
Unit Weight	44 lbs (PROIII-84 through PROIII-395) · 48 lbs (PROIII-575 through PROIII-1200)
Required Clearance	Minimum 6" wall clearance on all sides; 6" front-panel access
Maximum Distance from Shower	Up to 50 feet
Control Compatibility	ThermaSol residential steam controls (CAN-bus), sold separately
Country of Origin	Designed, engineered, and built in the U.S.A.
Warranty	Lifetime factory warranty (parts and labor at factory); 2-year in-home warranty

What's Included

ThermaSol PRO Series III steam generator (selected size)
Stainless steel drain pan
Pre-plumbed safety valve
208–240 V power cord, 5 ft (PROIII-84, PROIII-140, and PROIII-240 only)
Installation instructions

Required and sold separately: a ThermaSol steam control, such as the TT2 & Serenity Total Wellness Package. Steam heads, aromatherapy, and other fixtures are also available separately.

Shipping & Delivery

Free shipping is included for delivery within the contiguous United States (48 states).

Estimated Lead Time: Approximately 1 week from the time of order, subject to manufacturer availability
Package: 1 carton, approximately 22" × 18" × 14", 44–48 lbs depending on model
Tracking information is provided once your order ships

Please inspect the shipment upon arrival and contact Prime Regeneration promptly if there is visible shipping damage or an issue with the delivered product.

Installation & Setup Notes

Professional installation by a licensed electrician and plumber is recommended; all work should follow local electrical and plumbing codes
Requires a dedicated 208–240 V single-phase circuit sized to the model's maximum amperage (see sizing table)
Install in a finished, climate-controlled space within 50 feet of the shower — never outdoors, in an attic, or in an unheated area
Maintain at least 6 inches of clearance on all sides and keep the front panel accessible for service
Plan the drain-pan connection (3/4" NPT) and the 3/8" water supply before the unit is set
A ThermaSol control must be installed for the generator to operate
Confirm enclosure volume, ceiling height, and wall materials before selecting a size — Prime Regeneration can help you verify

Warranty

The PRO Series III is backed by ThermaSol's Lifetime Factory Warranty, which includes parts and labor at the factory for the original purchaser. During the first 2 years, ThermaSol also provides an in-home warranty covering parts and labor through authorized service agents. Warranty coverage is provided according to ThermaSol's current terms and conditions.

Please note that ThermaSol's residential warranty applies to residential installations only. Residential generators installed in hotels, spas, gyms, health clubs, short-term rental properties, or other non-residential settings are not covered — please see ThermaSol's commercial PowerPak3 and Day Spa systems for those applications.

Manuals & Documentation

Returns

Returns are accepted within 30 days of delivery for eligible products that meet Prime Regeneration's return requirements. Return authorization is required before sending any item back.

To request a return, contact Prime Regeneration with your order information. Returned items must be unused, uninstalled, in original packaging, and securely packaged for return shipment.

Customers are responsible for return shipping costs unless the return is due to an error, damage, or other issue for which Prime Regeneration or the manufacturer is responsible. Applicable restocking fees may apply depending on the product, condition, and manufacturer return requirements.

Please review the Prime Regeneration Return Policy for complete eligibility requirements, exclusions, applicable fees, and return instructions.

Important Wellness Information

This product is intended for general wellness, relaxation, and recreational steam shower use. It is not intended to diagnose, treat, cure, or prevent any disease or medical condition. Information provided on this page is not medical advice.

Consult a qualified healthcare professional before using a steam shower if you are pregnant, have a medical condition, take medications that may affect heat tolerance, or have concerns about whether steam bathing is appropriate for you.

Frequently Asked Questions

Which PRO Series III size do I need?

Multiply your enclosure's interior length × width × height in feet to get cubic feet, then choose the model whose maximum room size meets or exceeds that figure. Size up one model for 9-foot ceilings and two models for 10-foot ceilings. Natural stone, tile, glass, and exterior walls add to the load — the installation manual includes the full adjustment table, and Prime Regeneration can help you confirm.

Does the PRO Series III include a control?

No. A ThermaSol control is required to operate the generator and is sold separately. The TT2 & Serenity Total Wellness Package pairs the ThermaTouch2 control, Serenity rainhead, SteamVection steam head, and Digital Shower Valve with this generator.

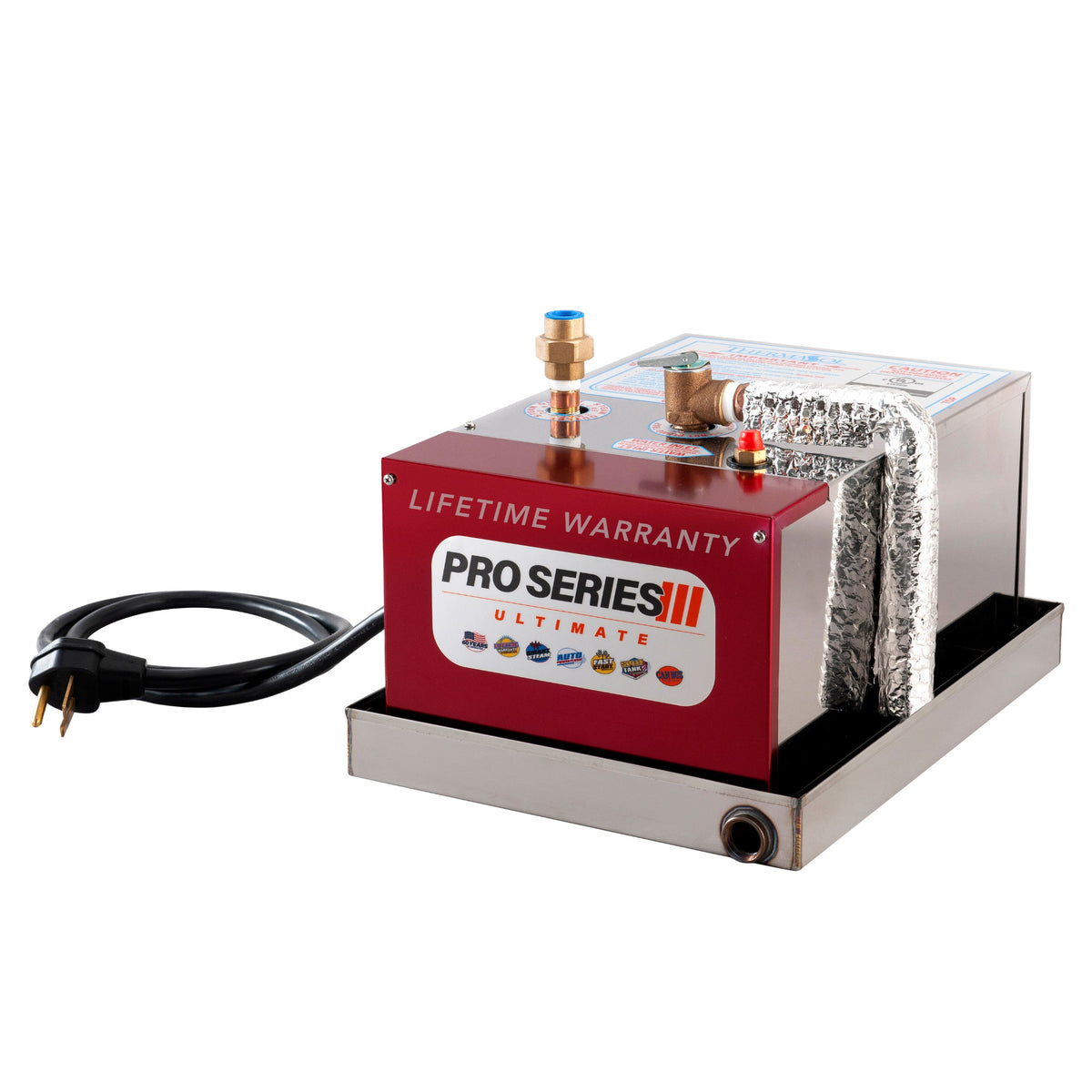

Does it come with a plug or does it need to be hardwired?

The PROIII-84 ships with a NEMA 6-30P plug and the PROIII-140 and PROIII-240 ship with a NEMA 6-50P plug, each on a 5-foot cord. The PROIII-395, 575, 750, and 1200 are hardwired. All models require a dedicated 208–240 V single-phase circuit.

How far from the shower can the generator be installed?

Up to 50 feet, in a finished, climate-controlled space with at least 6 inches of clearance on all sides and front-panel access for service.

What is the warranty?

ThermaSol provides a lifetime factory warranty (parts and labor at the factory) for the original purchaser, plus a 2-year in-home warranty covering parts and labor through authorized service agents. The residential warranty does not apply to commercial or short-term-rental installations.

Can I use the PRO Series III in a spa, gym, or rental property?

The PRO Series III is a residential generator and its warranty is limited to residential use. For commercial settings, ThermaSol offers the PowerPak3 commercial generator and the Day Spa multi-room system, both available from Prime Regeneration.

Is shipping included?

Yes. Free shipping is included for delivery within the contiguous United States.
