ThermaSol PowerPak3 Commercial Steam Generator Package | 18kW & 24kW 3-Phase
- Authorized Retailer of ThermaSol
- Full Manufacturer Warranty Included
- Financing Options Available
- U.S.-Based Customer Support
- Free Freight Shipping to the Contiguous U.S.

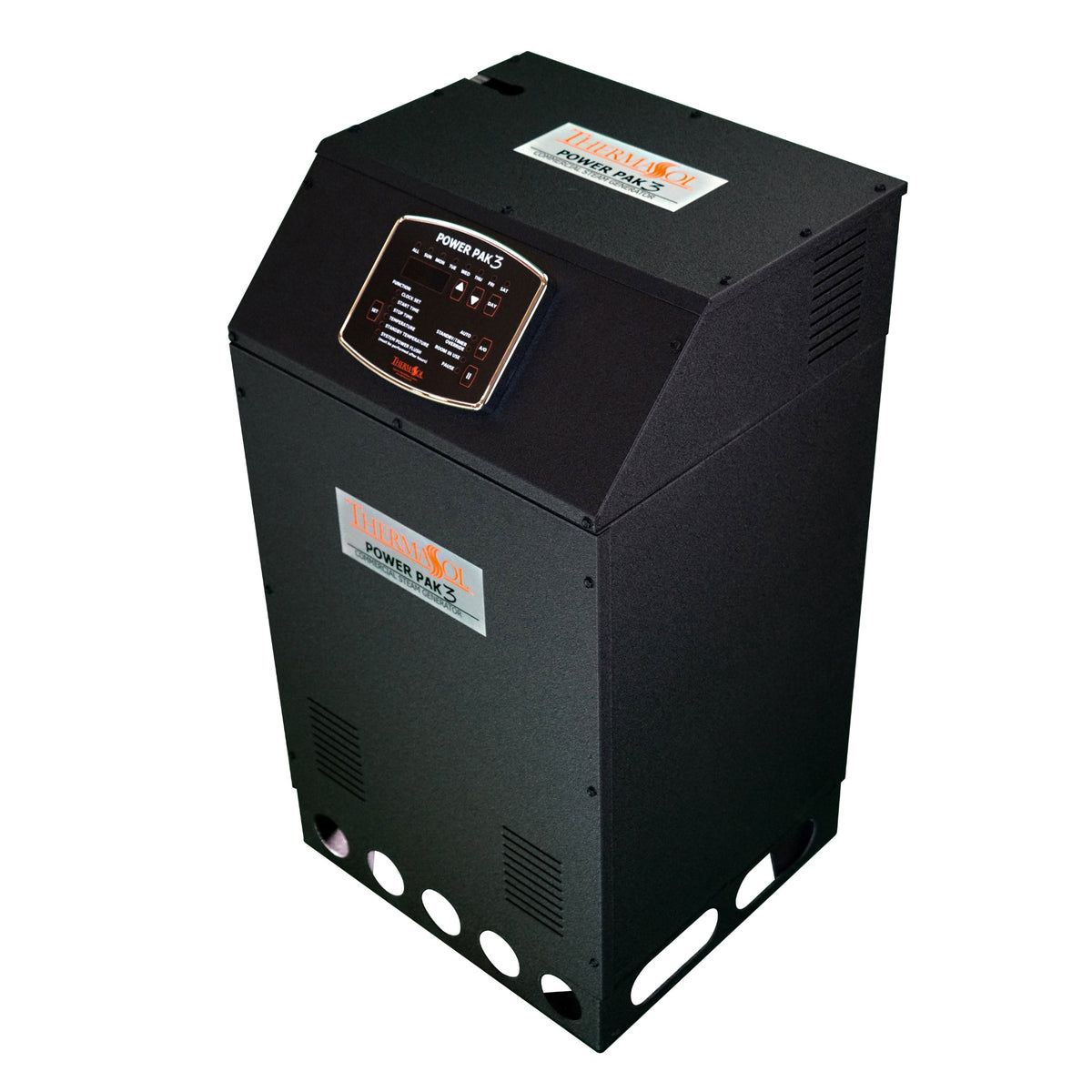

Commercial Steam Room Generator Package | 18kW or 24kW, 3-Phase | Includes Polished Chrome Control Kit
The ThermaSol PowerPak3 Commercial Steam Package is a complete commercial steam generator system for spas, health clubs, hotels, resorts, and wellness facilities. Each package pairs a fully assembled PowerPak Series III three-phase steam generator with ThermaSol's polished chrome commercial control kit — a MicroTouch remote start controller, temperature sensor with 50-foot lead wires, and a pre-installed safety valve — so the core of your steam room arrives ready for the installer.
Two generator sizes are offered: the PP3 SR (18kW) for steam rooms under 1,000 cubic feet and the PP3 LR (24kW) for steam rooms over 1,000 cubic feet, each available in 208–240 V or 480 V three-phase configurations. Both use an industrial-grade stainless steel split tank, Incoloy heating elements, a programmable PowerFlush™ cleaning cycle, and CAN-bus control communication. Front and top service access keeps routine maintenance simple in a commercial mechanical room.
Who This Is For
The PowerPak3 is built for commercial operators and the architects, engineers, and contractors who specify for them: day spas, hotel and resort spas, fitness clubs, athletic facilities, and multi-unit residential amenity spaces that need a single steam room to run reliably throughout the day. For a residential steam shower, see the ThermaSol PRO Series III; for facilities running two to four steam rooms from one generator, see the ThermaSol Day Spa Multi-Room Steam System.
Why Choose the ThermaSol PowerPak3
- Complete commercial package — generator plus polished chrome control kit
- 18kW (under 1,000 cu ft) or 24kW (over 1,000 cu ft) three-phase generator
- Available for 208–240 V or 480 V three-phase service
- Delivered fully assembled for a faster installation
- Industrial-grade stainless steel split-tank design
- Incoloy heating elements for corrosion resistance
- Programmable PowerFlush™ internal tank cleaning cycle
- 7-day programmable time and temperature scheduling with standby mode
- Self-cleaning cycle drains through the steam room's own drain — no additional drain line required
- Front and top access for streamlined servicing
- CAN-bus communication with diagnostic error-code display
- Installs up to 50 feet from the steam room without upsizing
- 18-month manufacturer parts and labor warranty
Choosing Your Configuration
| Model | Output | Steam Room Size | Voltage | Max Amperage |
|---|---|---|---|---|
| PP18SR-240 | 18kW | Under 1,000 cu ft | 208–240 VAC, 3-phase | 44 A |
| PP18SR-480 | 18kW | Under 1,000 cu ft | 480 VAC, 3-phase | 22 A |
| PP24LR-240 | 24kW | Over 1,000 cu ft | 208–240 VAC, 3-phase | 58 A |
| PP24LR-480 | 24kW | Over 1,000 cu ft | 480 VAC, 3-phase | 29 A |
Confirm your facility's three-phase service voltage with your electrician before ordering, and calculate the steam room's adjusted cubic footage (accounting for ceiling height and wall materials) using ThermaSol's installation manual. Prime Regeneration can help you confirm the right configuration for your project.
Key Features
- Commercial-Duty Construction: Stainless steel and brass wetted components inside a powder-coated steel enclosure, built for continuous daily operation.
- Split-Tank Design: Separates the heating function from the water-feed function to support efficiency and longevity.
- Incoloy Heating Elements: Selected for resistance to corrosion and wear in a commercial steam environment.
- Programmable PowerFlush™: Schedule automatic internal tank cleaning to help manage sediment and mineral buildup.
- Constant Steam at a Constant Rate: Engineered to deliver steady steam without lag or bursts.
- Programmable Digital Controls: Weekly time and temperature scheduling, standby temperature-maintenance mode, and diagnostic error-code display on the on-unit master controller.
- MicroTouch Remote Start Controller: Polished chrome in-room start control for staff or guests.
- Service Access: Front and top panel access for streamlined maintenance.
Specifications
| Product | ThermaSol PowerPak3 Commercial Steam Package (PowerPak Series III) |
| Application | Commercial steam room — single room |
| Available Outputs | 18kW (PP3 SR) or 24kW (PP3 LR) |
| Steam Room Size | 18kW: under 1,000 cubic feet · 24kW: over 1,000 cubic feet |
| Input Voltage | 208–240 VAC 3-phase or 480 VAC 3-phase (by model) |
| Maximum Amperage | PP18SR-240: 44 A · PP18SR-480: 22 A · PP24LR-240: 58 A · PP24LR-480: 29 A |
| Electrical Connection | Hardwired |
| Water Inlet | 3/8" compression |
| Steam Outlet | 1" NPT |
| Safety Valve | Pre-installed 3/4" NPT pop safety valve |
| Tank Construction | Stainless steel split tank; stainless steel and brass wetted components |
| Heating Elements | Incoloy |
| Enclosure | Powder-coated steel |
| Unit Dimensions | 19" L × 18-1/8" W × 32" H |
| Unit Weight | 120 lbs |
| Maximum Distance from Steam Room | Up to 50 feet |
| Control Kit Finish | Polished chrome |
| Warranty | 18-month manufacturer parts and labor warranty |
What's Included
- PowerPak Series III commercial steam generator (selected size and voltage), fully assembled
- On-unit master controller with programmable digital control system
- MicroTouch remote start controller, polished chrome
- Temperature sensor with 50 ft lead wires
- Pre-installed 3/4" NPT pop safety valve
- Installation instructions
Commercial steam heads, aromatherapy systems, and additional in-room controls are available separately. Contact Prime Regeneration to specify a complete steam room.
Shipping & Delivery
Free freight shipping is included for delivery within the contiguous United States (48 states).
- Estimated Lead Time: Approximately 1 week from the time of order, subject to manufacturer availability
- Package: 1 crate, approximately 23" × 23" × 37", 120 lbs
- Shipping Method: LTL freight — please plan for equipment or personnel to move the 120 lb unit to the mechanical room
- Tracking information is provided once your order ships
Please inspect the shipment upon arrival and note any damage on the delivery receipt before signing. Contact Prime Regeneration promptly if there is visible shipping damage or an issue with the delivered product.
Installation & Setup Notes
- Installation by a licensed electrician and licensed plumber is required; all work must adhere to local plumbing and electrical codes
- Requires a dedicated three-phase circuit sized to the model's maximum amperage — confirm 208–240 V or 480 V service before ordering
- Install in a mechanical room or equipment space within 50 feet of the steam room; the unit must remain fully accessible for service and maintenance
- Plan the 3/8" water supply, 1" NPT steam line, and safety-valve routing before the unit is set
- The PowerFlush cleaning cycle drains through the steam room's drain; no separate drain line is required
- Route the temperature-sensor lead wires (50 ft) from the generator to the steam room during rough-in
Warranty
The PowerPak Series III is covered by ThermaSol's 18-month limited warranty for parts and labor from the date of purchase. Warranty coverage is provided according to ThermaSol's current commercial warranty terms and conditions; contact Prime Regeneration with any warranty questions.
Manuals & Documentation
- PowerPak Series III Installation & Operation Manual (PDF)
- PP18SR-240 Spec Sheet (18kW, 208–240 V)
- PP18SR-480 Spec Sheet (18kW, 480 V)
- PP24LR-240 Spec Sheet (24kW, 208–240 V)
- PP24LR-480 Spec Sheet (24kW, 480 V)
Returns
Returns are accepted within 30 days of delivery for eligible products that meet Prime Regeneration's return requirements. Return authorization is required before sending any item back.
To request a return, contact Prime Regeneration with your order information. Returned items must be unused, uninstalled, in original packaging, and securely packaged for return shipment.
Customers are responsible for return shipping costs unless the return is due to an error, damage, or other issue for which Prime Regeneration or the manufacturer is responsible. Applicable restocking fees may apply depending on the product, condition, and manufacturer return requirements.
Please review the Prime Regeneration Return Policy for complete eligibility requirements, exclusions, applicable fees, and return instructions.
Important Wellness Information
This product is intended for general wellness, relaxation, and recreational steam room use. It is not intended to diagnose, treat, cure, or prevent any disease or medical condition. Information provided on this page is not medical advice.
Facility operators should post appropriate steam room use guidelines. Individuals who are pregnant, have a medical condition, or take medications that may affect heat tolerance should consult a qualified healthcare professional before using a steam room.
Frequently Asked Questions
What is the difference between the PP3 SR and PP3 LR?
The SR is the 18kW generator for steam rooms under 1,000 cubic feet; the LR is the 24kW generator for steam rooms over 1,000 cubic feet. Both are available in 208–240 V or 480 V three-phase versions.
Is a control included?
Yes. Each package includes the on-unit programmable master controller, a polished chrome MicroTouch remote start controller for the steam room, and a temperature sensor with 50-foot lead wires.
Does the PowerPak3 need its own drain line?
No. The self-cleaning PowerFlush cycle drains through the steam room's existing drain, so no additional drain line is required.
How far from the steam room can the generator be installed?
Up to 50 feet without upsizing the generator. The unit must remain fully accessible for service.
Is the PowerPak3 suitable for residential use?
The PowerPak3 is designed for commercial facilities with three-phase electrical service. For a home steam shower, the PRO Series III is the appropriate generator.
Is shipping included?
Yes. Free freight shipping is included for delivery within the contiguous United States.
