Steam Generator Sizing Guide
Steam Generator Sizing Guide
Last Updated: April 2026
Choosing the right steam generator is one of the most important steps in building a steam shower that performs properly. A unit that is too small may struggle to fill the room with steam efficiently, while an oversized unit can add unnecessary cost and electrical demand. This guide helps you calculate your steam room size, account for materials and installation conditions, and match your space to the right steam generator size.
Why Steam Generator Sizing Matters
Steam shower performance depends on more than just the square footage of the room. Ceiling height, wall materials, insulation, glass, exterior exposure, and overall room design all affect how much steam output is needed. Proper sizing helps deliver faster steam production, more consistent comfort, and better long-term efficiency.

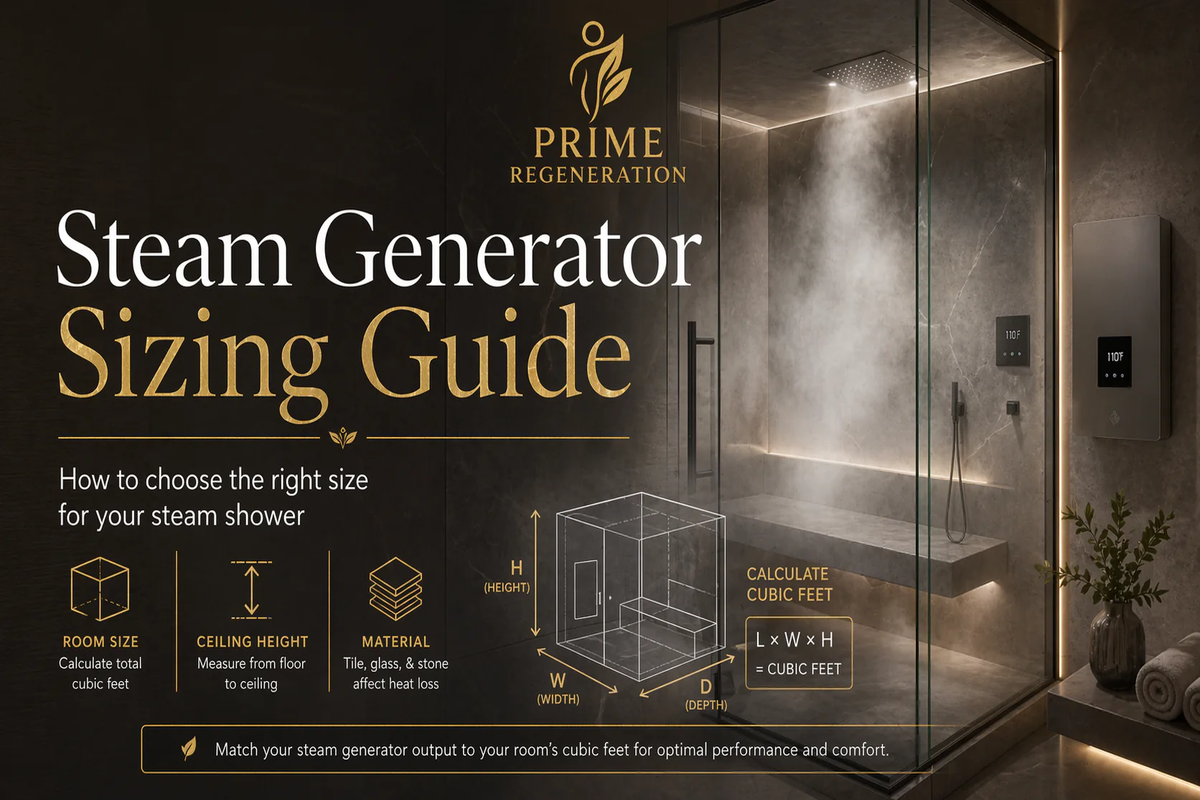

Step 1: Calculate Your Steam Room's Cubic Footage
Length × Width × Height = Cubic Feet
Example: 4 ft × 5 ft × 8 ft = 160 cubic feet
Step 2: Adjust for Wall and Room Materials
| Wall / Room Material | Recommended Multiplier |
|---|---|
| Ceramic or Porcelain Tile | × 1.0 |
| Natural Stone (Marble, Granite, Slate) | × 1.5 |
| Glass Block Walls | × 1.25 |
| Acrylic or Fiberglass | × 0.9 |
| Outdoor or Unheated Space | × 1.25 |
Example: 160 cu. ft. × 1.5 for natural stone = 240 adjusted cubic feet
Step 3: Consider Additional Sizing Factors
- Ceiling height over 8 feet: Taller spaces require more output.
- Exterior walls or colder climates: Add a 1.1× to 1.25× adjustment.
- Large glass enclosures: Glass increases heat loss, especially in frameless designs.
- When in doubt, size up slightly: Better to have a little extra capacity than a unit that struggles.
General Steam Generator Sizing Chart
| Adjusted Cubic Footage | Recommended Generator Size |
|---|---|
| Up to 100 cu. ft. | 5–7 kW |
| 100–200 cu. ft. | 7–9 kW |
| 200–350 cu. ft. | 9–13 kW |
| 350–500 cu. ft. | 13–15 kW |
| 500–700 cu. ft. | 15–18 kW |
| 700–900 cu. ft. | 18–22 kW |
| 900+ cu. ft. | 22–30 kW or dual-generator setup |
Shop Steam Generators
Not sure which generator is right for your space? Contact Our Team for Help with Sizing
