One Commercial Steam Generator for 2, 3, or 4 Steam Rooms | 10kW to 20kW | Polished Chrome Control Kits Included

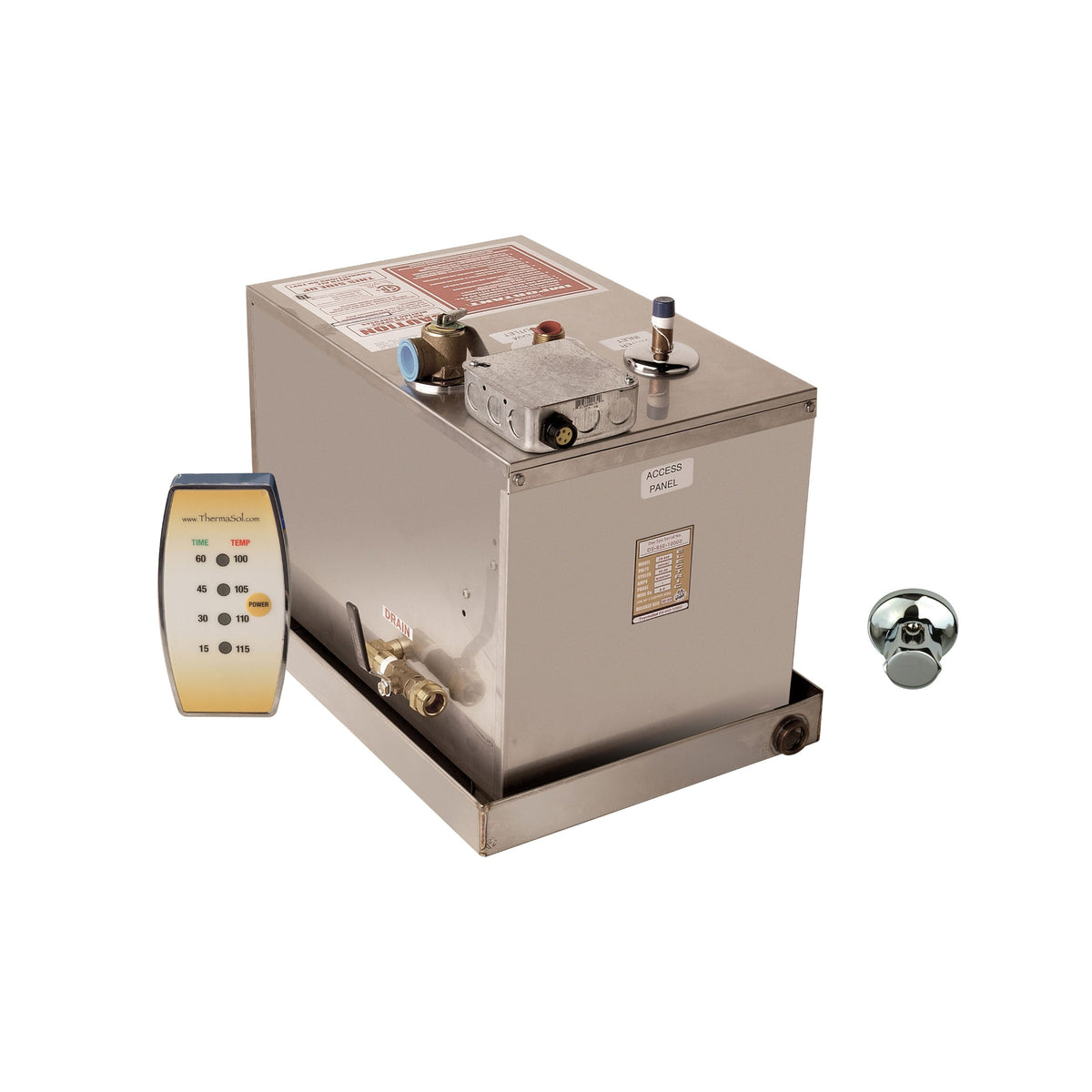

The ThermaSol Day Spa Multi-Room Steam System lets a spa, salon, wellness studio, or boutique hotel run two, three, or four separate steam rooms from a single compact generator. A Steam Distribution System Module routes steam to each room independently or simultaneously, and every room gets its own polished chrome in-room control and steam head — so guests in different rooms can start and enjoy steam on their own schedule.

Choose the number of rooms (2, 3, or 4) and the generator size that matches the volume of each room: 10kW for rooms up to 150 cubic feet, 12kW up to 250 cubic feet, 16kW up to 400 cubic feet, or 20kW up to 650 cubic feet. Every Day Spa generator is built with stainless steel construction throughout, a split-tank design, ThermaSol's SmartSteam™ output control, and the PowerFlush™ cleaning system, and it can be installed up to 50 feet from the rooms it serves.

Who This Is For

The Day Spa system is designed for commercial facilities with multiple private steam rooms — day spas, med-spa and salon suites, boutique hotels, and wellness clubs — where one generator in a mechanical room is easier to install and maintain than a separate unit for every room. For a single large commercial steam room, see the ThermaSol PowerPak3 Commercial Steam Package; for a home steam shower, see the ThermaSol PRO Series III.

Why Choose the ThermaSol Day Spa System

One generator serves 2, 3, or 4 steam rooms, independently or at the same time
Four generator sizes — 10kW, 12kW, 16kW, and 20kW — for rooms from 150 to 650 cubic feet each
Polished chrome in-room control and steam head included for every room
Steam Distribution System Module included
Stainless steel construction throughout with split-tank design
SmartSteam™ output control for constant steam at a constant rate
PowerFlush™ cleaning system helps manage sediment and mineral buildup
Compact footprint — approximately 18-3/4" × 13-3/4" × 16"
Installs up to 50 feet from the steam rooms without upsizing
Optional Day Spa Master Control monitors all rooms from one wall-mounted panel
Designed, engineered, and built in the U.S.A.

Choosing Your Configuration

First count the rooms the generator will serve (2, 3, or 4). Then calculate the volume of the largest room — interior length × width × height in feet — and choose the generator size whose maximum room size meets or exceeds it. ThermaSol's manual adjusts these figures for ceilings over 8 feet and for materials such as tile, stone, and glass, so please confirm sizing with the installation manual or with Prime Regeneration before ordering.

Generator Size	Max Size per Room	Voltage	Amperage	Breaker
10kW (DS-x-150)	150 cu ft	208–240 VAC, single phase	46 A	50 A
12kW (DS-x-250)	250 cu ft	208–240 VAC, single phase	56 A	60 A
16kW (DS-x-400)	400 cu ft	208–240 VAC, single phase	40 A / 40 A (two circuits)	40 A / 40 A
20kW (DS-x-650)	650 cu ft	208–240 VAC, single phase	46 A / 46 A (two circuits)	50 A / 50 A

Model numbers follow the pattern DS-[rooms]-[size]: for example, DS-3-250 is the 12kW generator configured for three rooms. The 16kW and 20kW generators require two independent electrical circuits.

Key Features

Multi-Room Steam Distribution: The included Steam Distribution System Module directs steam to each room on demand, so rooms can run independently or simultaneously.
In-Room Controls for Every Room: Each room receives its own polished chrome time-and-temperature control and steam head.
Stainless Steel Throughout: Industrial-grade stainless steel construction inside and out, with a split-tank design that separates heating from water feed.
SmartSteam™: Monitors power output to deliver constant steam at a constant rate.
PowerFlush™: Built-in tank cleaning cycle to help manage sediment and extend generator life.
Built-In Temperature Sensor and Safety Valve: Pre-installed for a cleaner installation.
Compact, Flexible Placement: Small footprint and a 50-foot installation range make it easy to locate in a mechanical closet.

Specifications

Product	ThermaSol Day Spa Multi-Room Steam System
Application	Commercial — 2, 3, or 4 steam rooms from one generator
Available Outputs	10kW, 12kW, 16kW, 20kW
Maximum Size per Room	150, 250, 400, or 650 cubic feet (by generator size)
Input Voltage	208–240 VAC, single phase
Amperage / Breaker	10kW: 46 A / 50 A · 12kW: 56 A / 60 A · 16kW: 40/40 A on two circuits · 20kW: 46/46 A on two 50 A circuits
Electrical Connection	IEC 309
Water Inlet	3/8" compression
Steam Outlet	3/4" NPT
Drain Pan Connection	3/4" NPT
Safety Valve	3/4" NPT
Tank Construction	Stainless steel throughout, split-tank design
Generator Dimensions	Approximately 18-3/4" L × 13-3/4" W × 16" H
Generator Weight	46 lbs
Maximum Distance from Steam Rooms	Up to 50 feet
Control Finish	Polished chrome
Country of Origin	Designed, engineered, and built in the U.S.A.
Warranty	18-month limited manufacturer warranty

What's Included

ThermaSol Day Spa steam generator (selected size)
Steam Distribution System Module
Polished chrome in-room time-and-temperature controls — one per room (2, 3, or 4)
Polished chrome steam heads — one per room (2, 3, or 4)
Stainless steel drip pan
Hardware kit
Installation manual

The optional Day Spa Master Control (DS-SEN-PC) — a wall-mounted panel that monitors all rooms with in-use indicators — is sold separately.

Shipping & Delivery

Free shipping is included for delivery within the contiguous United States (48 states).

Lead Time: Typically ships promptly from the manufacturer, subject to availability
Package: Ships in 3 cartons, approximately 80–94 lbs total depending on configuration
Tracking information is provided once your order ships

Please inspect the shipment upon arrival and contact Prime Regeneration promptly if there is visible shipping damage or an issue with the delivered product.

Installation & Setup Notes

Installation by a licensed electrician and licensed plumber is required; all work must adhere to local plumbing and electrical codes
Requires dedicated 208–240 V single-phase service sized to the generator: one circuit for the 10kW and 12kW models, two independent circuits for the 16kW and 20kW models
Install in a mechanical room or equipment closet within 50 feet of the steam rooms, with service access maintained
Plan the 3/8" water supply, 3/4" NPT steam line to the distribution module, drain pan, and safety-valve routing before the unit is set
Run control wiring from the generator to each in-room control location during rough-in
Confirm room volumes, ceiling heights, and wall materials against the installation manual before selecting a generator size — Prime Regeneration can help you verify

Warranty

The Day Spa steam generator is covered by ThermaSol's 18-month limited commercial warranty from the date of purchase. Included ThermaSol controls carry their own manufacturer coverage. Warranty coverage is provided according to ThermaSol's current terms and conditions; contact Prime Regeneration with any warranty questions.

Manuals & Documentation

Returns

Returns are accepted within 30 days of delivery for eligible products that meet Prime Regeneration's return requirements. Return authorization is required before sending any item back.

To request a return, contact Prime Regeneration with your order information. Returned items must be unused, uninstalled, in original packaging, and securely packaged for return shipment.

Customers are responsible for return shipping costs unless the return is due to an error, damage, or other issue for which Prime Regeneration or the manufacturer is responsible. Applicable restocking fees may apply depending on the product, condition, and manufacturer return requirements.

Please review the Prime Regeneration Return Policy for complete eligibility requirements, exclusions, applicable fees, and return instructions.

Important Wellness Information

This product is intended for general wellness, relaxation, and recreational steam room use. It is not intended to diagnose, treat, cure, or prevent any disease or medical condition. Information provided on this page is not medical advice.

Facility operators should post appropriate steam room use guidelines. Individuals who are pregnant, have a medical condition, or take medications that may affect heat tolerance should consult a qualified healthcare professional before using a steam room.

Frequently Asked Questions

Can all rooms run at the same time?

Yes. The Steam Distribution System Module allows the rooms to operate independently or simultaneously from the single generator.

How do I choose between the 10kW, 12kW, 16kW, and 20kW generators?

Size the generator to the largest room it will serve: 10kW for rooms up to 150 cubic feet, 12kW up to 250, 16kW up to 400, and 20kW up to 650 cubic feet per room, with adjustments for ceilings over 8 feet and for tile, stone, or glass surfaces per the installation manual.

What controls are included?

Each room receives a polished chrome in-room time-and-temperature control and a polished chrome steam head. The optional Day Spa Master Control adds a central wall-mounted panel that shows which rooms are in use.

What electrical service is required?

208–240 V single phase. The 10kW and 12kW generators use one dedicated circuit (50 A and 60 A breakers respectively); the 16kW and 20kW generators require two independent circuits.

How far can the generator be from the rooms?

Up to 50 feet without upsizing the generator.

Is shipping included?

Yes. Free shipping is included for delivery within the contiguous United States.
