Steam Head Kit | ThermaSol SignaTouch + SteamVection

The ThermaSol SignaTouch + SteamVection Kit combines the compact 5-inch SignaTouch touchscreen with a SteamVection steam head in a matching finish — a coordinated pair for a PRO Series III steam shower that wants lighting and audio control without a large display. Choose the wall-mount SignaTouch with a round steam head in any of 15 finishes, or the recessed SignaTouch (black trim) with a square steam head in the finish of your choice.

The SignaTouch controls steam temperature and session duration, chromatherapy lighting, and audio, stores two user profiles, and connects by Bluetooth® to ThermaSol HydroVive and Serenity rainheads. The SteamVection steam head distributes steam evenly from floor to ceiling with a built-in essential-oil reservoir for aromatherapy. For the control on its own, see the SignaTouch Control.

Who This Is For

Homeowners who want a refined touchscreen with lighting and audio control and a matching steam head in one order — a step up from the steam-only MicroTouch kit without the size and entertainment features of the ThermaTouch2 kit.

Why Choose the SignaTouch + SteamVection Kit

SignaTouch 5" control plus SteamVection steam head in a matching finish

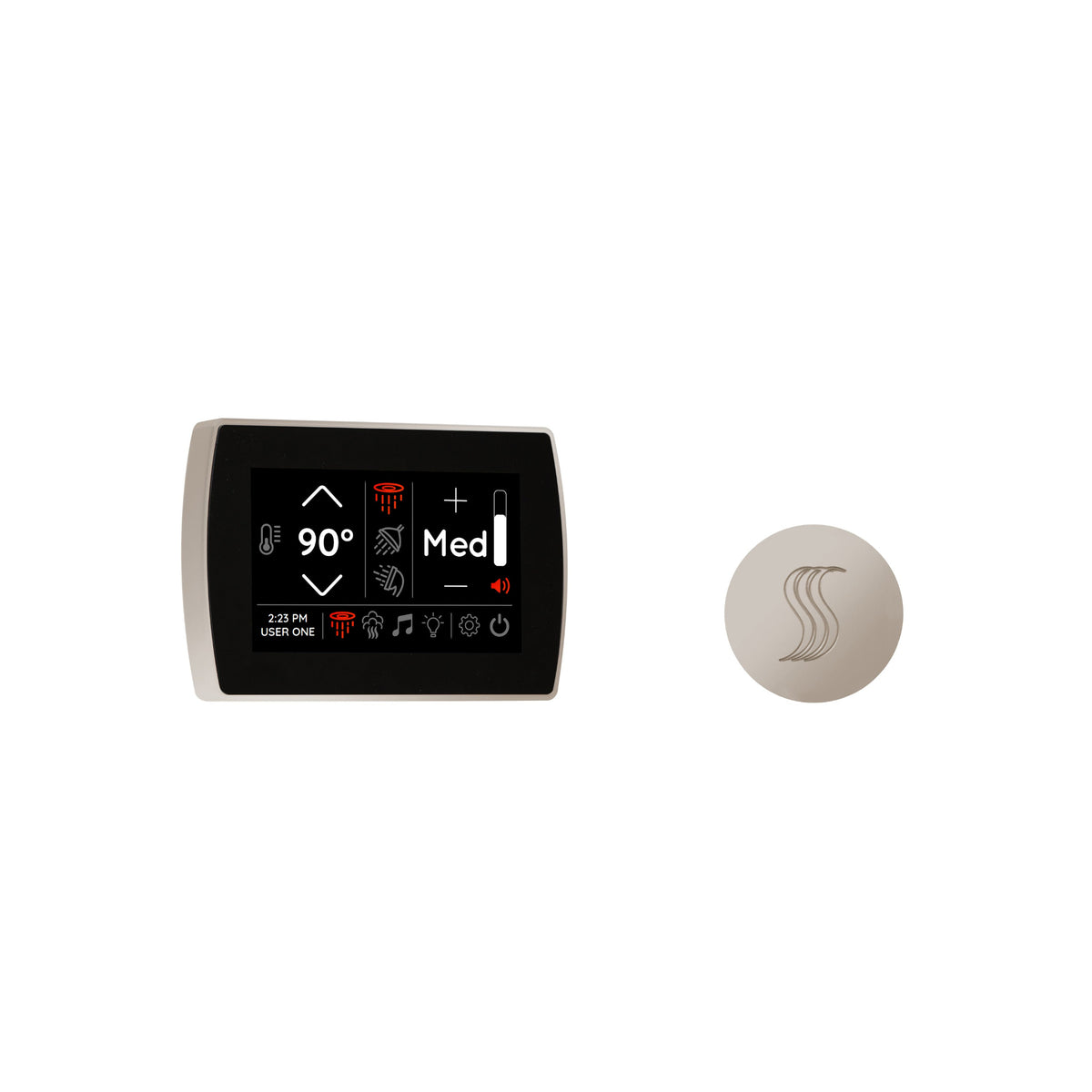

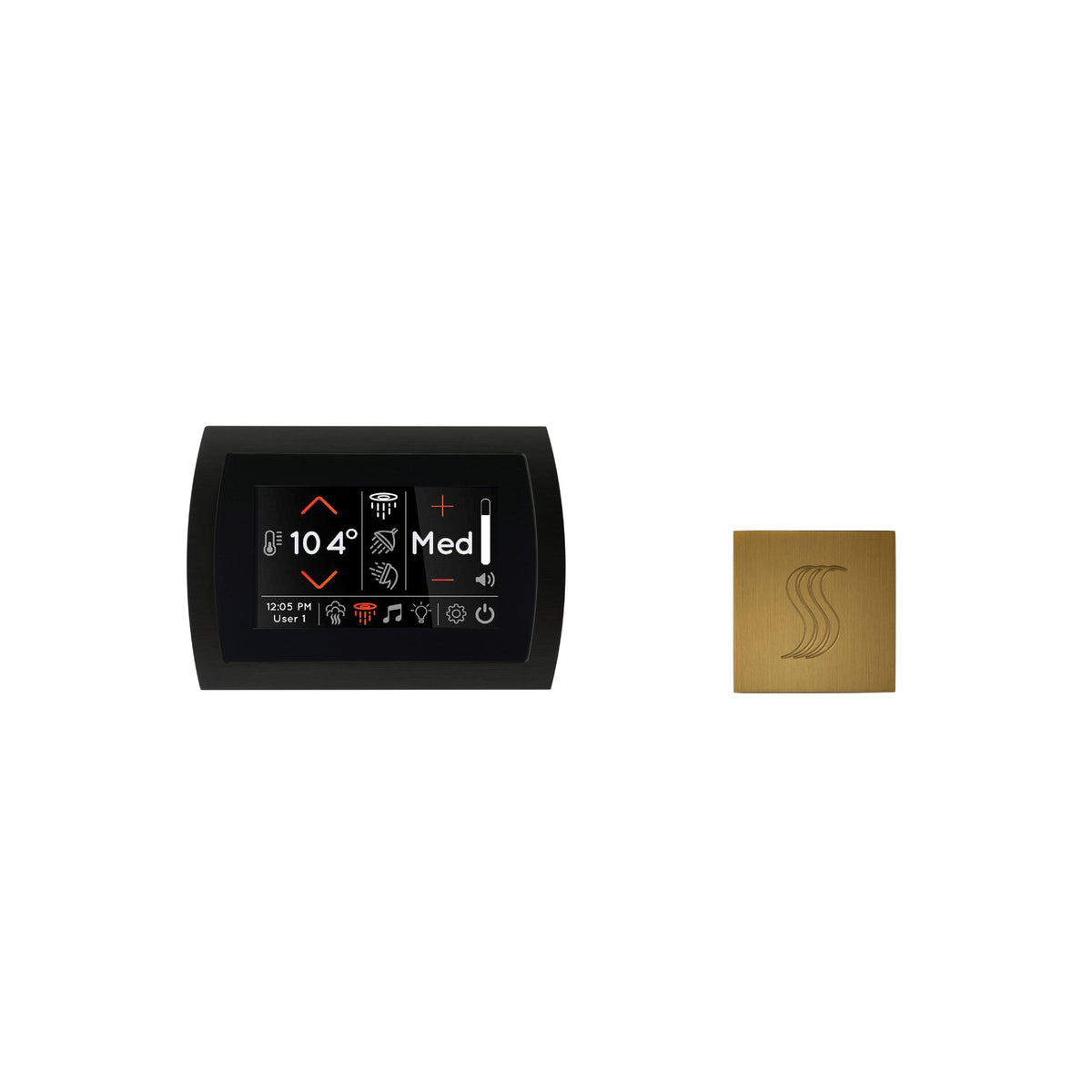

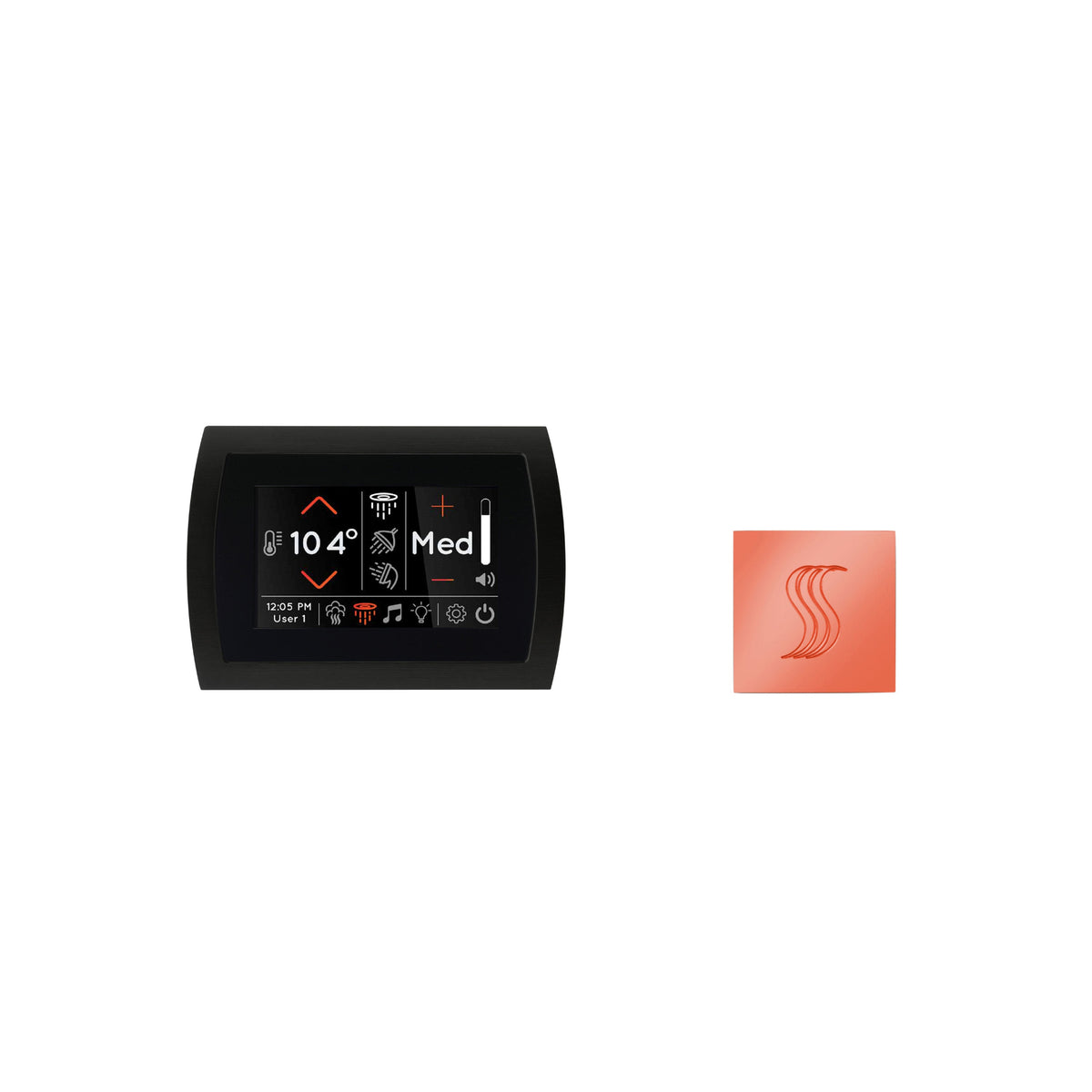

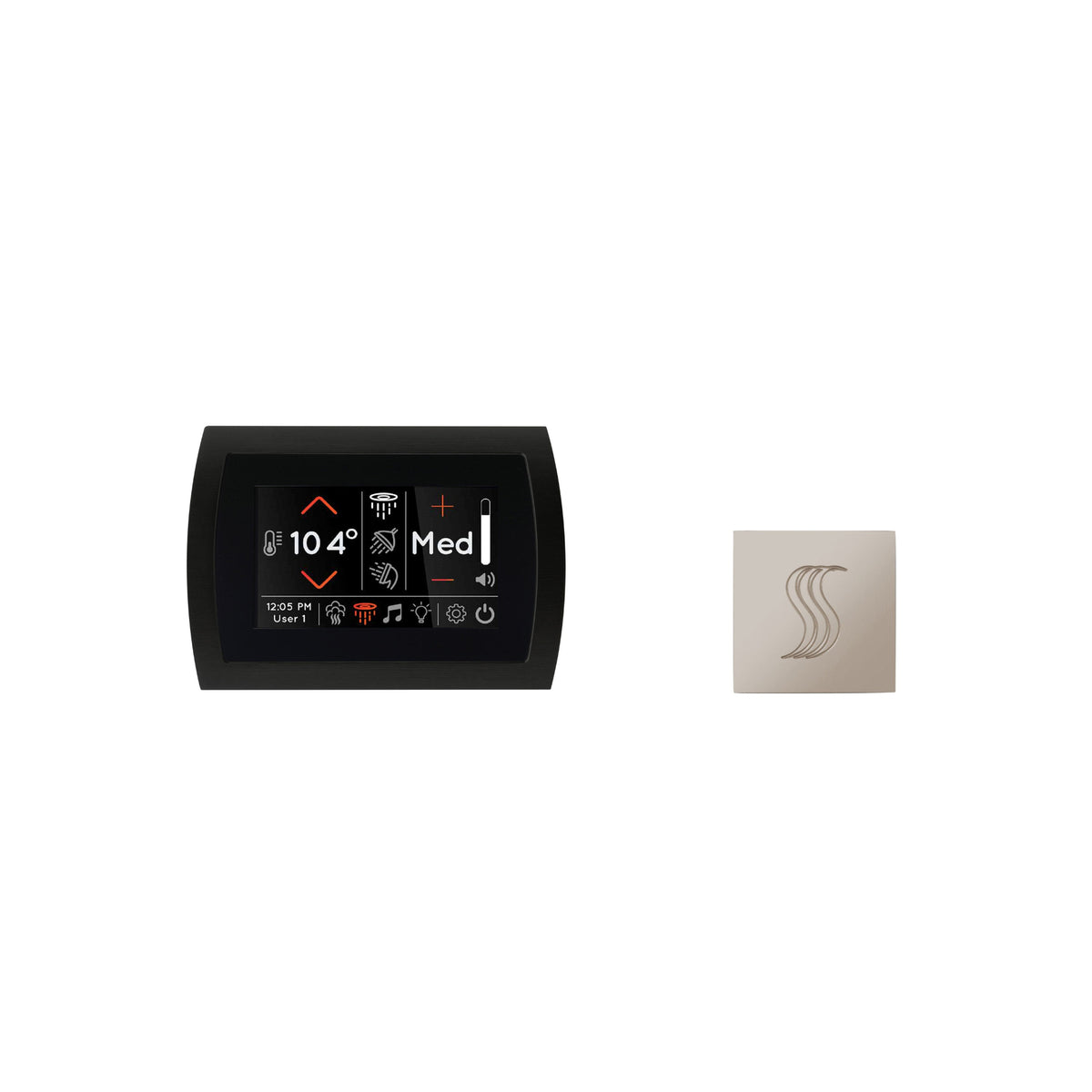

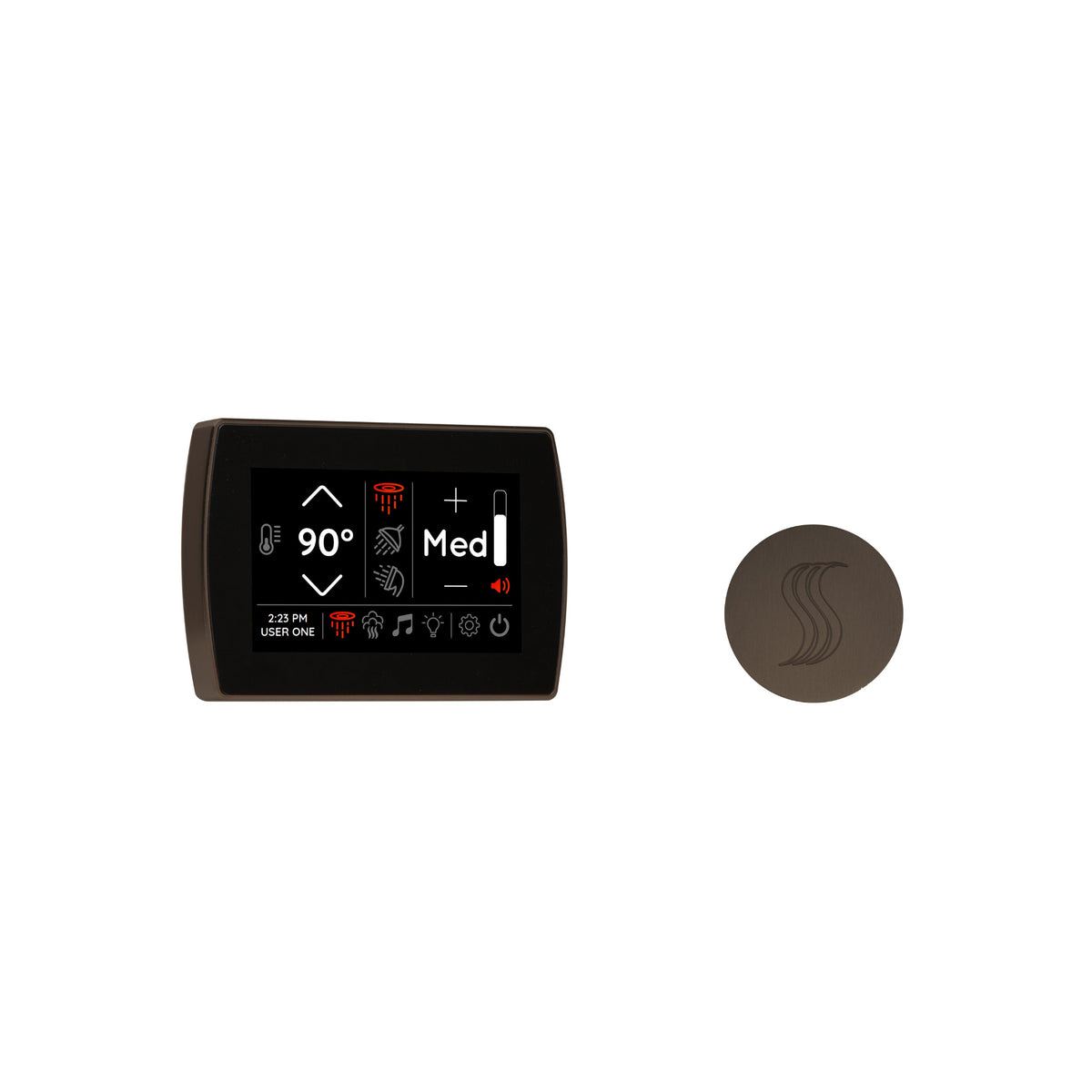

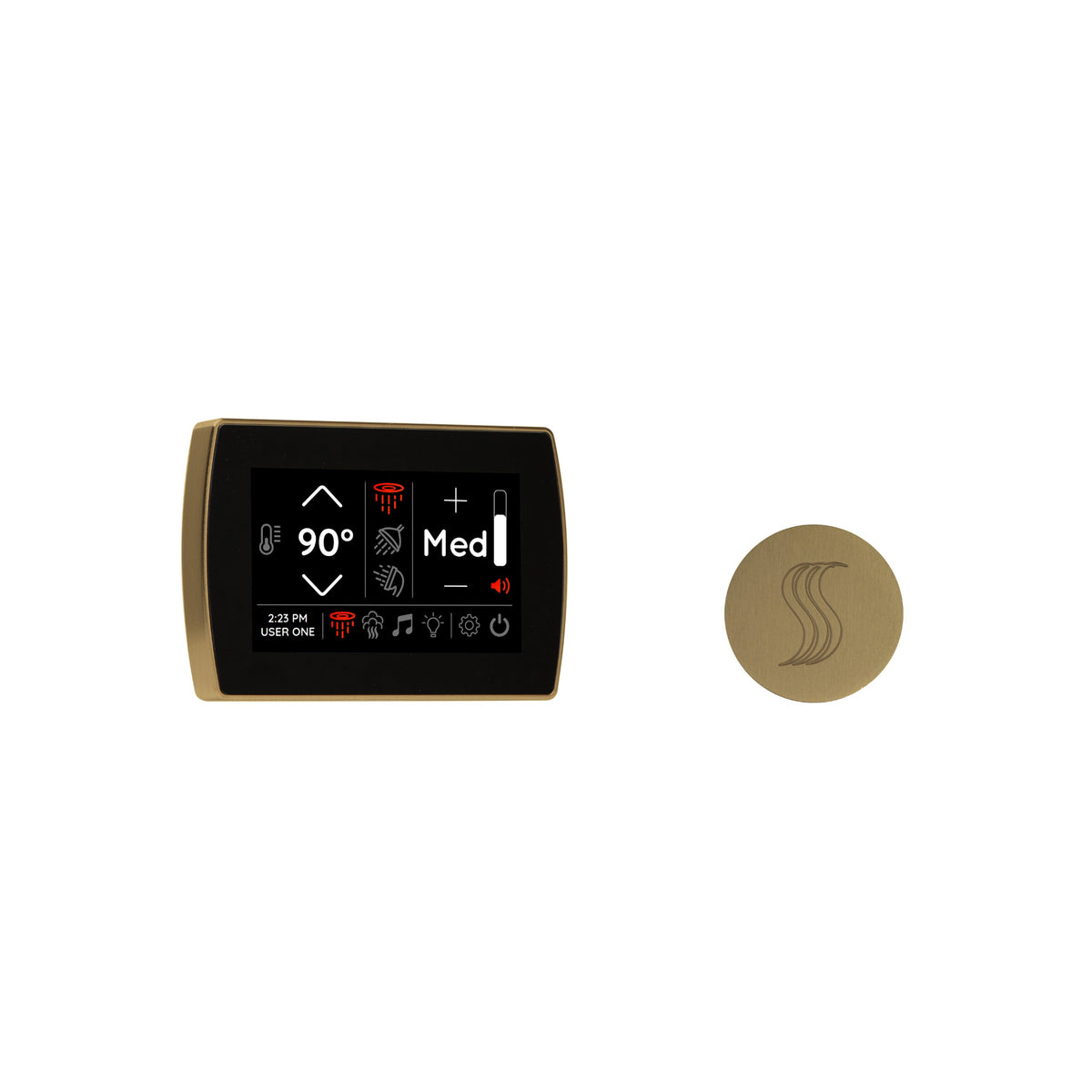

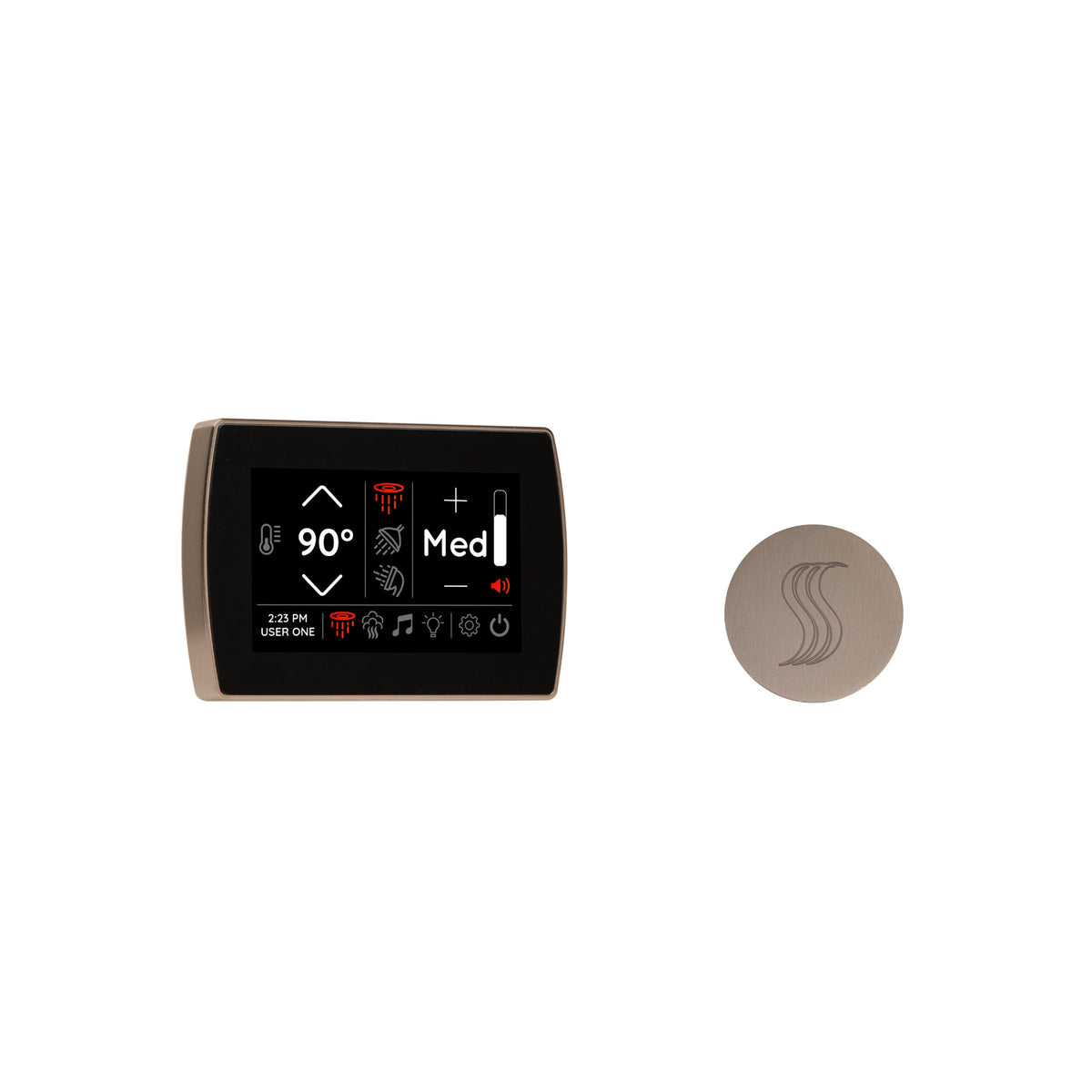

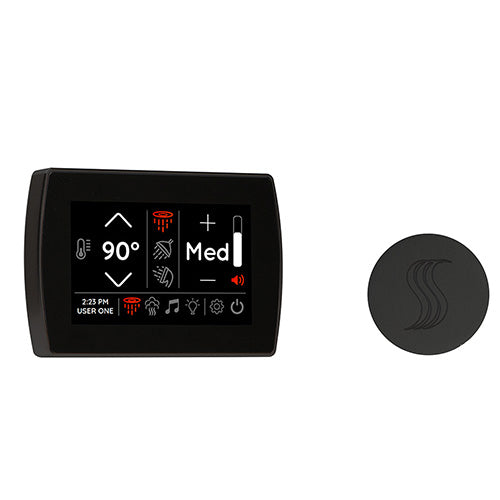

Wall-mount control with round steam head, or recessed control with square steam head

15 finishes: Antique Brass, Antique Copper, Antique Nickel, Black Nickel, Copper, Matte Black, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Polished Gold, Polished Nickel, Satin Brass, Satin Chrome, Satin Nickel, White (on the recessed kit the finish applies to the steam head; the recessed control is black trim)

5" full-color capacitive touchscreen (480 × 800)

Controls steam, chromatherapy lighting, and audio; two user profiles

Integrated Bluetooth® for HydroVive, Serenity Advanced, and Serenity Essential rainheads

Billet 6061 aluminum construction; installs vertically or horizontally

SteamVection convection technology for even floor-to-ceiling steam

Built-in aromatherapy reservoir in the steam head

2-year warranty on the control; 5-year warranty on the steam head

Choosing Your Kit

Kit	Control	Control Face	Rough-In	Steam Head

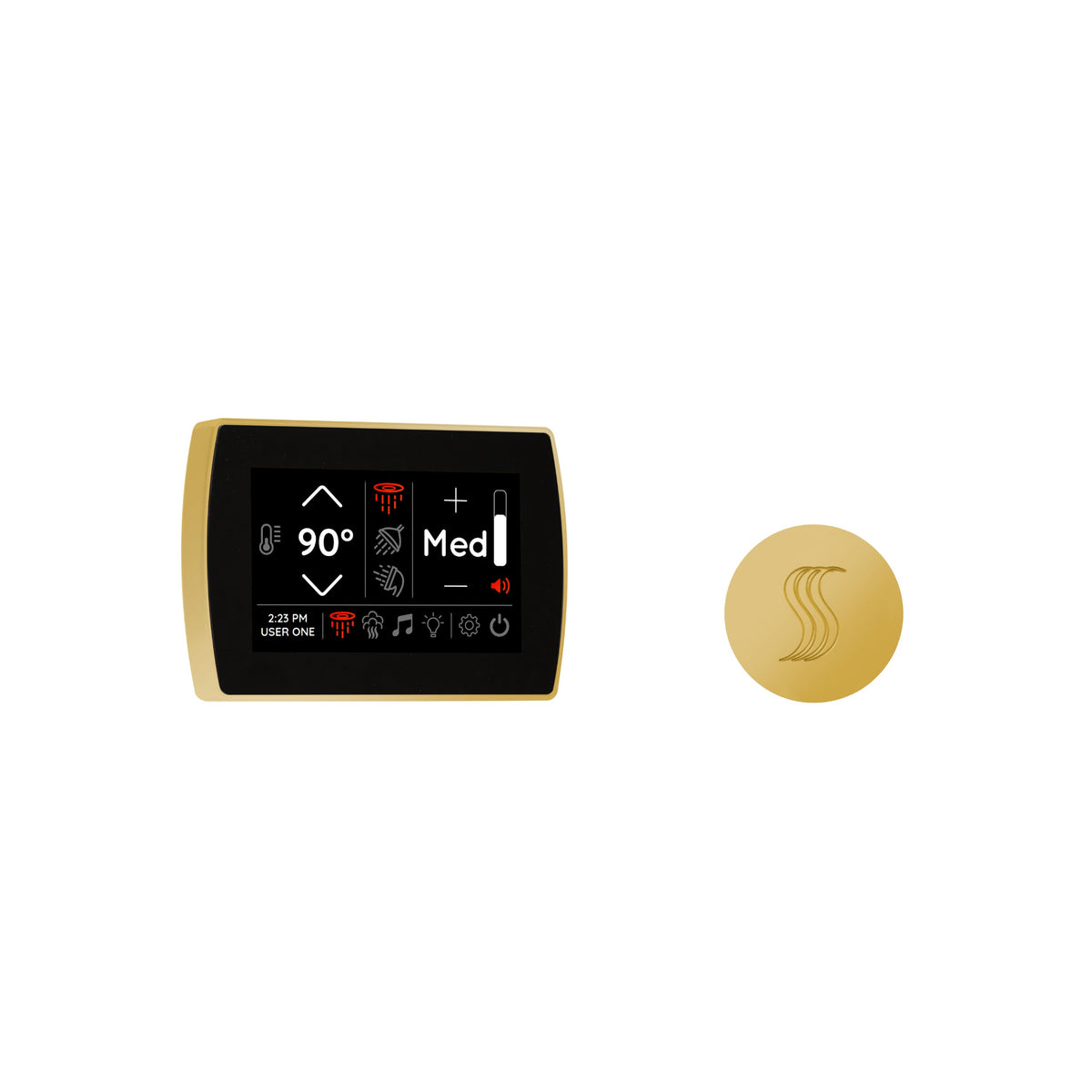

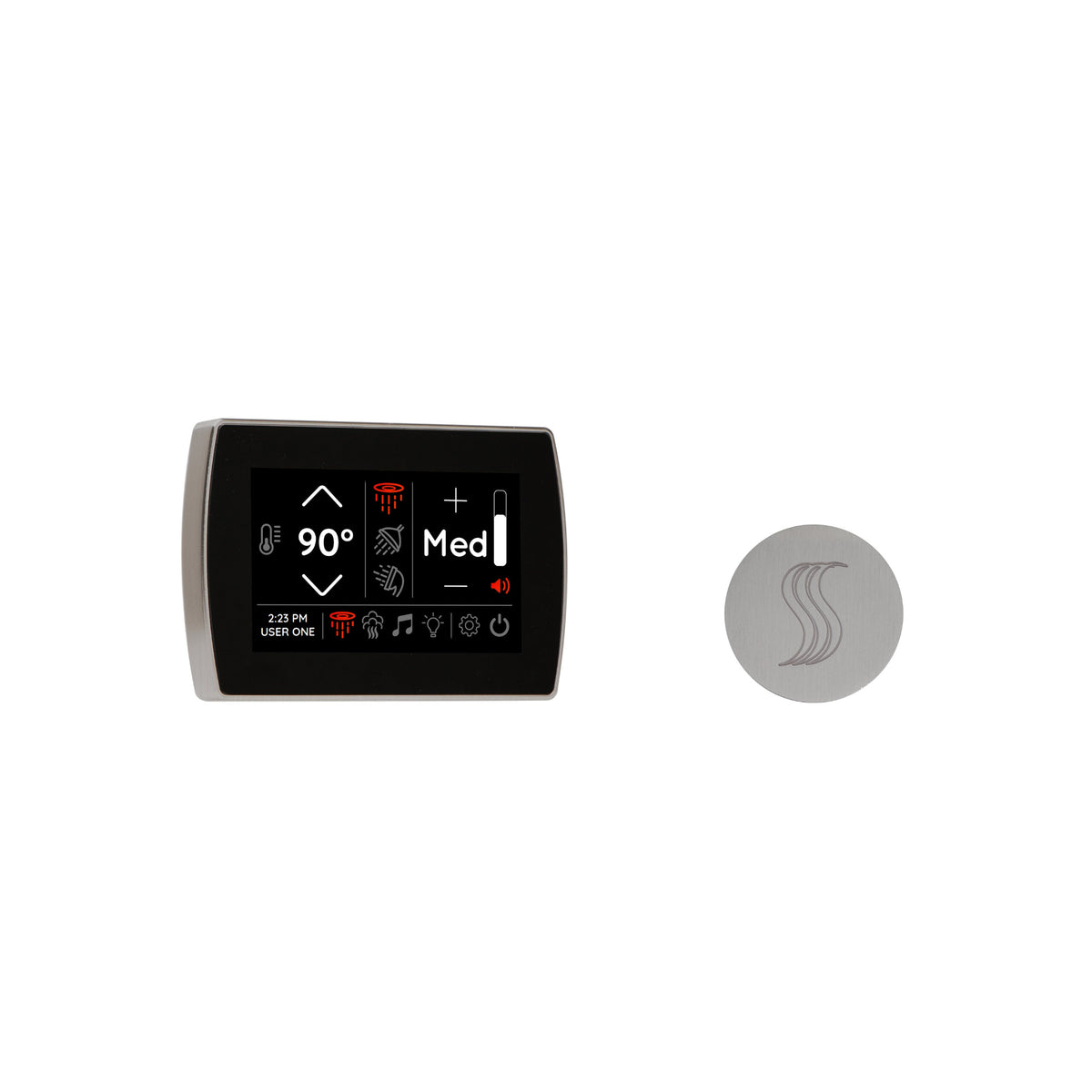

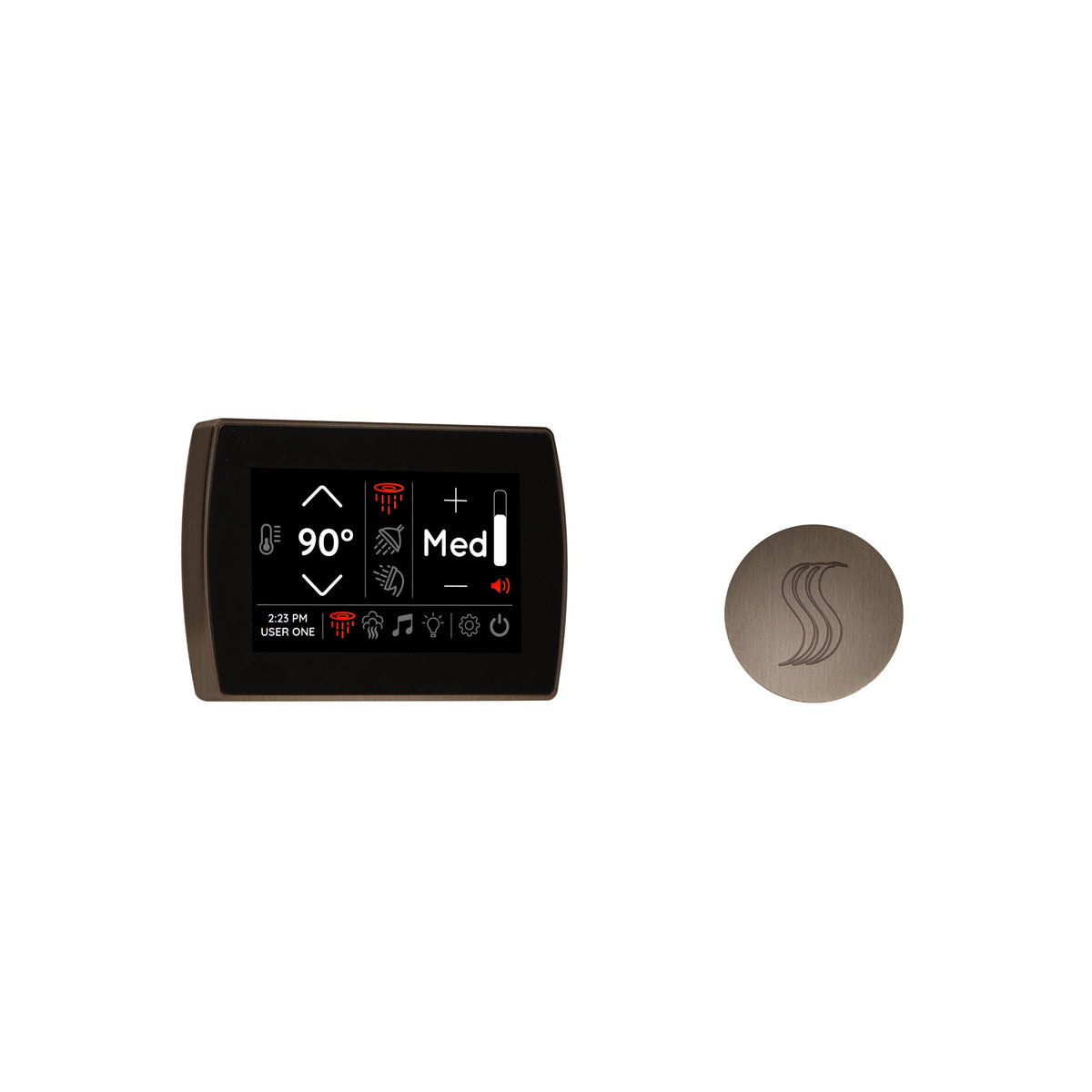

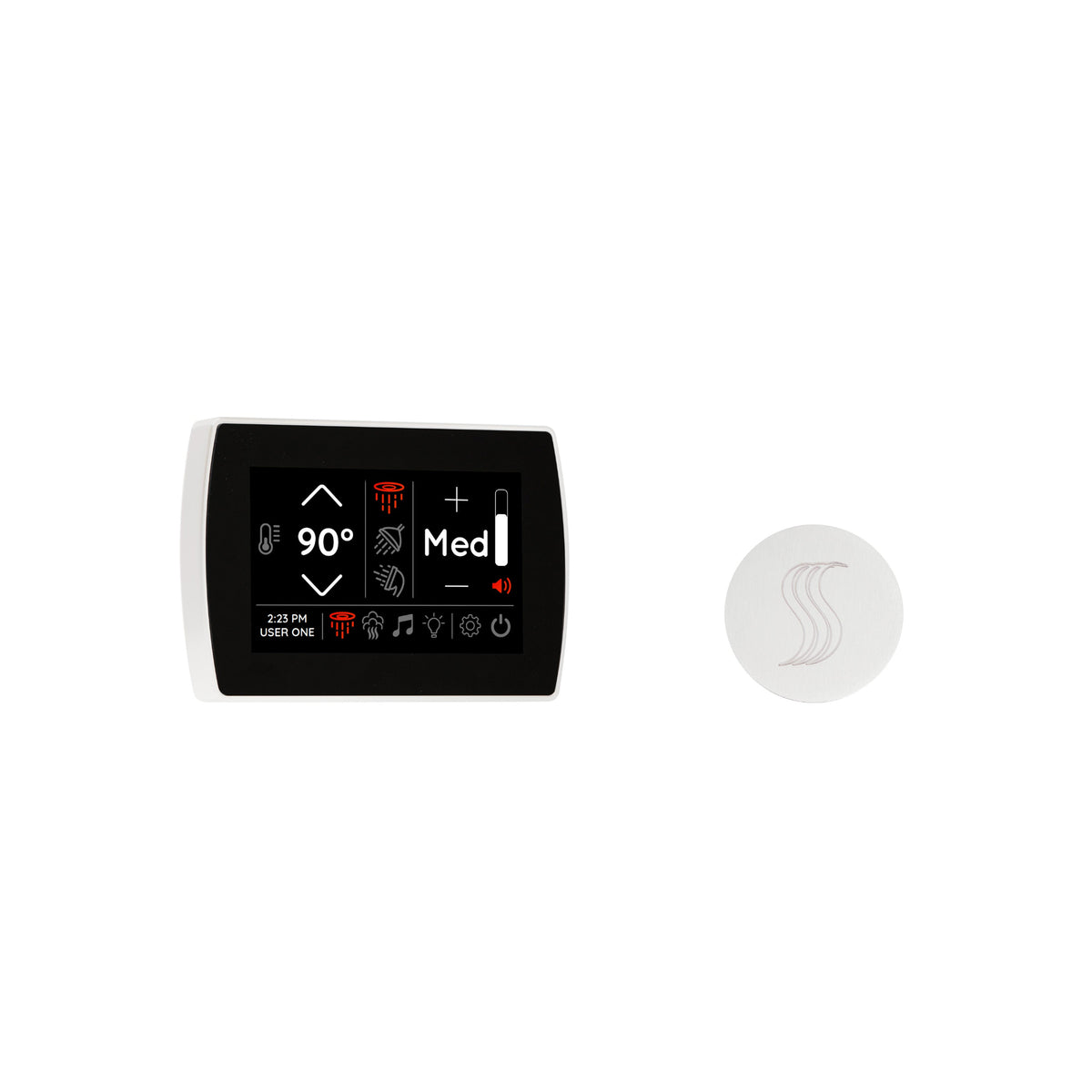

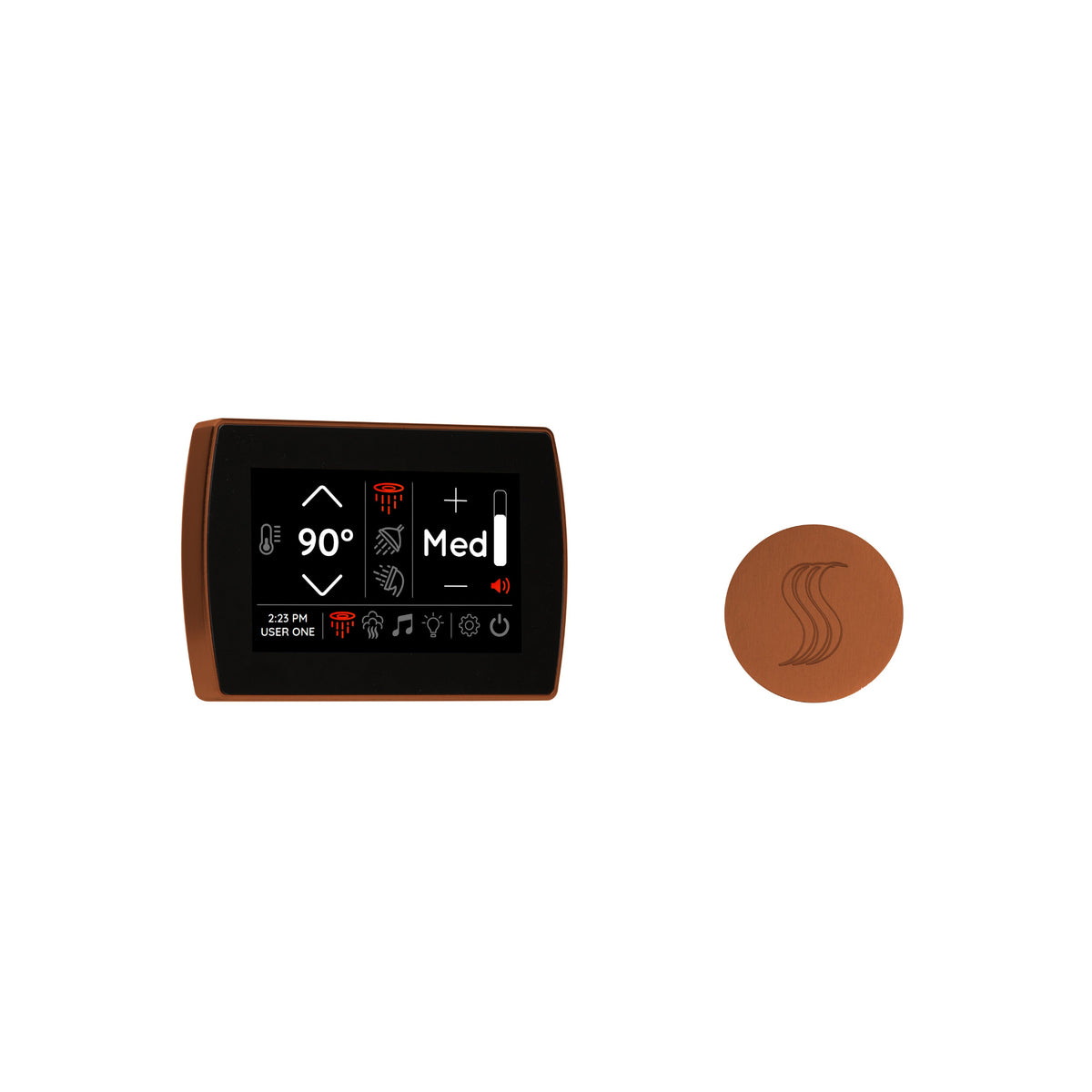

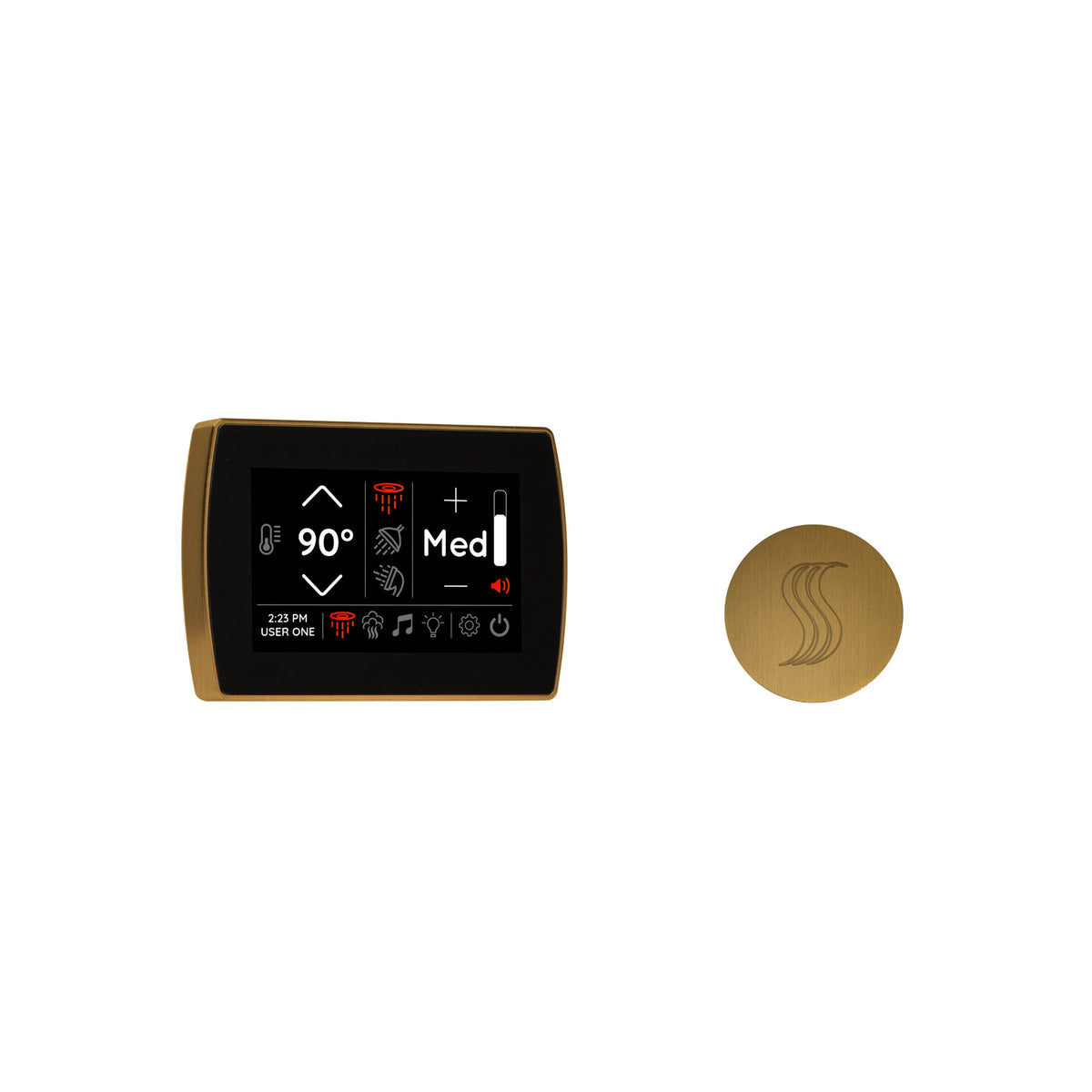

STCM-SVRD	SignaTouch wall mount, bezel in selected finish	5.8" × 4.0" × 0.7"	1.5" through-hole; 2.5" rear clearance	Round, matching finish

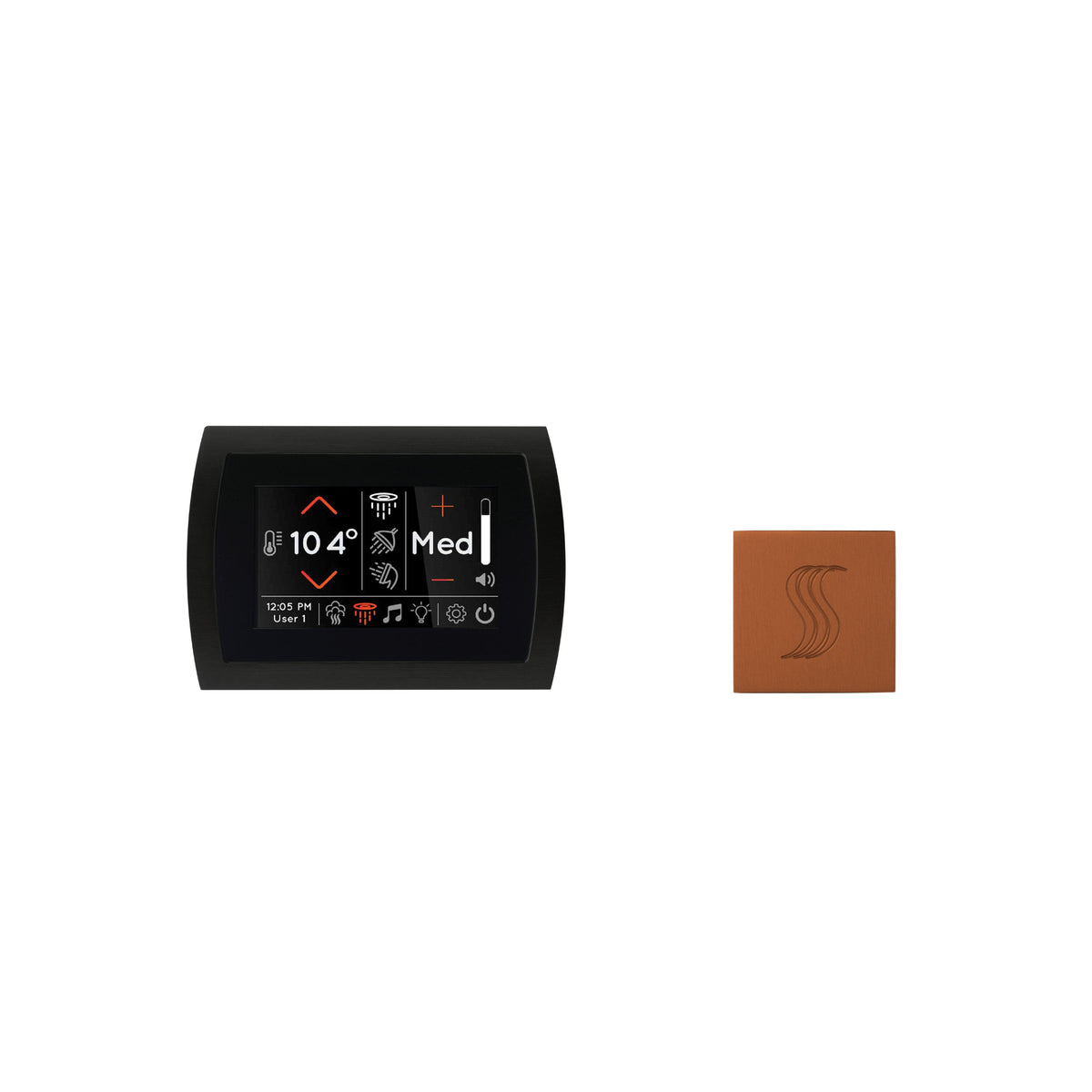

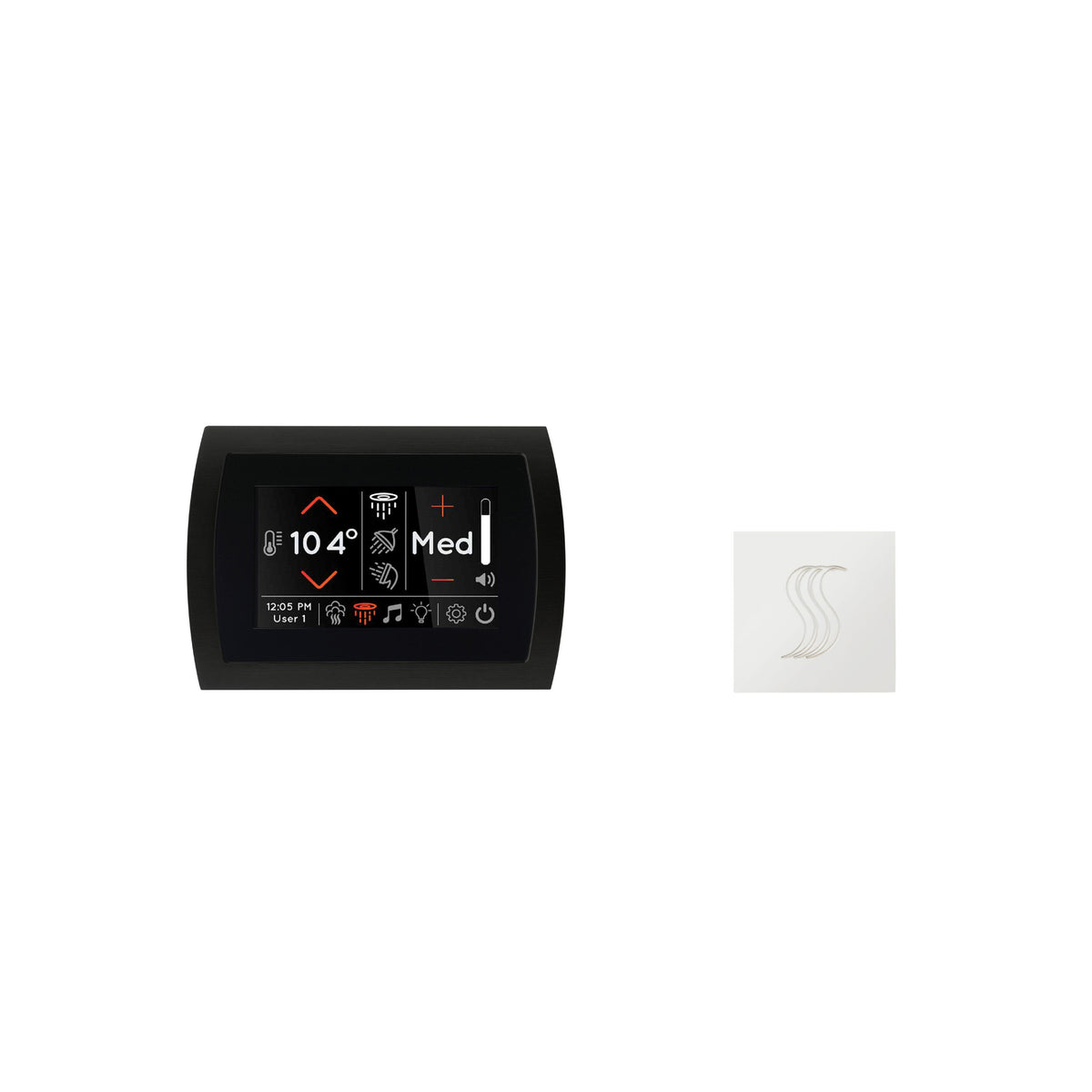

STC-SVSQ	SignaTouch recessed, black trim	6.625" × 3.75"	5.7" × 3.9" cutout at 1" depth; 2.5" rear clearance	Square, selected finish

The SteamVection Steam Head

Every kit includes ThermaSol's SteamVection steam head in the matching finish. SteamVection uses convection technology to circulate steam evenly from floor to ceiling, reducing hot and cold zones in the enclosure, and runs whisper-quiet. A built-in aromatherapy well lets you add essential oils directly at the steam head. It is available in round or square profiles (1.75" face) to match the control, installs 24" above the shower floor and at least 6" from any corner, and connects to the generator's 1/2" NPT steam line. The steam head housing kit required for installation is included with the PRO Series III generator.

Key Features

Clear, Responsive Touchscreen: A configurable 5" display designed for readability in steam.

Multi-Sensory Control: Steam, chromatherapy lighting, and sound from one panel.

Personal Profiles: Two user profiles store individual preferences.

Bluetooth® Integration: Works with ThermaSol HydroVive and Serenity rainheads.

Coordinated Finish: Wall-mount bezel and steam head share the same finish.

SteamVection Performance: Convection steam distribution, whisper-quiet operation, built-in aromatherapy well.

Specifications

Product: ThermaSol SignaTouch + SteamVection Kit

Kit Models: STCM-SVRD-xx (wall mount + round) · STC-SVSQ-xx (recessed + square)

Control: SignaTouch — 5" capacitive touchscreen, full color, 480 × 800

Control Construction: Billet 6061 aluminum; wall mount in selected finish, recessed in black trim

Finishes: Antique Brass, Antique Copper, Antique Nickel, Black Nickel, Copper, Matte Black, Oil Rubbed Bronze, Polished Brass, Polished Chrome, Polished Gold, Polished Nickel, Satin Brass, Satin Chrome, Satin Nickel, White

Control Face: Wall mount: 5.8" × 4.0" × 0.7" · Recessed: 6.625" × 3.75"

Rough-In: Wall mount: 1.5" through-hole · Recessed: 5.7" × 3.9" cutout, 1" deep; 2.5" rear clearance

Control Mounting Height: 60" from shower floor to center; vertical or horizontal

Controls: Steam, chromatherapy lighting, audio

Connectivity: Integrated Bluetooth®

Compatible Generators: ThermaSol PRO Series III

Shipping Weight: 2 lbs

Control Warranty: 2-year manufacturer warranty

Steam Head: ThermaSol SteamVection, round or square, matching finish

Steam Head Construction: Brass

Steam Head Face: 1.75" (round: 1.75" diameter × 1.9" D · square: 1.75" × 1.75" × 1.9" D)

Steam Connection: 1/2" NPT

Aromatherapy: Built-in internal reservoir

Steam Head Placement: 24" above shower floor; minimum 6" from corners; not beneath seating

Steam Head Warranty: 5-year manufacturer warranty

What's Included

SignaTouch control (selected mounting style and finish)

SteamVection steam head (round with wall mount, square with recessed; selected finish)

Installation instructions

Required and sold separately: a ThermaSol PRO Series III steam generator.

Shipping & Delivery

Free shipping is included for delivery within the contiguous United States (48 states). This item ships by parcel carrier and tracking information is provided once your order ships.

Lead Time: Polished Chrome, Matte Black, Satin Nickel, Black Nickel, and Oil Rubbed Bronze typically ship promptly, subject to manufacturer availability; other finishes are made to order with an estimated lead time of up to approximately 4 weeks

Please inspect the shipment upon arrival and contact Prime Regeneration promptly if there is visible shipping damage or an issue with the delivered product

Installation & Setup Notes

Professional installation by a licensed electrician and plumber is recommended; follow the ThermaSol installation manuals and local codes

Mount the SteamVection steam head 24" above the shower floor, at least 6" from any corner and away from seating, on the generator's 1/2" NPT steam line; the steam head housing kit (included with the PRO Series III generator) is required

Locate the control 60" from the floor and as far from the steam head as practical

Wall mount: drill a 1.5" through-hole for the control cable · Recessed: cut a 5.7" × 3.9" opening at 1" depth before tile is set; allow 2.5" behind the control

Confirm finish selection carefully — non-stocked finishes are made to order

Warranty

The SignaTouch control is covered by ThermaSol's 2-year manufacturer warranty and the SteamVection steam head by a 5-year manufacturer warranty, each from the date of original purchase. Warranty coverage is provided according to ThermaSol's current terms and conditions; contact Prime Regeneration with any warranty questions.

Manuals & Documentation

SignaTouch Wall-Mount + SteamVection Kit Manual (PDF)

SignaTouch Recessed + SteamVection Kit Manual (PDF)

SignaTouch STCM Wall-Mount Spec Sheet

SignaTouch STC Recessed Spec Sheet

SteamVection Steam Head Installation Manual (PDF)

SteamVection Round Steam Head Spec Sheet

SteamVection Square Steam Head Spec Sheet

Returns

Returns are accepted within 15 days of delivery for eligible products that meet Prime Regeneration's return requirements. Return authorization is required before sending any item back.

To request a return, contact Prime Regeneration with your order information. Returned items must be unused, uninstalled, in original packaging, and securely packaged for return shipment. Made-to-order finishes may be subject to manufacturer return restrictions.

Customers are responsible for return shipping costs unless the return is due to an error, damage, or other issue for which Prime Regeneration or the manufacturer is responsible. All approved returns are subject to a 25% restocking fee, which does not apply to items that arrive damaged, defective, or incorrect.

Please review the Prime Regeneration Return Policy for complete eligibility requirements, exclusions, applicable fees, and return instructions.

Important Wellness Information

This product is intended for general wellness, relaxation, and recreational steam shower use. It is not intended to diagnose, treat, cure, or prevent any disease or medical condition. Information provided on this page is not medical advice.

Consult a qualified healthcare professional before using a steam shower if you are pregnant, have a medical condition, take medications that may affect heat tolerance, or have concerns about whether steam bathing is appropriate for you.

Frequently Asked Questions

Does the kit include a steam generator?

No. This kit is the control and steam head only. It requires a compatible ThermaSol generator such as the PRO Series III, sold separately.

Can I get the recessed control with a round steam head?

ThermaSol packages the wall-mount SignaTouch with the round SteamVection and the recessed SignaTouch with the square SteamVection. If you need a different pairing, order the SignaTouch Control and steam head separately.

What does the finish apply to on the recessed kit?

The recessed SignaTouch is only made with black trim, so on the recessed kit the selected finish applies to the square SteamVection steam head.

How does the aromatherapy work?

The SteamVection steam head has a built-in reservoir. Add a few drops of essential oil to the well and the steam carries the scent into the enclosure — no separate aromatherapy system is needed.

Which finishes ship fastest?

Polished Chrome, Matte Black, Satin Nickel, Black Nickel, and Oil Rubbed Bronze are typically stocked. Other finishes are made to order with a lead time of up to approximately 4 weeks.

Is shipping included?

Yes. Free shipping is included for delivery within the contiguous United States.
