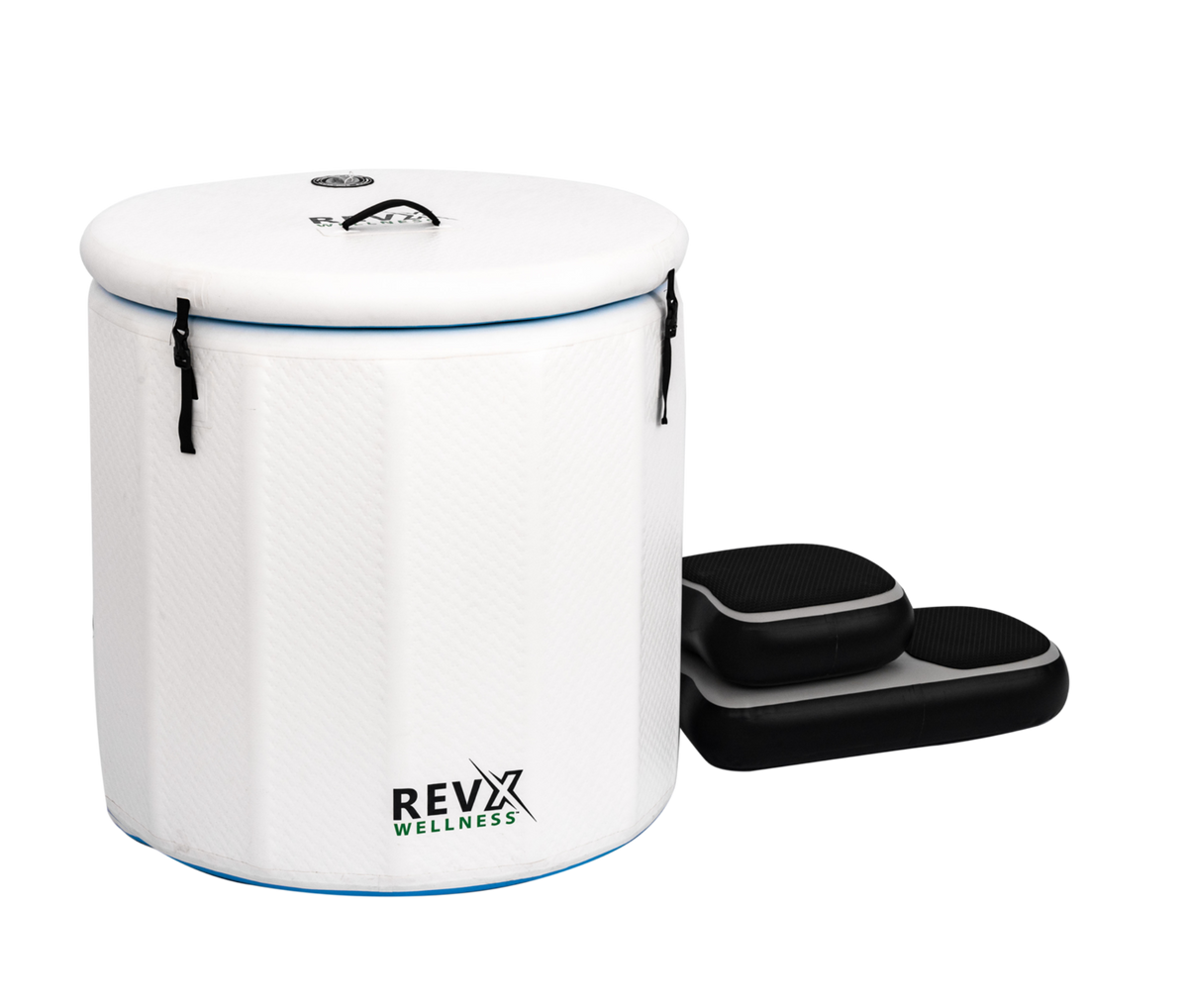

RevX Inflatable Barrel Cold Plunge with Steps

Portable Inflatable Barrel Cold Plunge with Inflatable Steps

The RevX Inflatable Barrel with inflatable steps provides a portable upright cold plunge setup. Add ice or connect compatible filtration equipment and a chiller, sold separately. The barrel can be deflated and packed into a backpack for transport or storage; a backpack is not listed among the included items.

High-grade PVC with cross-stitch construction creates an internal air gap that acts as insulation, helping limit heat transfer. RevX describes the material as the same heavy-duty material used in commercial-grade inflatable paddle boards. A paddle board's load rating is not a weight-capacity rating for this tub.

Features & Specifications

• Supplier-listed fit for individuals up to 6 ft. 3 in.; comfort varies by user
• High-grade PVC with cross-stitch construction
• Deflatable design for transport and storage
• Supplier-listed inflation time of under two minutes with the included manual air pump; actual time may vary
• Insulated tub and inflatable cover help keep water cool

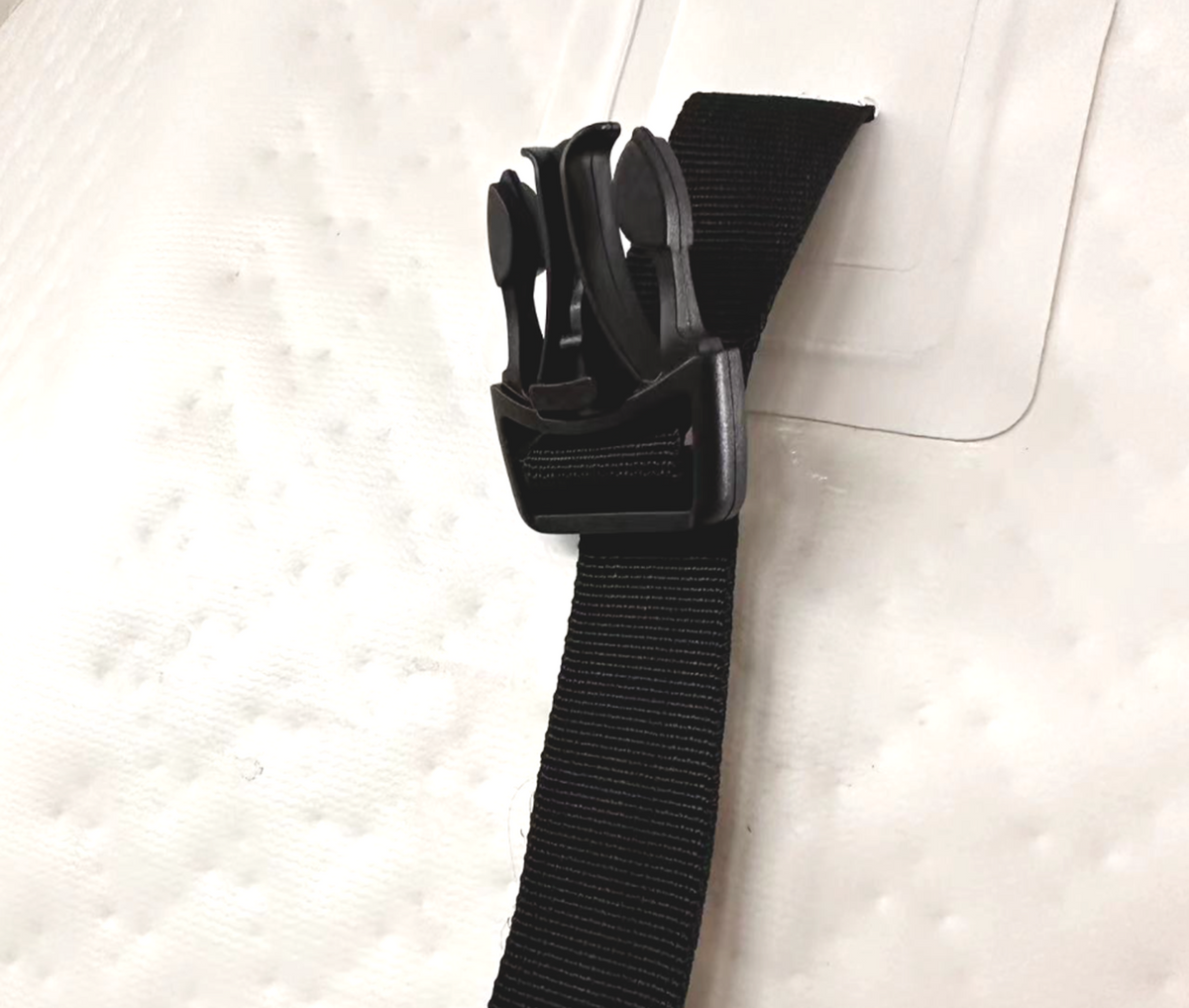

• Three release-style lockable lid buckles; not childproof and not a substitute for supervision

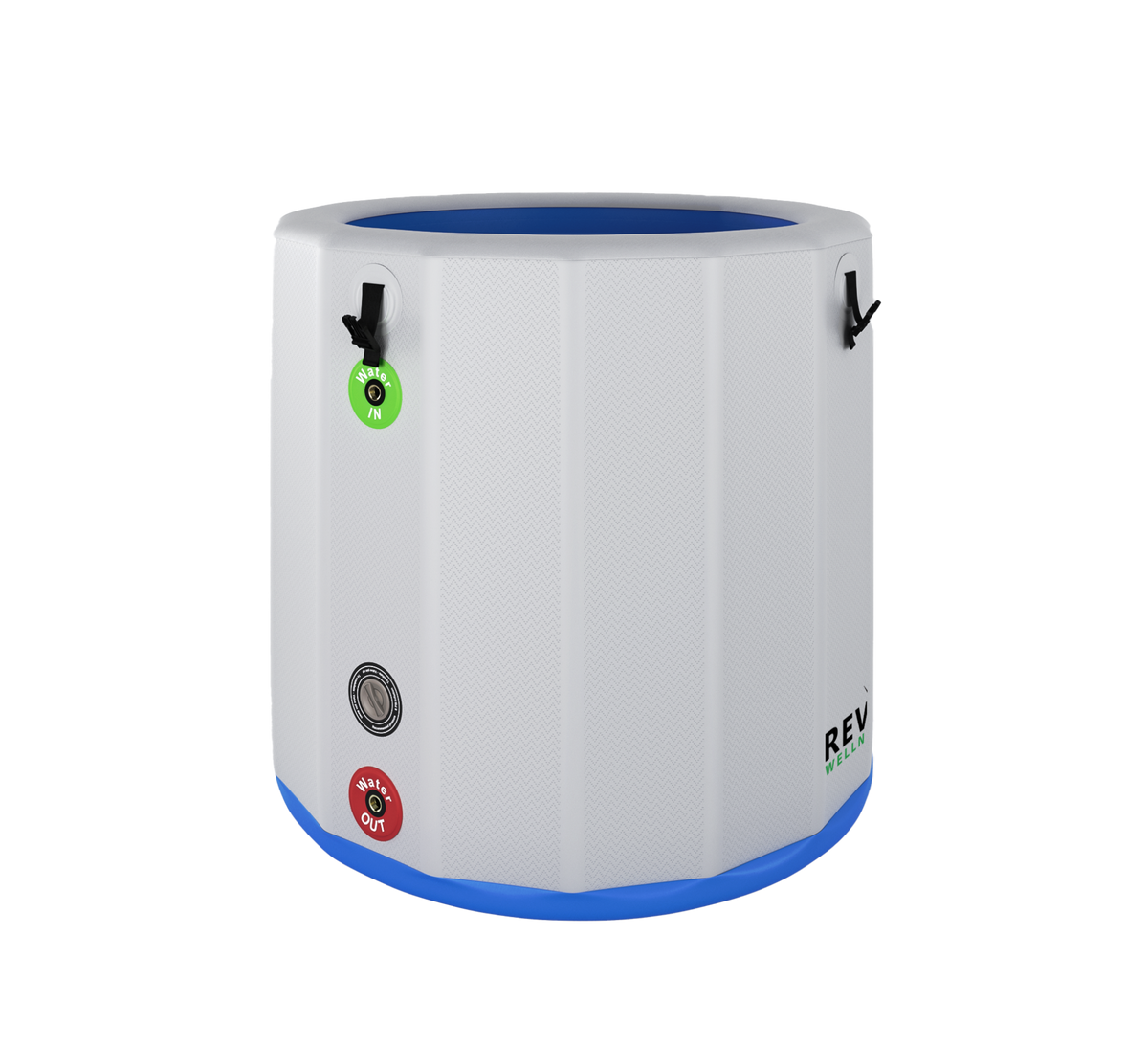

• Molded inlet and outlet with 1/2-inch threaded inserts

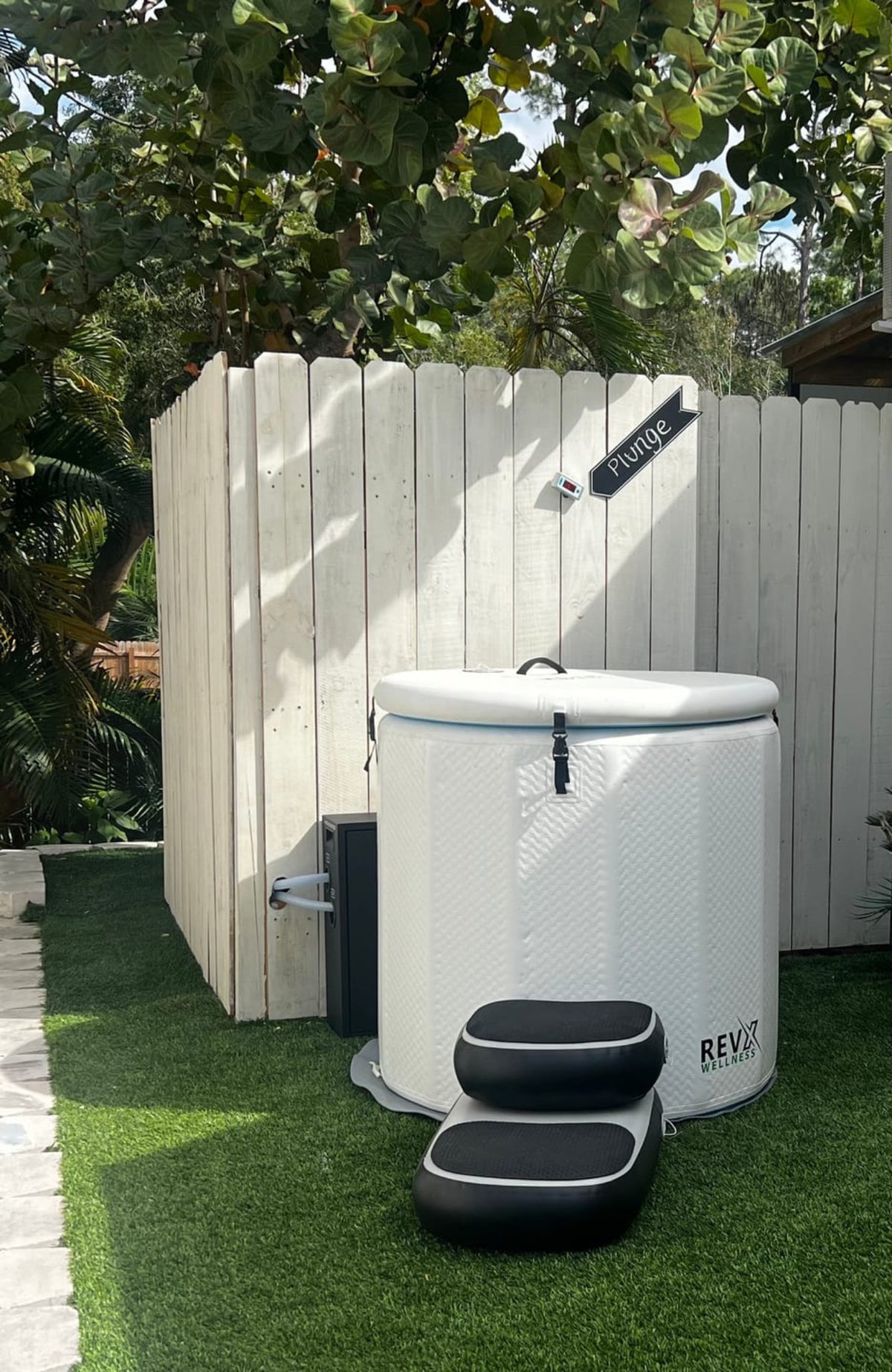

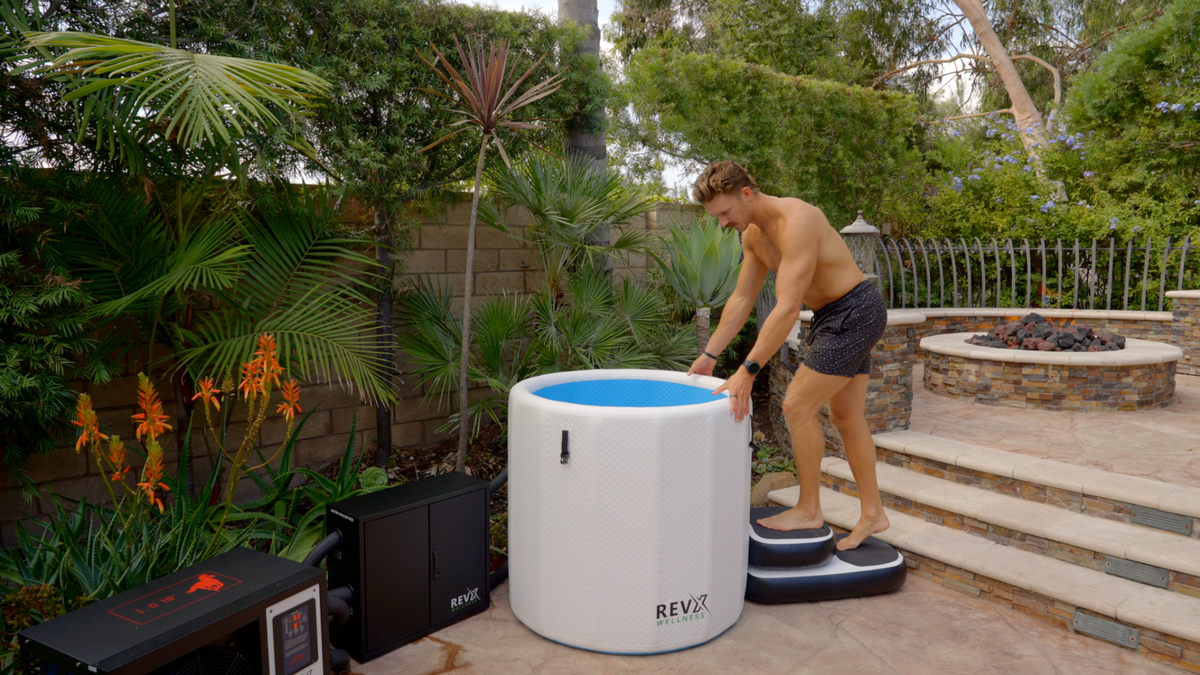

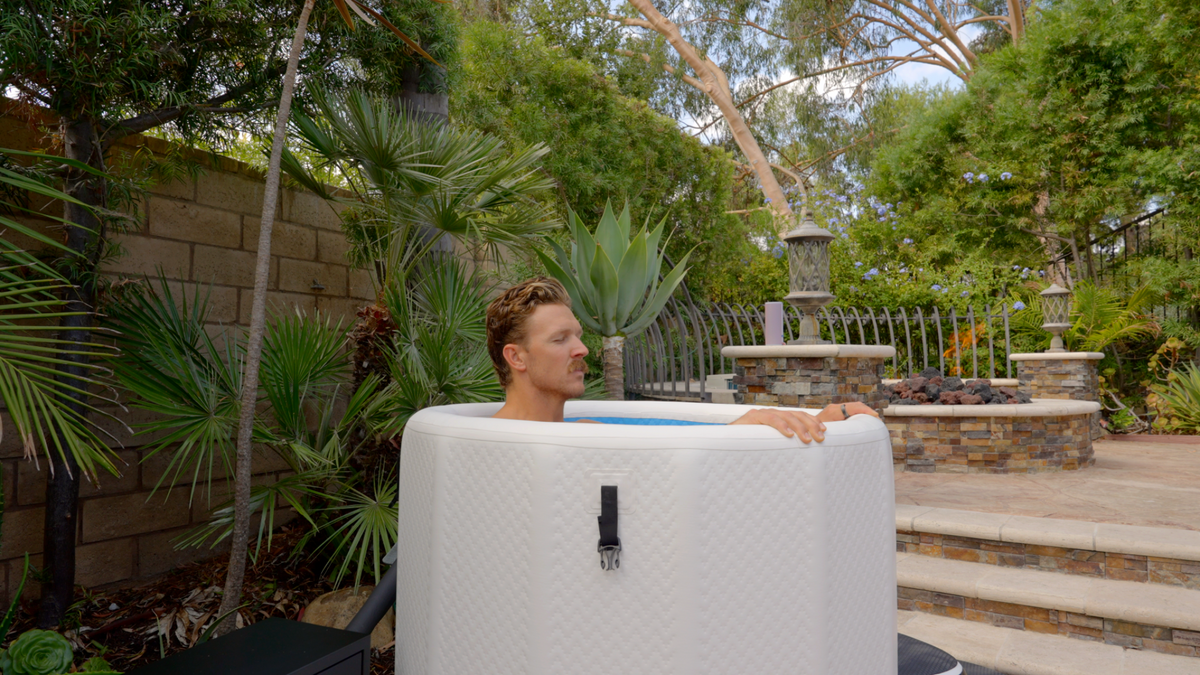

• Designed for indoor or outdoor use, subject to the user manual's placement and weather guidance

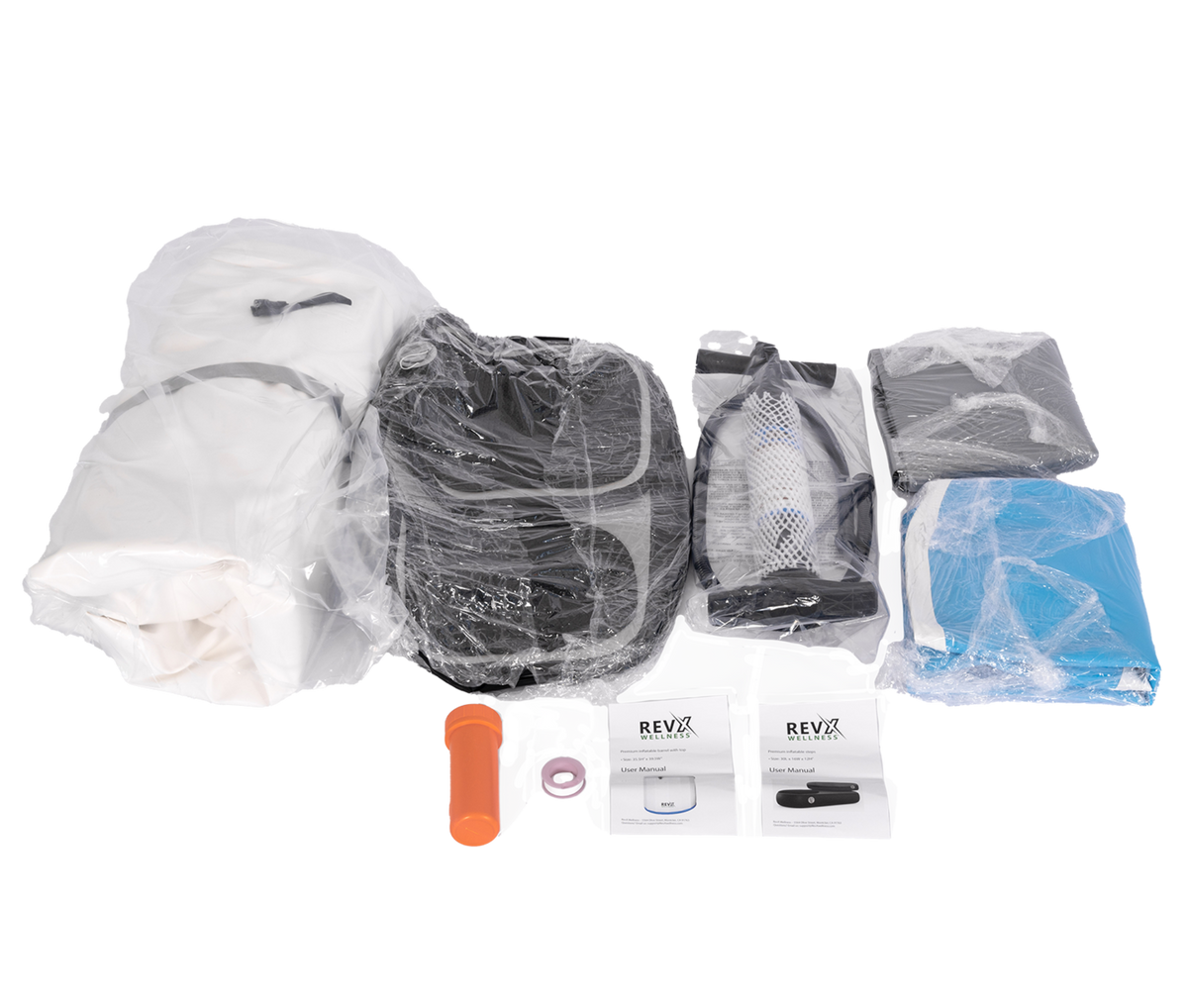

What's Included

• Inflatable barrel
• Inflatable lid

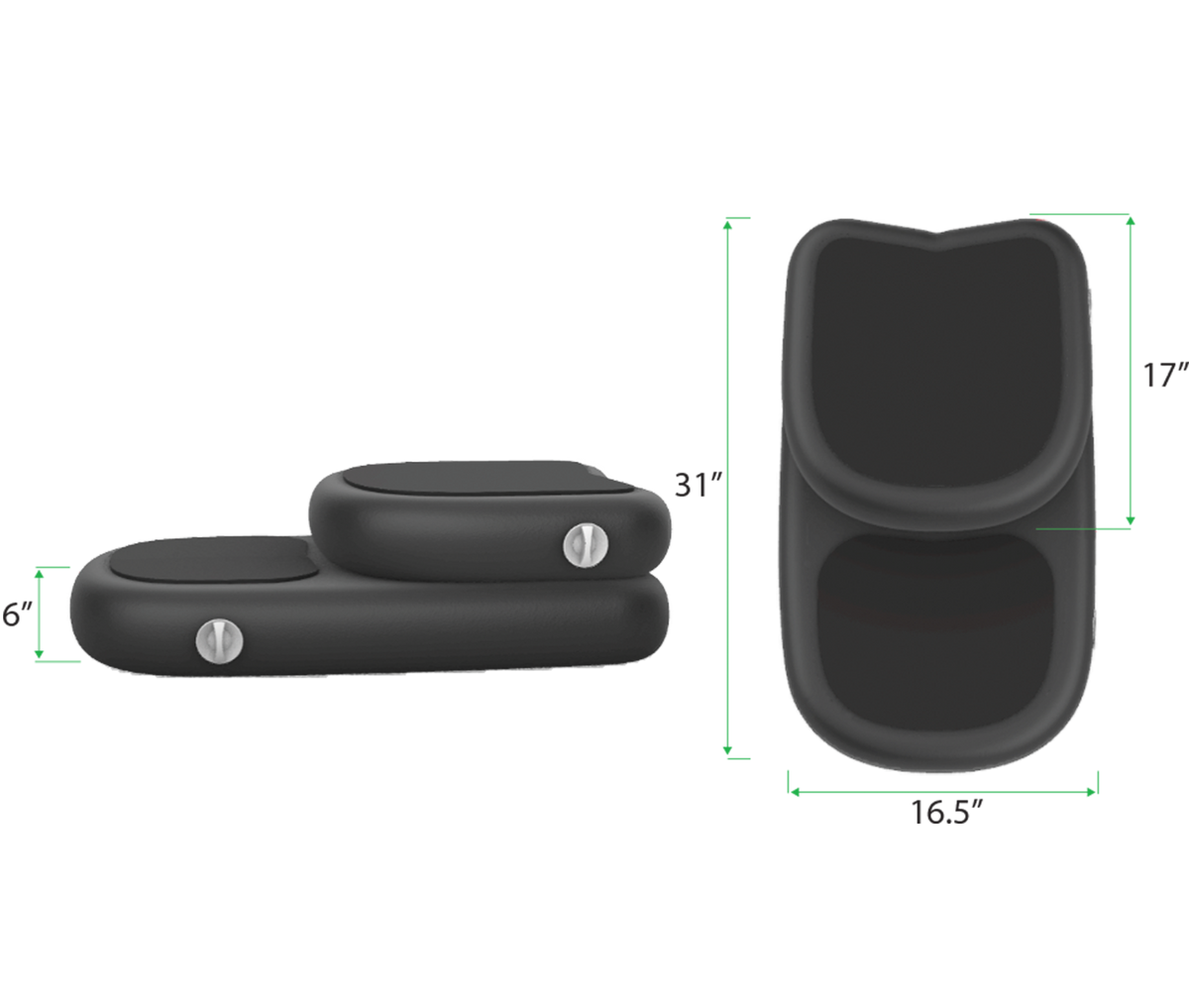

• Inflatable steps
• Protective mat

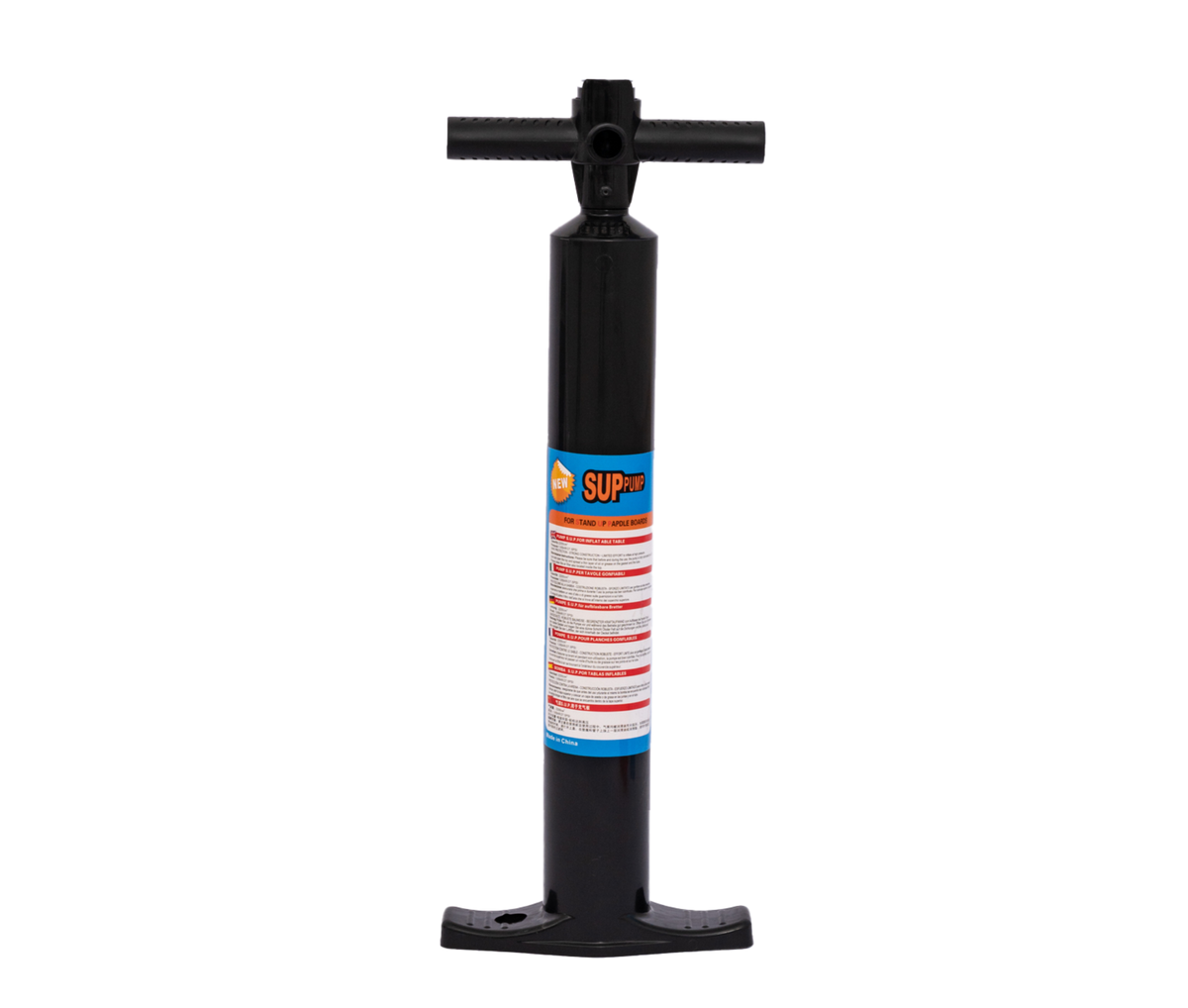

• Manual air pump
• Repair kit
• User manual

A chiller, filtration system and backpack are not listed as included with this barrel package. Confirm compatibility before purchasing optional equipment.

Setup & Placement

Choose a level surface capable of supporting the filled tub and user, and plan for drainage. RevX describes its connected system as a closed loop that does not require a permanent plumbing connection: fill the tub with a garden hose. Follow the barrel and optional equipment manuals for connection, filling and operation instructions.

RevX estimates approximately one hour for a complete system installation, including filling the tub, and provides installation videos covering the process. This estimate refers to a connected system setup, not the barrel's inflation time; actual setup time varies with equipment and water flow.

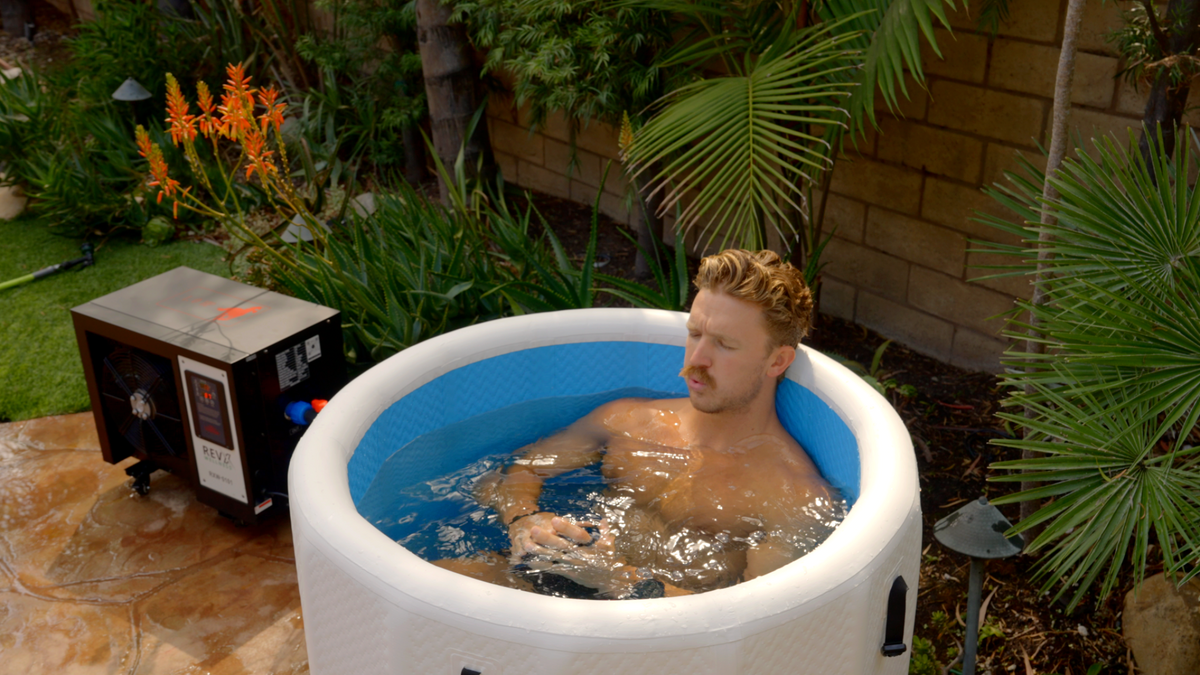

Optional RevX Chillers & Filtration Systems

The following supplier information describes separately purchased RevX equipment, not components included with this inflatable barrel.

RevX houses the water pump, filtration and sanitation components in a dedicated filtration cabinet separate from the chiller. This modular design keeps these components accessible for service and future upgrades and allows space for larger components. The chiller handles water temperature control rather than housing these filtration components.

Optional Equipment Electrical Requirements

These are supplier-provided specifications for optional equipment. Confirm the exact model's current manual and specification sheet before installation, and have a qualified electrician confirm circuit, outlet and local electrical requirements.

• RevX 1.0 HP chiller: 110 V; maximum amperage draw of 9 A
• RevX 1.5 HP chiller: 110 V; maximum amperage draw of 11 A
• RevX 2.0 HP chiller: 220 V; maximum amperage draw of 8.3 A. The supplier specifies a NEMA 6-30R connection and a two-pole 30 A circuit breaker; confirm the matching plug and receptacle arrangement in the model's manual.
• Xtreme filtration system: three 110 V plugs for the water pump, UV and ozone; maximum combined draw of 3 A
• X-Flow filtration system: two 110 V plugs for the water pump and UV; maximum combined draw of 3 A
• Inline UV or Inline Ozone system: two 110 V plugs for the water pump and UV or ozone; maximum combined draw of 3 A
• For a 1.0 HP or 1.5 HP chiller paired with any of these four filtration systems, RevX recommends a dedicated 15 A circuit.
• For a 2.0 HP chiller paired with a filtration system, RevX specifies a two-pole 30 A circuit breaker for the chiller. The filtration equipment is listed as 110 V and requires its own suitable power connections; confirm the complete arrangement with a qualified electrician.

Refer to the supplier's model-specific chiller specification sheets and installation documentation for complete requirements.

Warranty

Includes a one-year standard manufacturer warranty.

Frequently Asked Questions

Is a chiller or filtration system included?
No. This package includes the barrel, lid, inflatable steps, protective mat, manual air pump, repair kit and user manual. Compatible chillers and filtration systems are sold separately.

Why is the filtration system separate from the chiller?
RevX's optional modular system places the pump, filtration and sanitation components in a dedicated cabinet for service access and future upgrades, while the chiller handles water temperature control.

Does a connected system require plumbing?
RevX describes its system as a closed loop with no permanent plumbing connection required. Fill using a garden hose and follow the manuals for your chosen equipment.

How long does setup take?
RevX lists barrel inflation at under two minutes using the included pump and estimates about one hour for a complete connected system installation, including filling. Actual times vary.

Can I use the barrel indoors or outdoors?
Yes, in accordance with the user manual. Confirm surface support, drainage and applicable weather limitations before placement.

Water Safety

Follow all water-safety and equipment instructions. Lockable lid buckles do not make the tub childproof or replace supervision. Do not apply a paddle board's load rating to this barrel.
