Mr.Steam MS iTempo Steam Shower Generator Package

Mr.Steam MS iTempo Steam Shower Generator Package

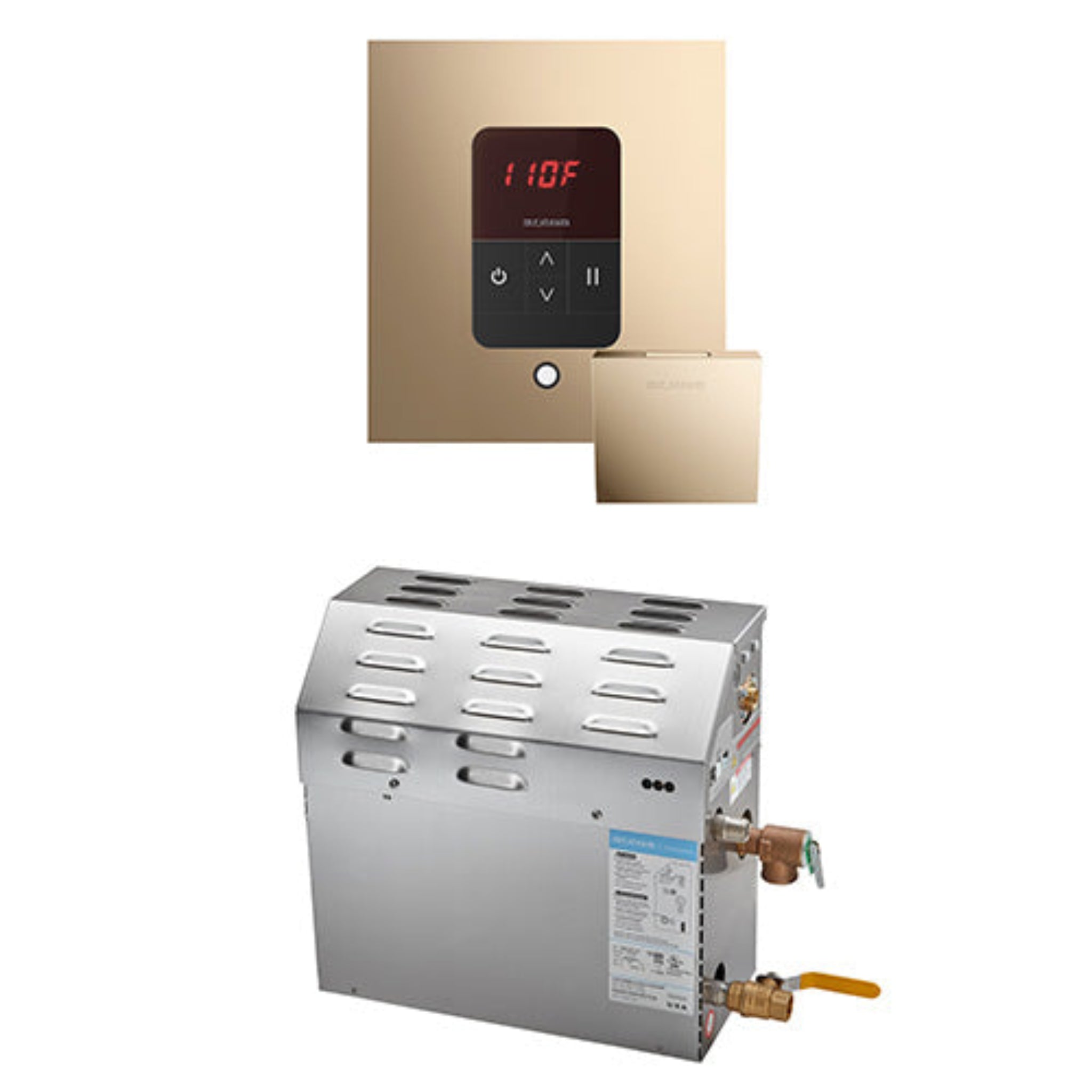

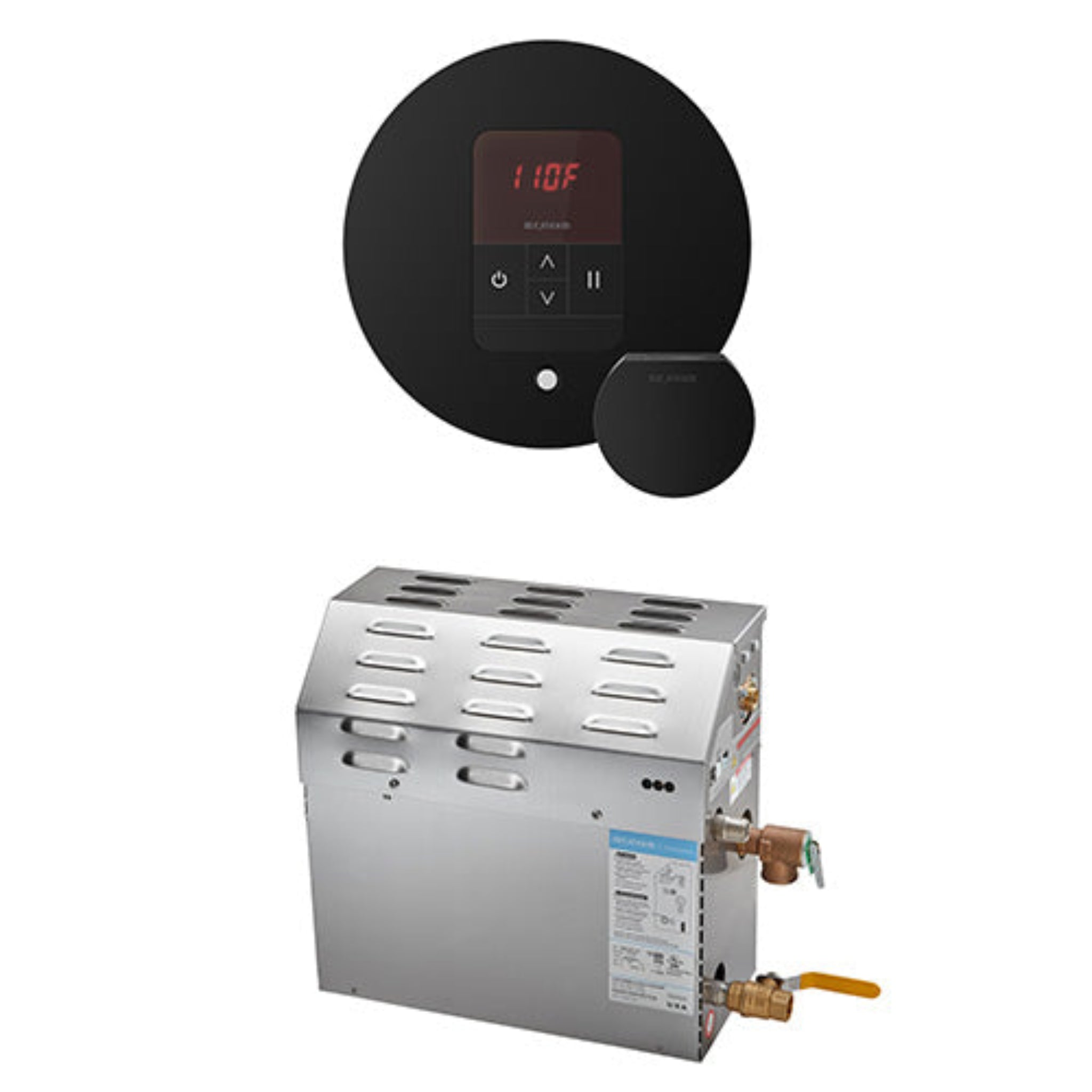

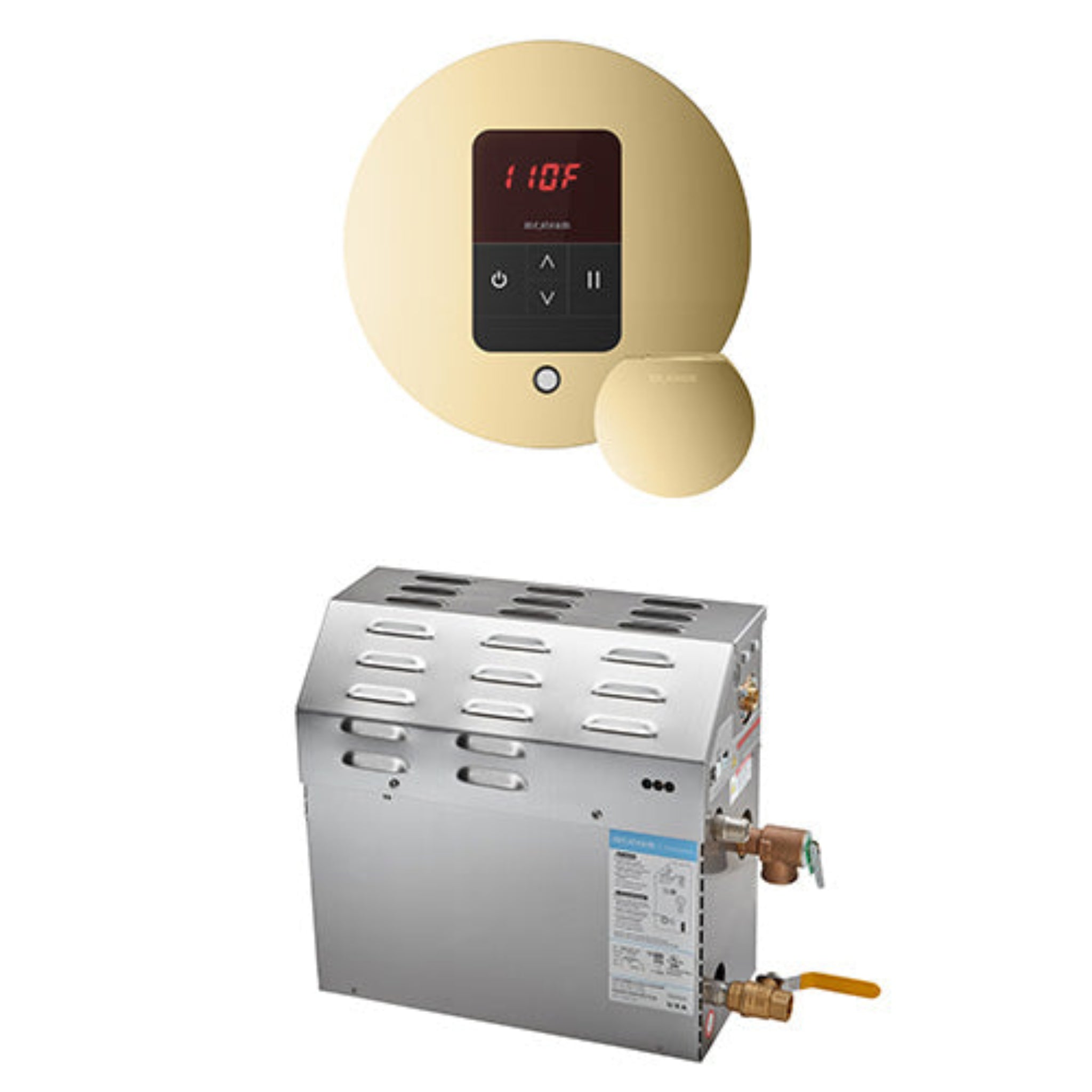

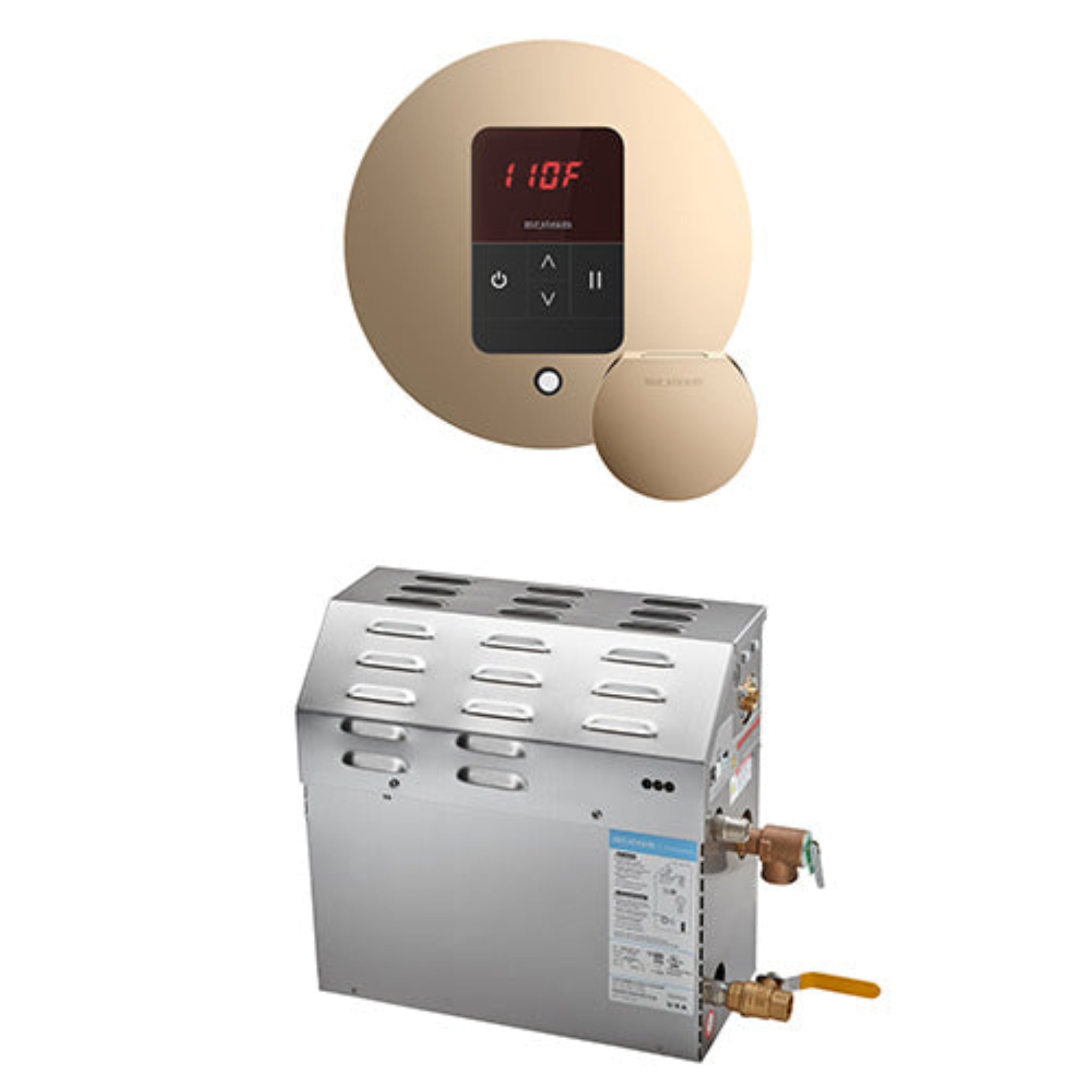

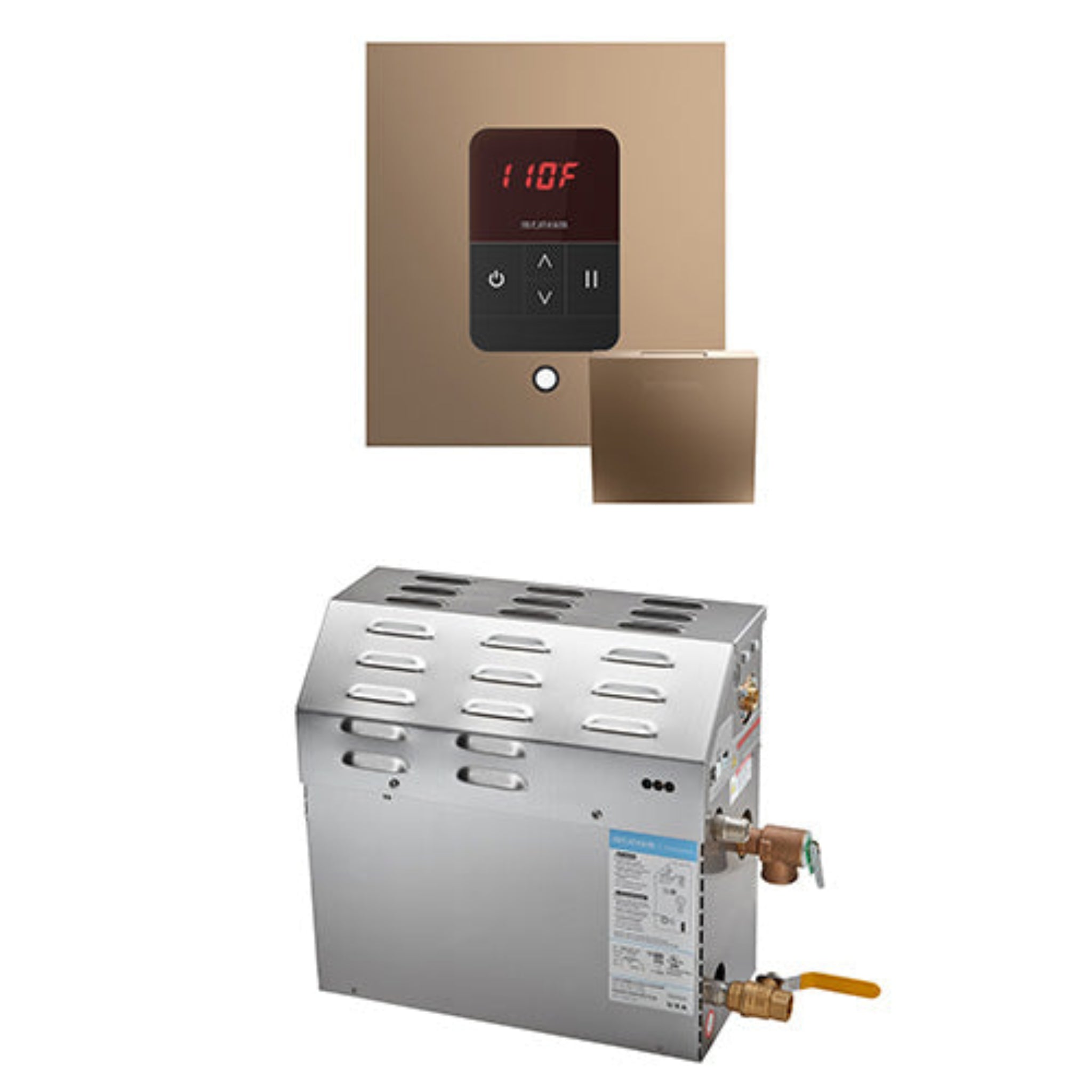

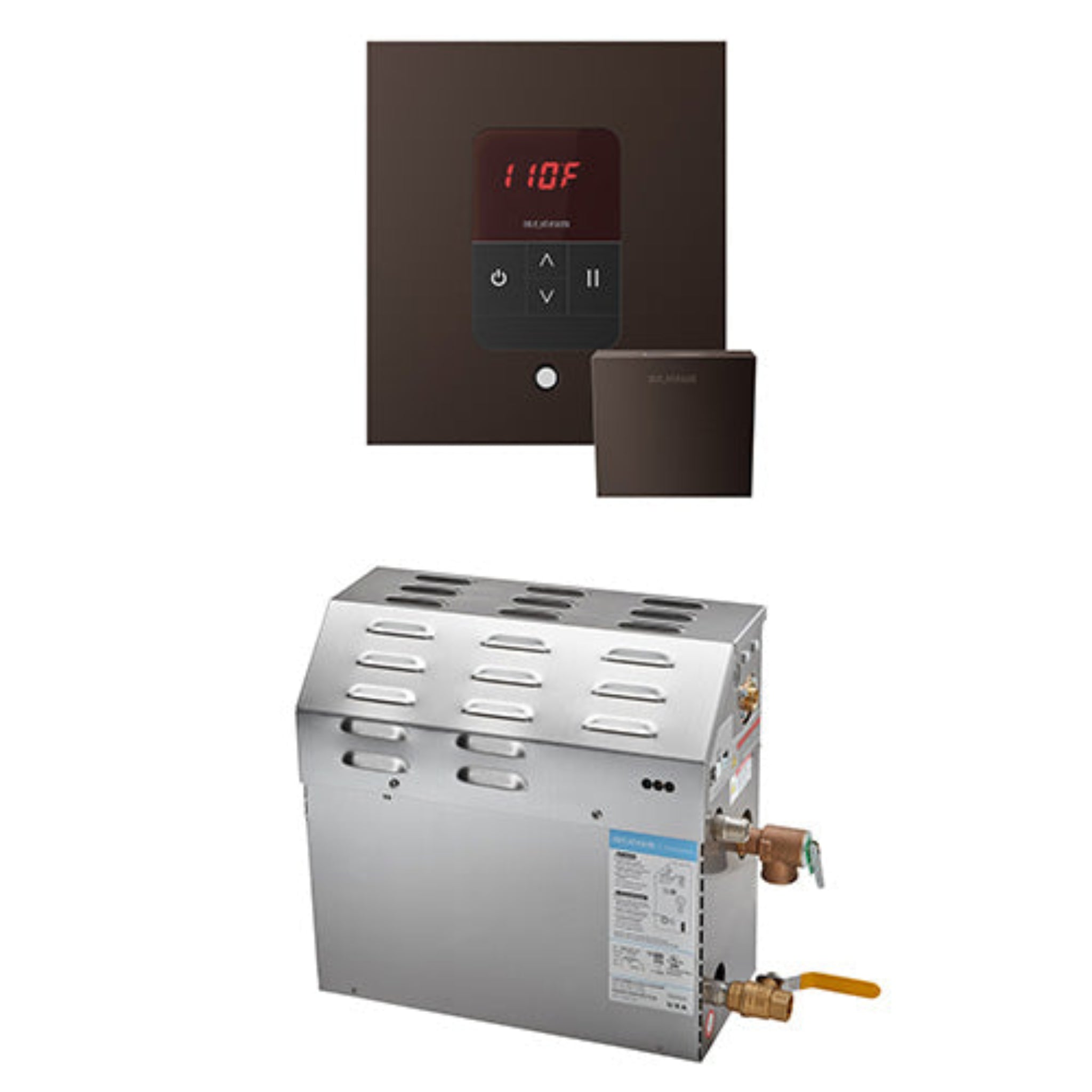

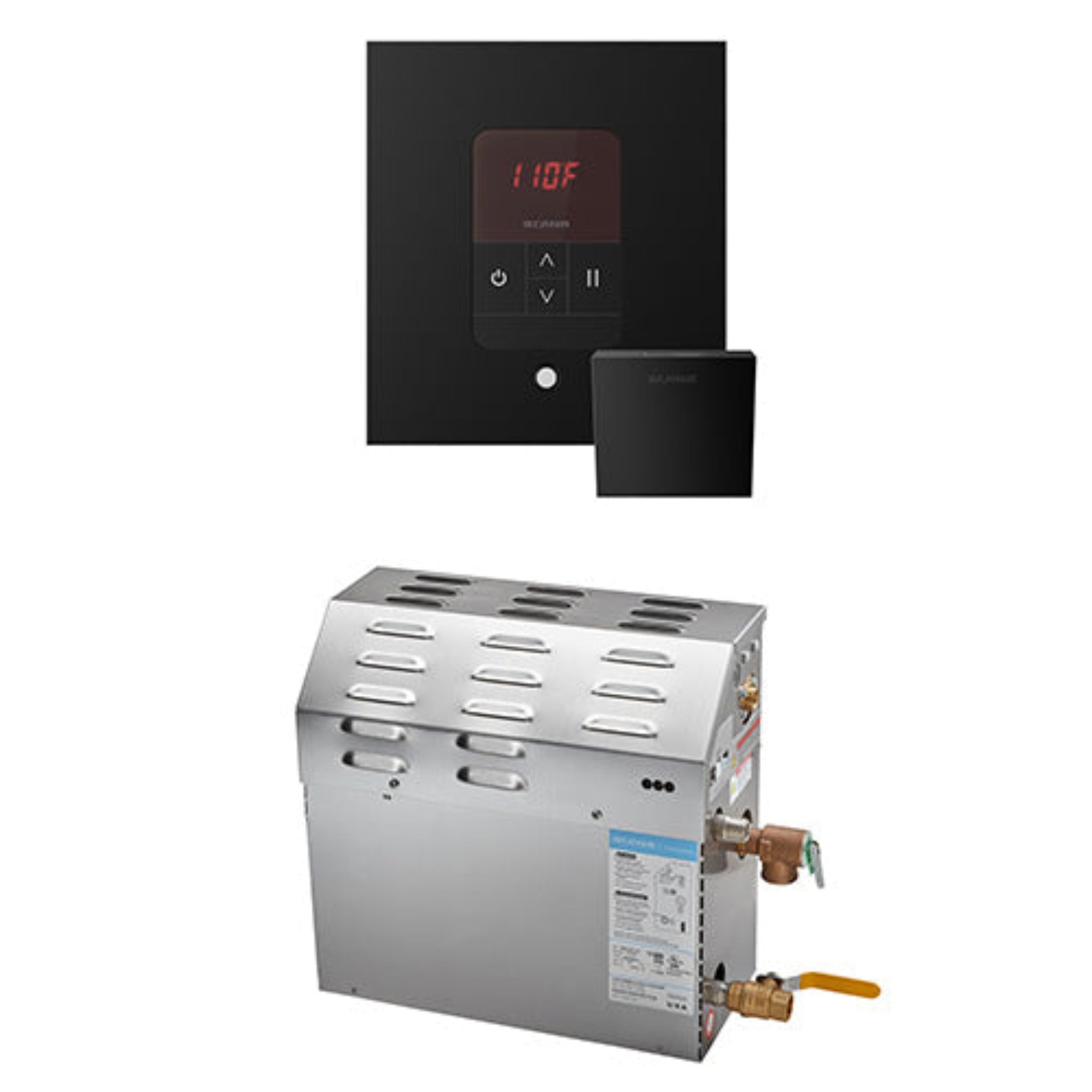

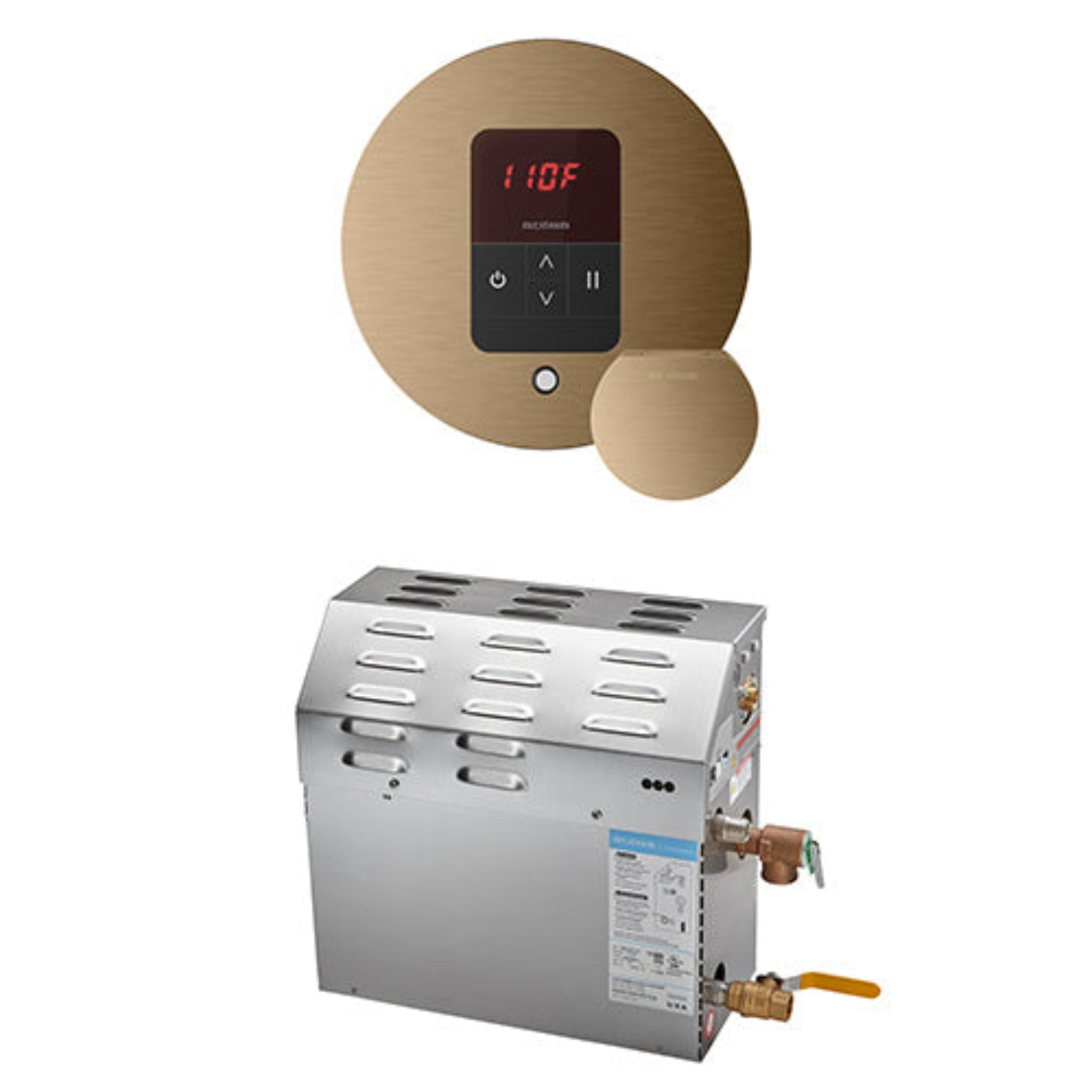

The Mr.Steam MS iTempo Steam Shower Generator Package combines a residential MS-Series steam generator, an iTempo digital control, and a matching Aroma Designer Finish SteamHead in one coordinated package.

Available in 5kW, 6kW, 7.5kW, and 9kW configurations, this package is designed for properly constructed steam shower enclosures from 0 to 257 adjusted cubic feet. Select the generator size, control shape, and decorative finish that match your steam shower design and calculated room requirements.

The generator uses a stainless steel tank, serviceable heating components, low-voltage control circuits, and diagnostic indicator lights. The iTempo control provides digital temperature and session operation, while the included SteamHead distributes steam into the enclosure and includes a recessed reservoir for compatible aroma oils.

Important: Generator sizing must be based on the steam room’s adjusted cubic footage, surface materials, ceiling height, exterior walls, and other construction factors. Plumbing, electrical service, drainage, enclosure construction, and professional installation are not included.

Overview

• Complete residential steam shower equipment package
• Includes MS-Series steam generator, iTempo control, and Aroma Designer Finish SteamHead
• Available in 5kW, 6kW, 7.5kW, and 9kW configurations
• Designed for adjusted steam room volumes from 0 to 257 cu. ft.
• 240V, single-phase configuration for residential use
• Round or square control and SteamHead styles
• Multiple decorative finish options
• Hardwired installation
• Professional plumbing and electrical installation required

Available Generator Sizes

Select the generator according to the adjusted cubic footage of the completed steam shower enclosure.

• 5kW: For adjusted steam room volumes from 0 to 71 cu. ft.
• 6kW: For adjusted steam room volumes from 72 to 107 cu. ft.
• 7.5kW: For adjusted steam room volumes from 108 to 161 cu. ft.
• 9kW: For adjusted steam room volumes from 162 to 257 cu. ft.

These ranges should not be based on raw room dimensions alone. Finish materials, ceiling height, exterior walls, and other construction conditions can increase the calculated room size. Confirm sizing before ordering.

Available Styles & Finishes

Control and SteamHead Styles

• Round
• Square

Available Finishes

• Polished Chrome

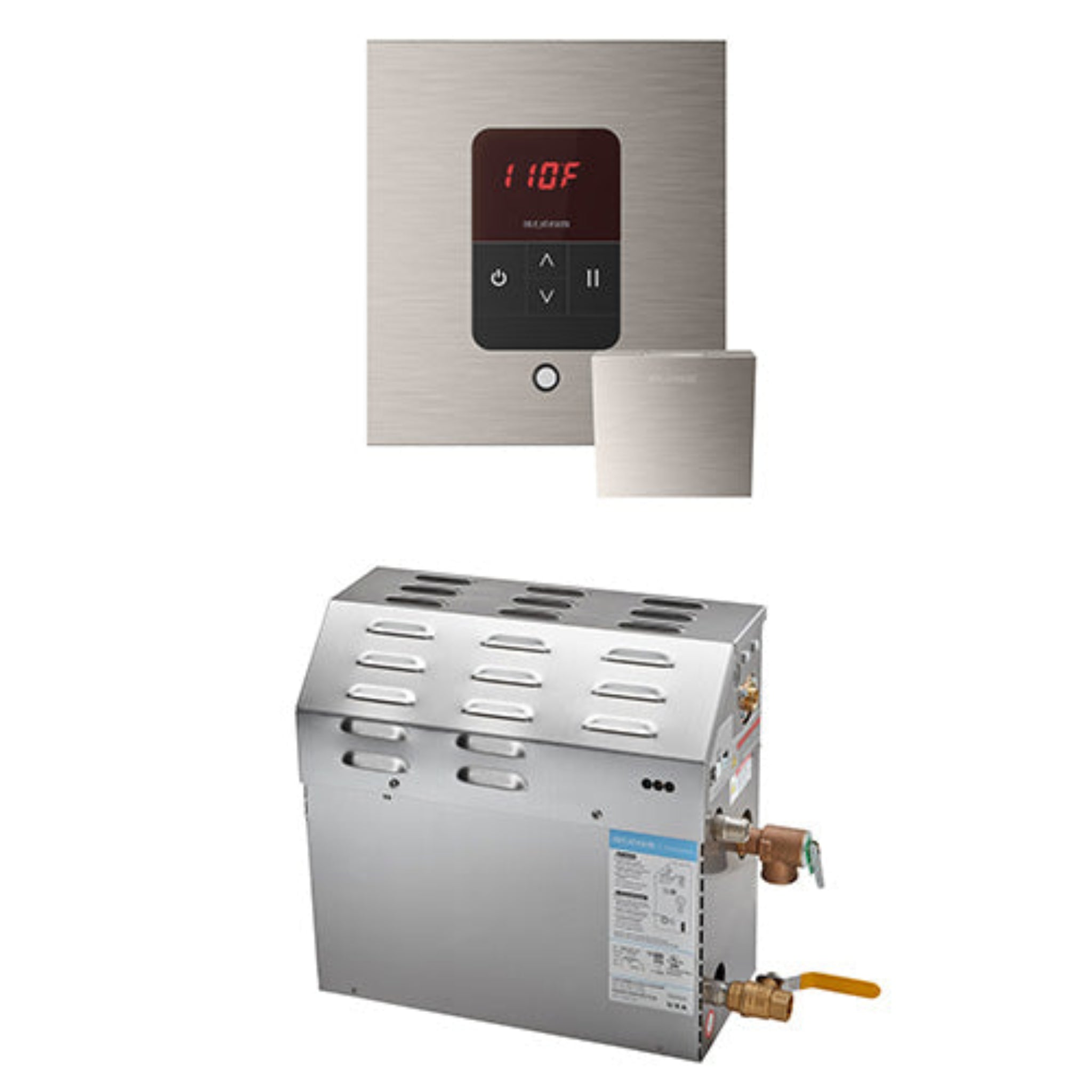

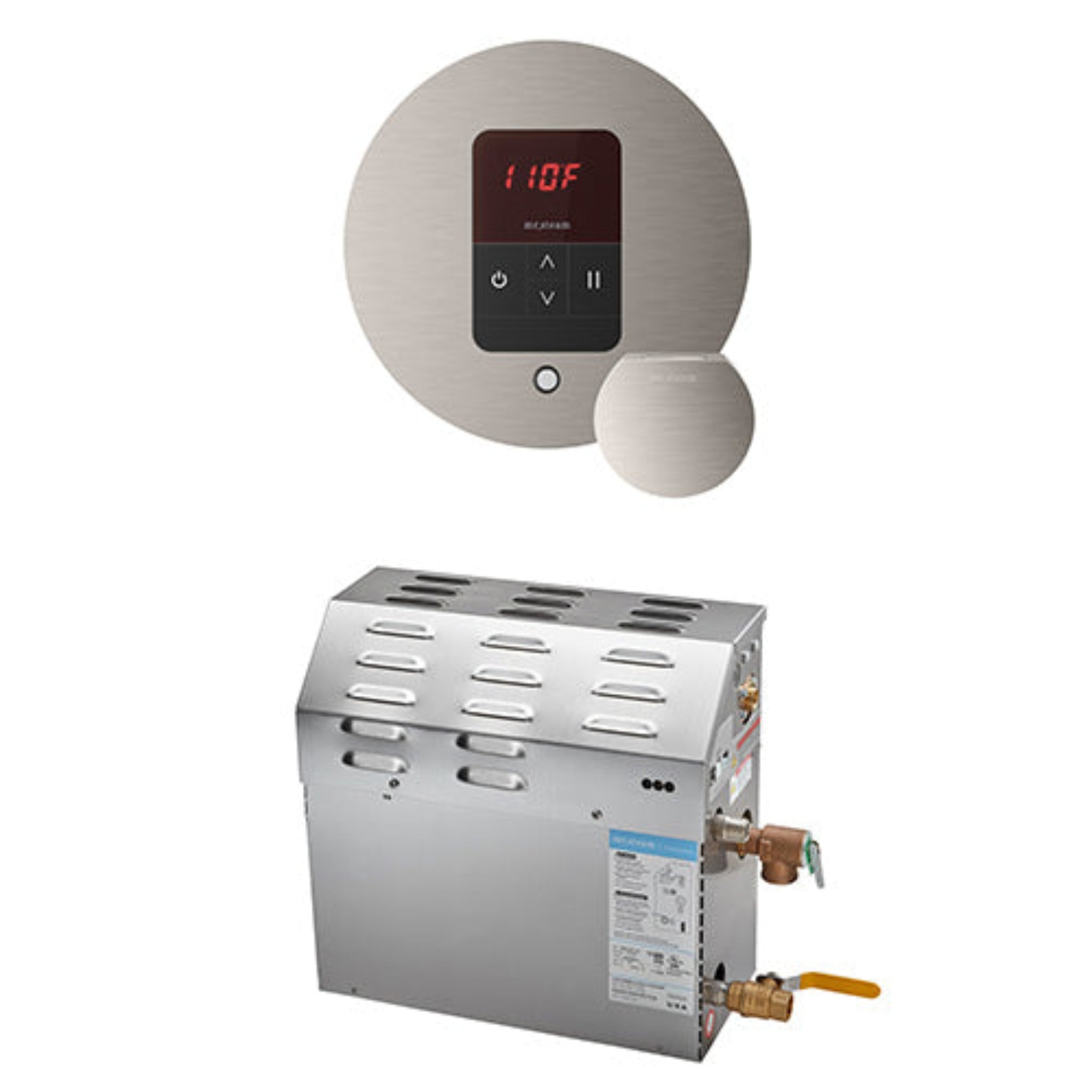

• Brushed Nickel
• Polished Nickel

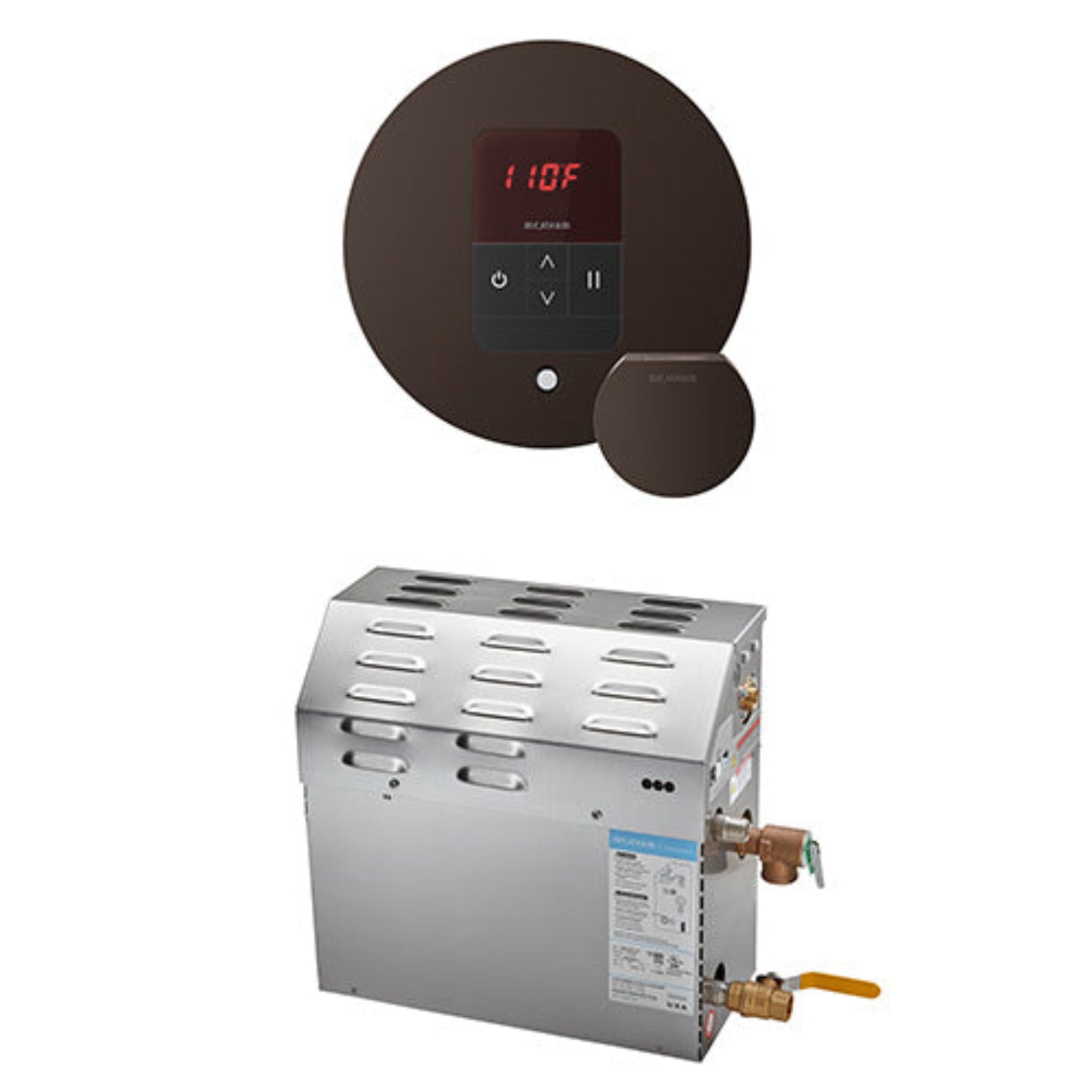

• Oil-Rubbed Bronze

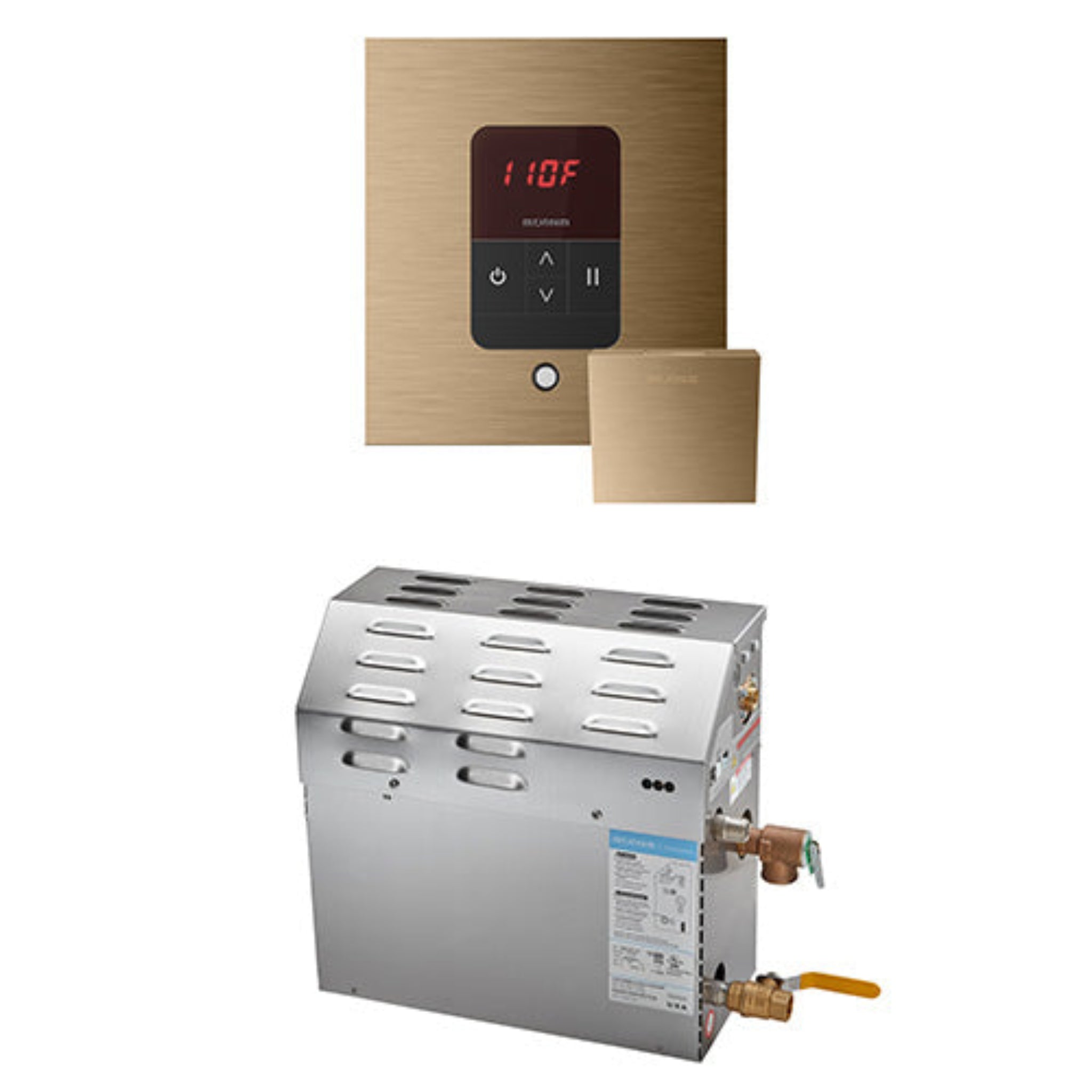

• Brushed Bronze

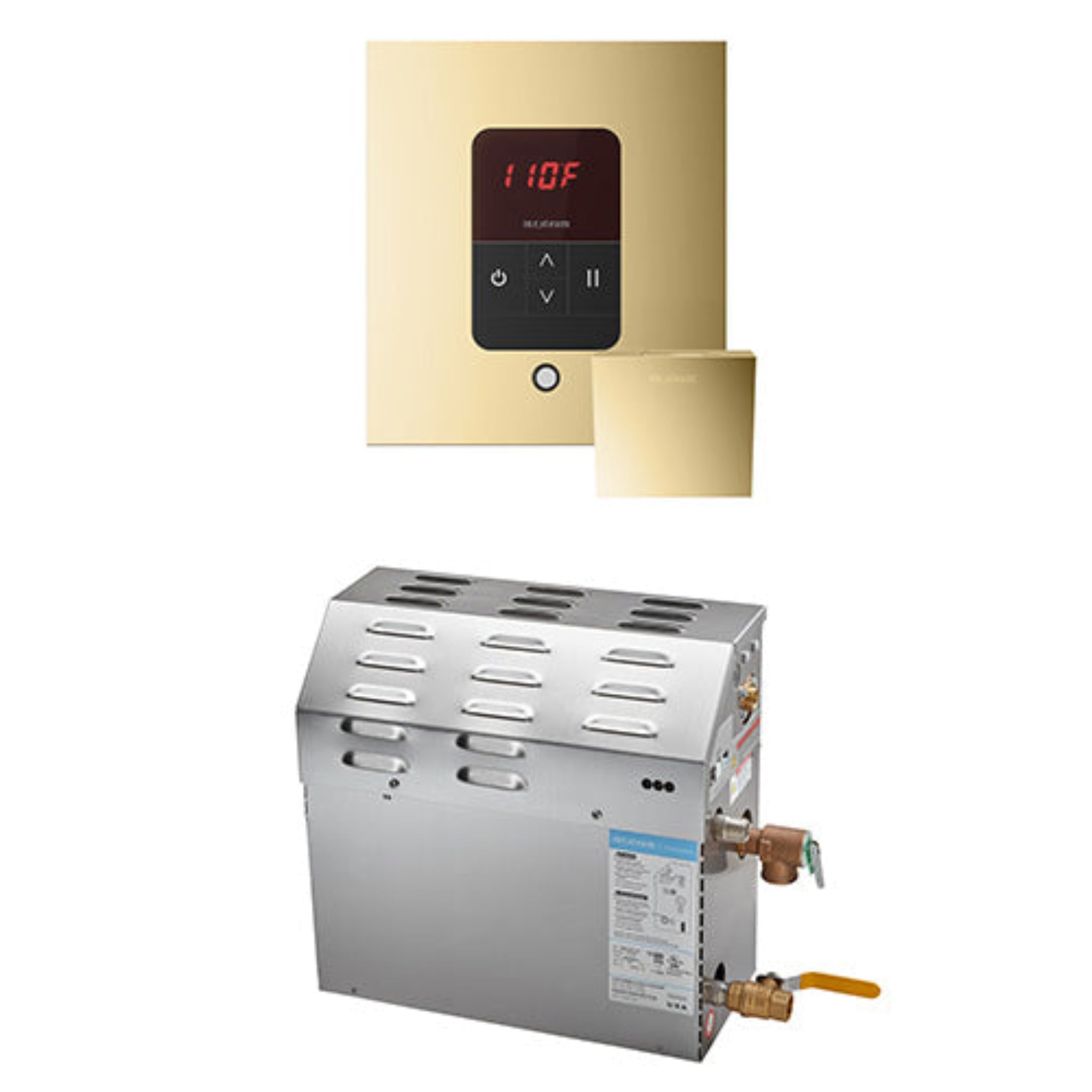

• Polished Brass

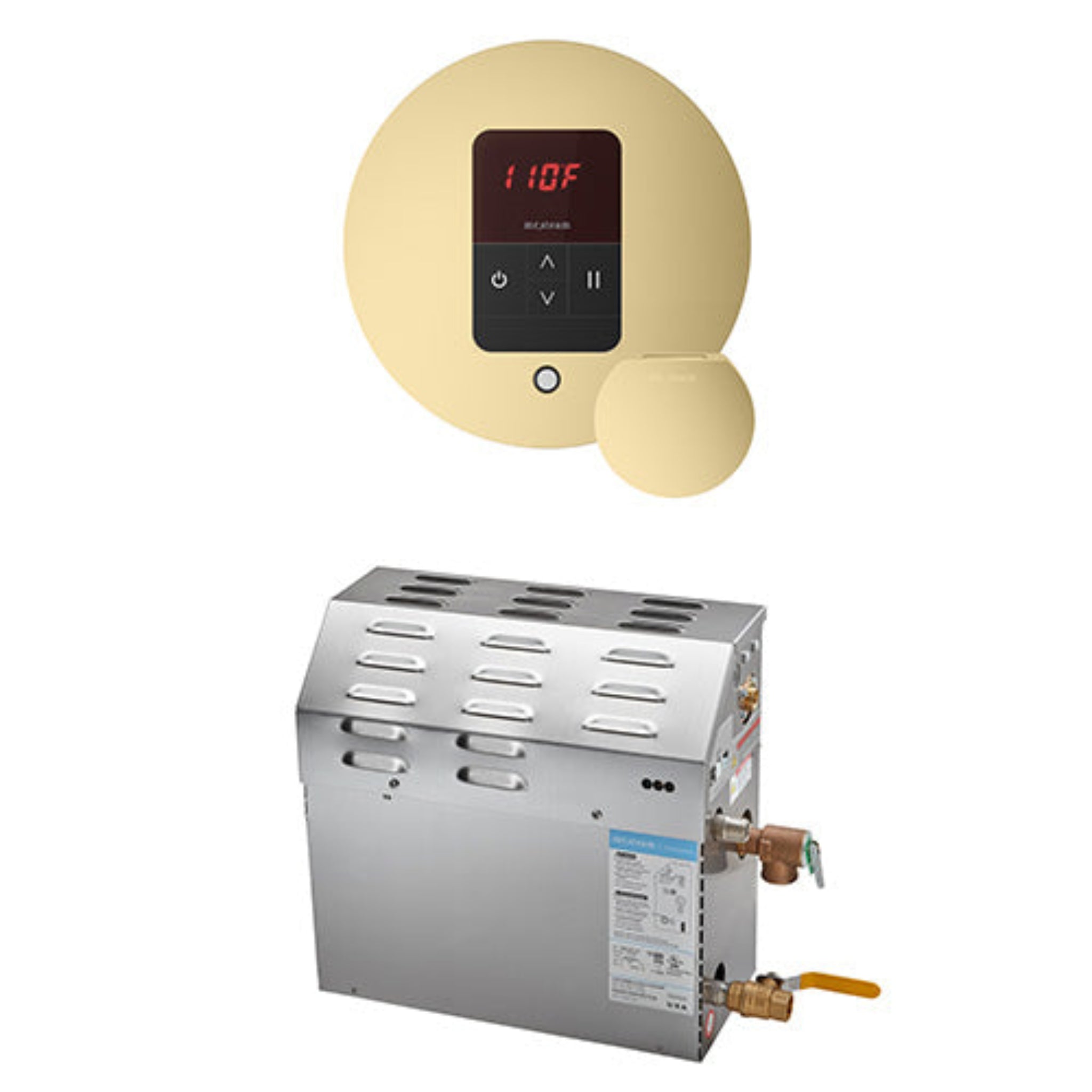

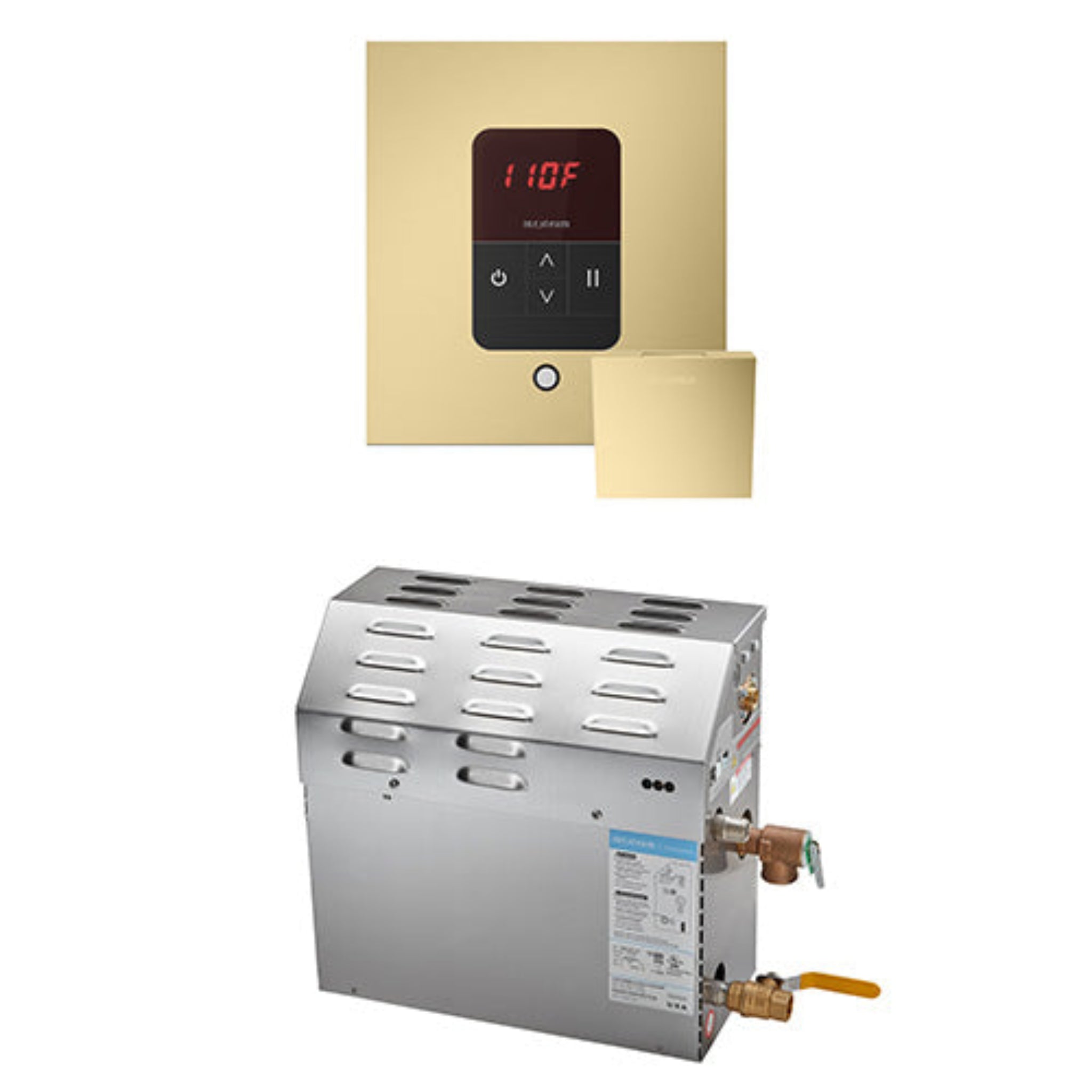

• Satin Brass
• Matte Black

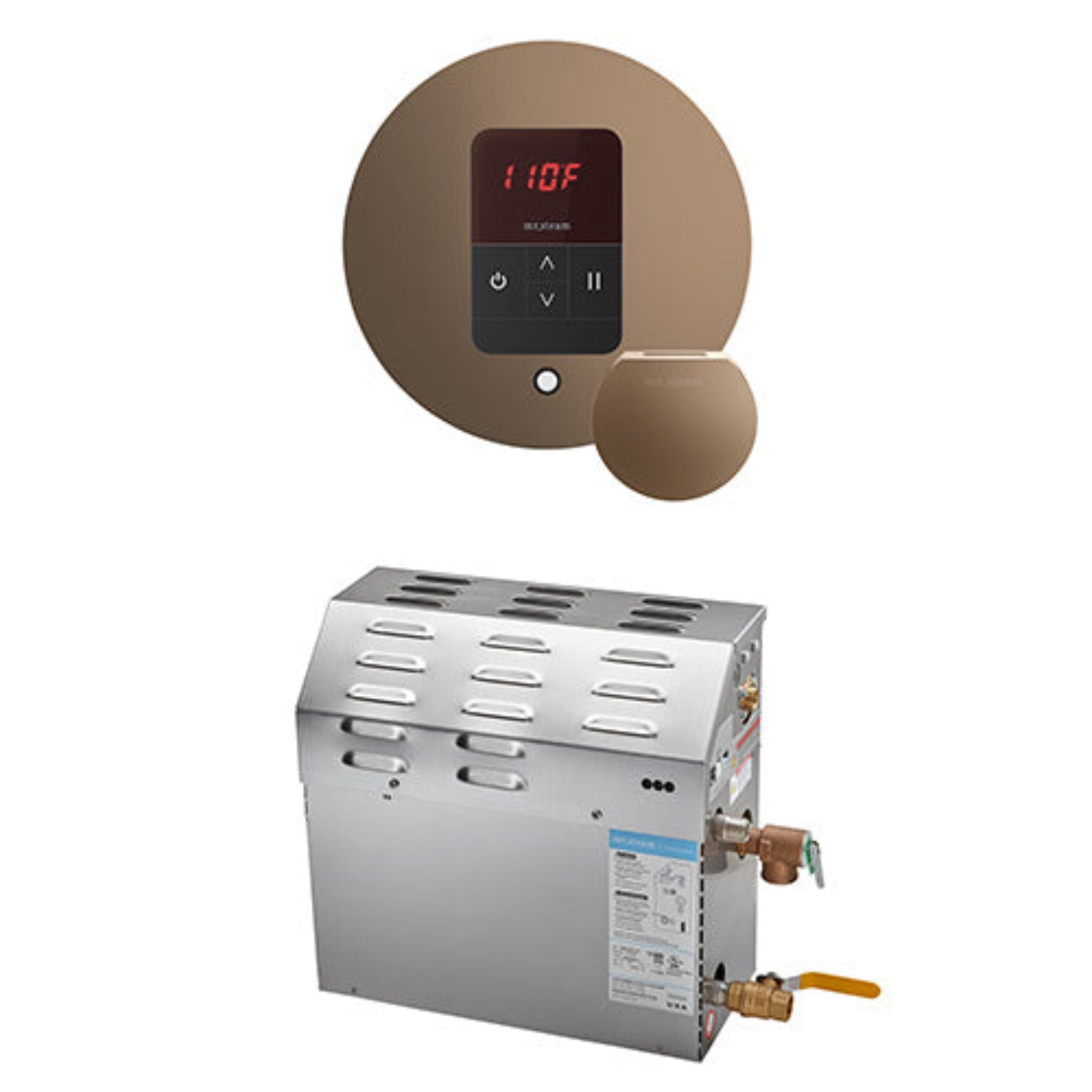

• Nouveau Bronze

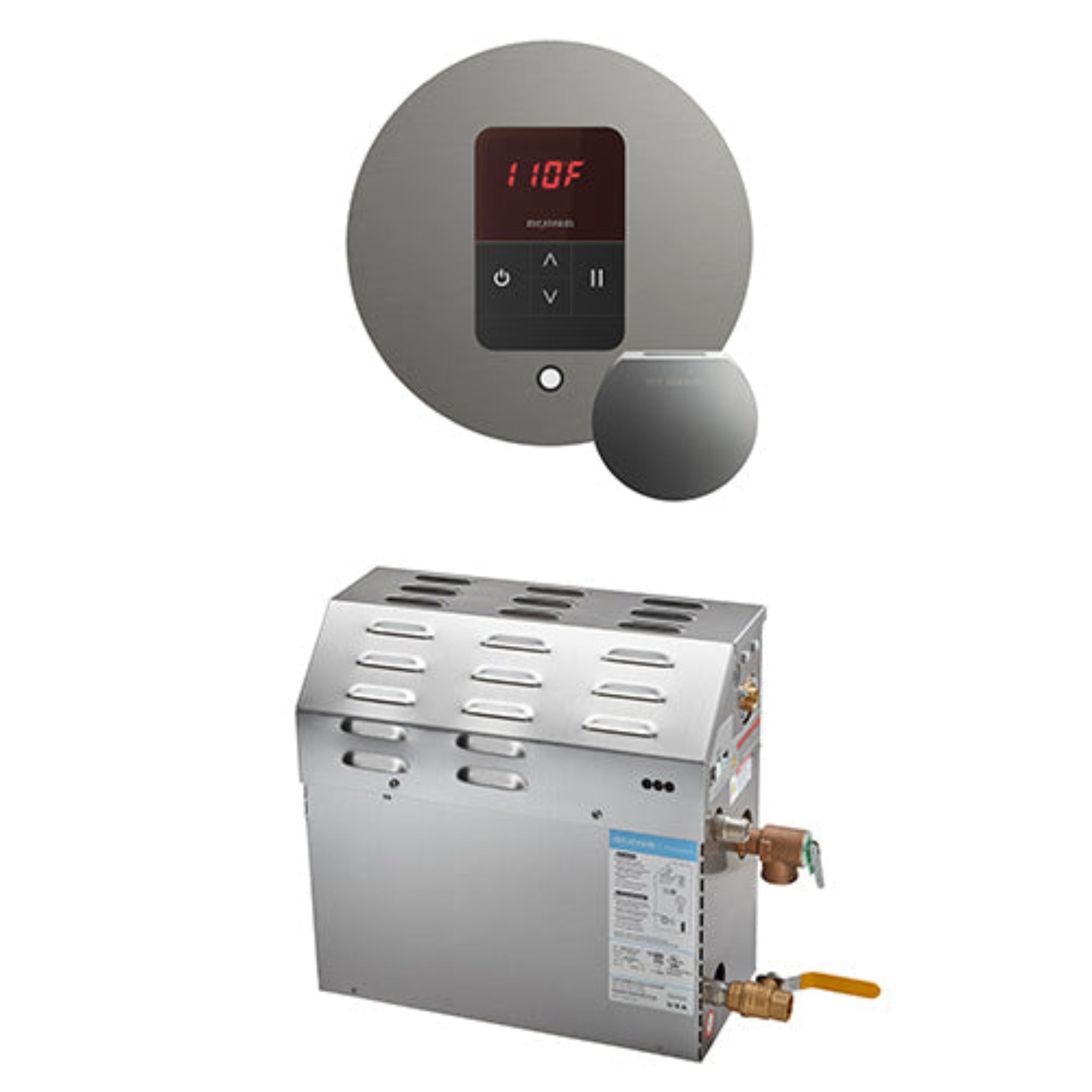

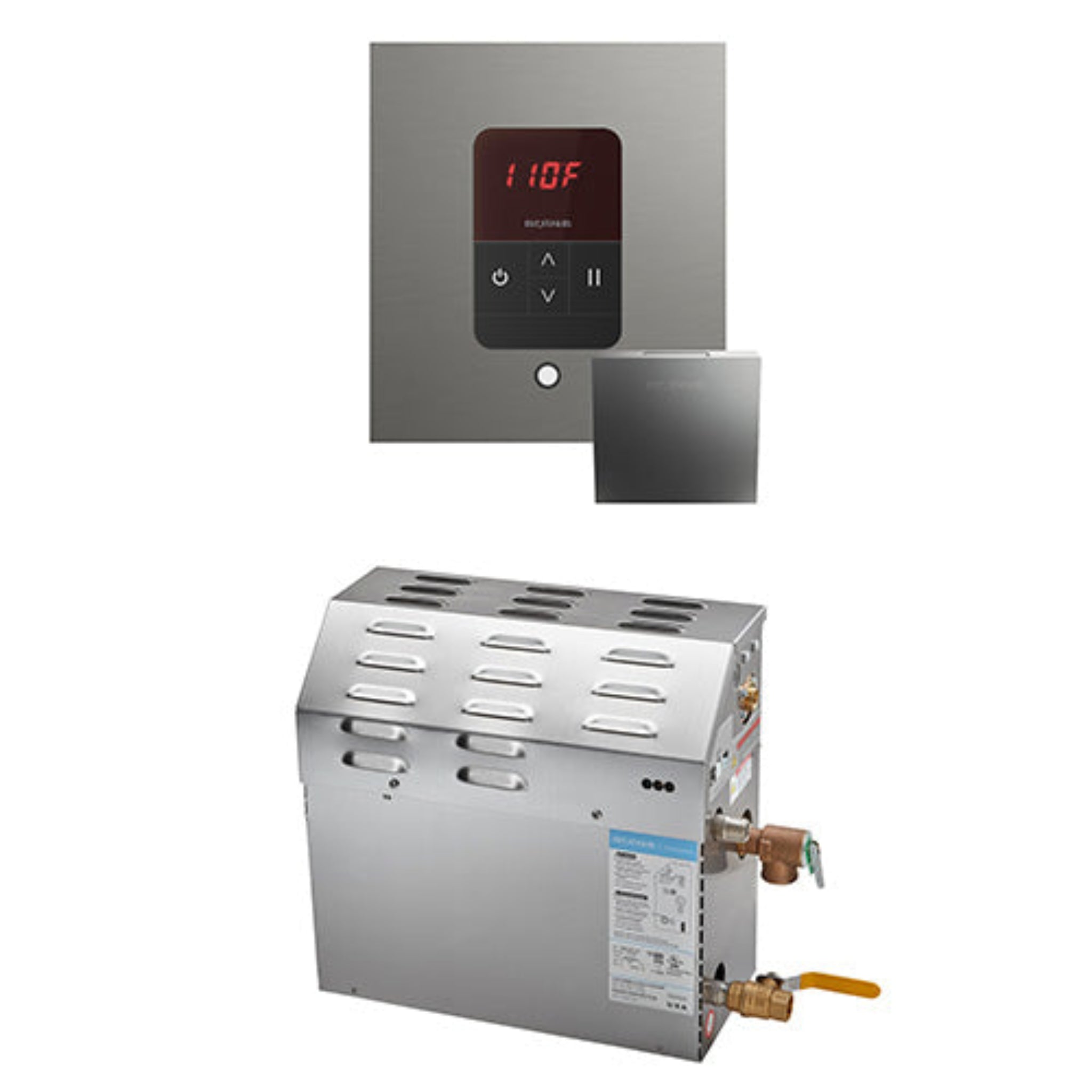

• Satin Steel

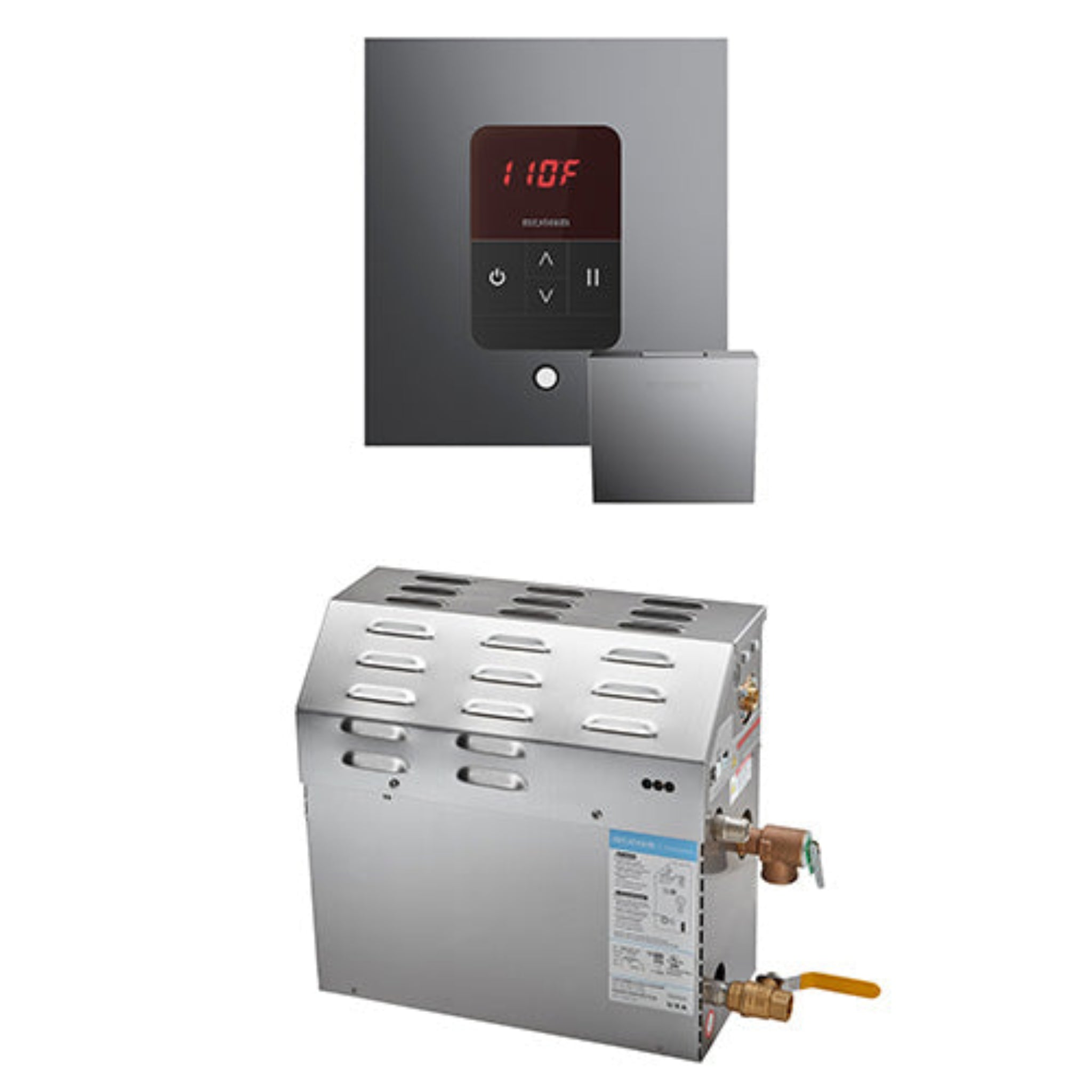

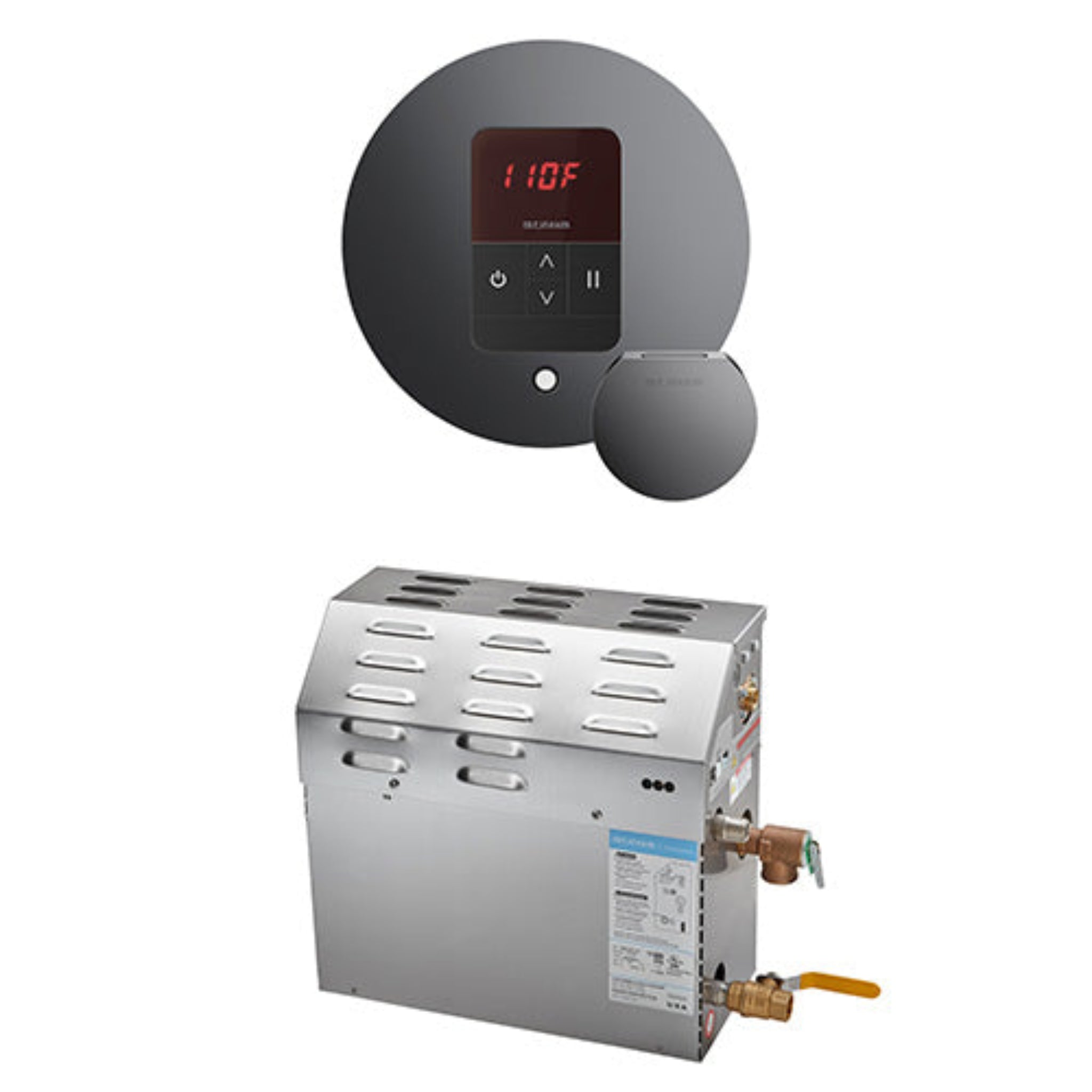

• Brilliant Black
• Polished Gold

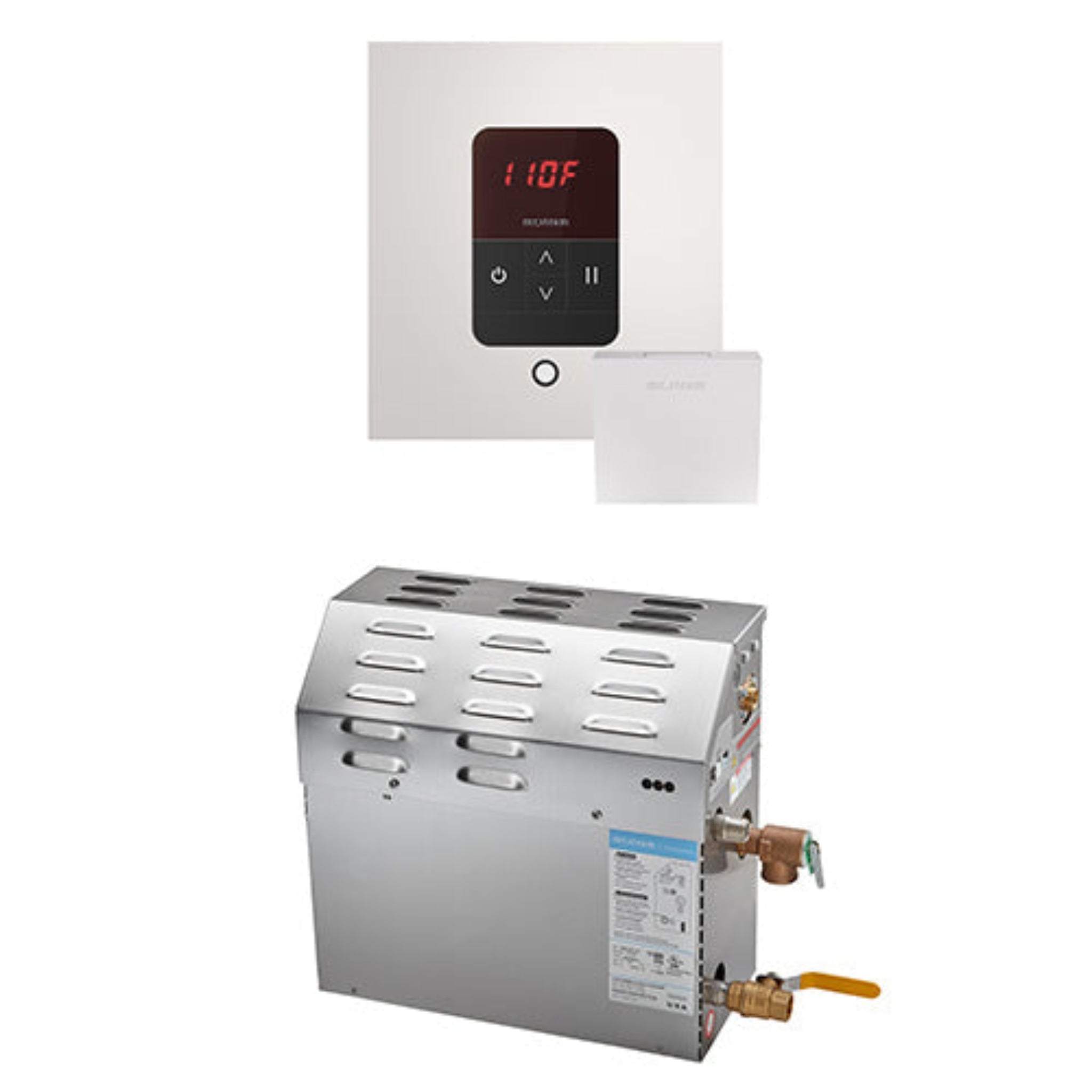

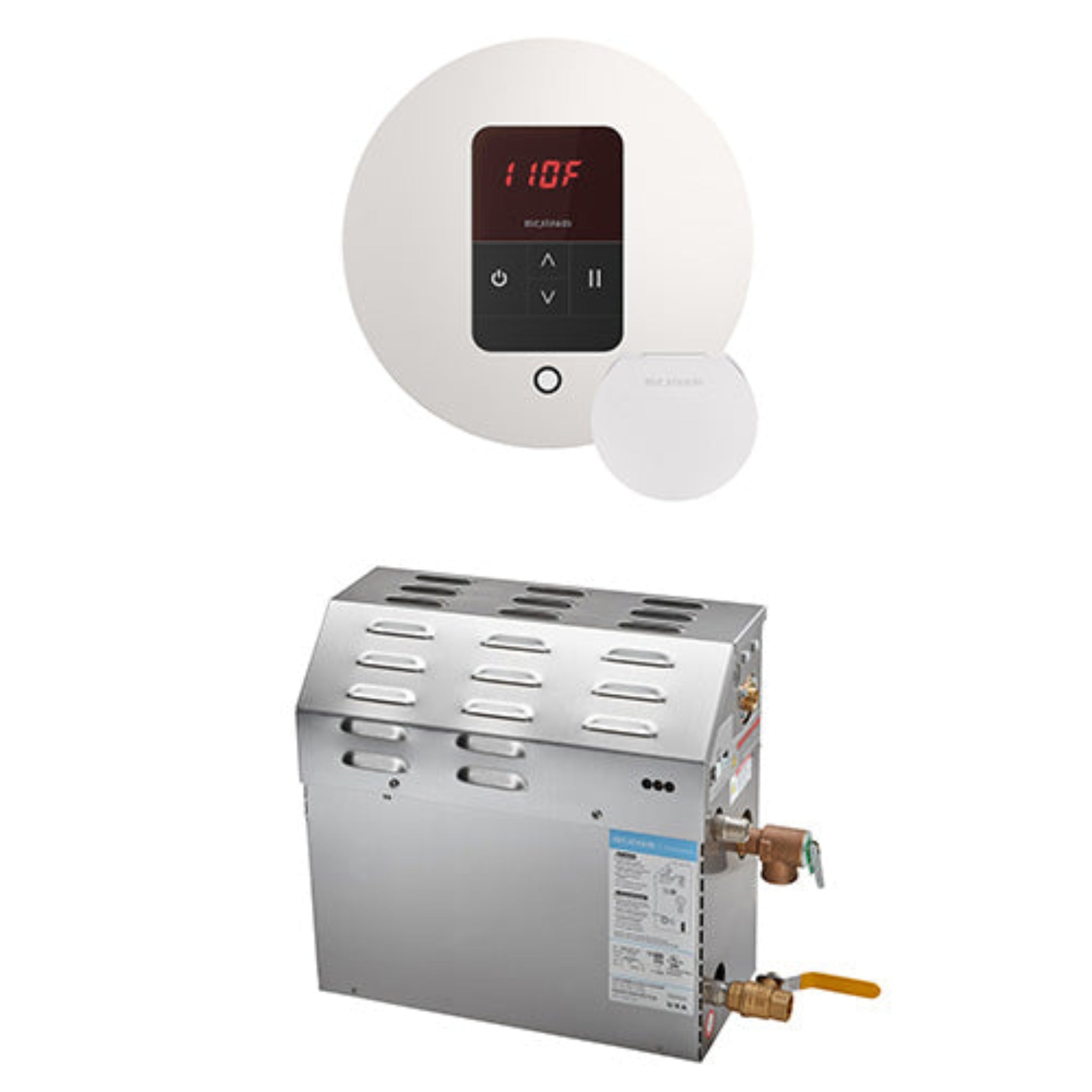

• White

The iTempo control and Aroma Designer Finish SteamHead are supplied in the selected matching style and finish. Product appearance may vary slightly by screen and lighting conditions.

MS-Series Steam Generator

The included Mr.Steam MS-Series generator is designed for residential steam shower installations and mounts outside the steam enclosure in an accessible, dry service location.

• 240V, single-phase operation
• Stainless steel generator tank
• Advanced microprocessor-based operating system
• Industrial-grade heating elements
• Low-voltage control circuits
• Diagnostic LED indicators
• Compact enclosure for flexible equipment placement
• Optional Express Steam accessory compatibility
• Water supply, steam outlet, and drain connections

Express Steam is an optional accessory and is not included unless specifically selected or listed in the order.

iTempo Digital Control

The included iTempo control provides in-shower operation of the steam generator through a digital display and push-button interface.

• Digital temperature display
• Push-button interface
• Temperature and session operation
• Designed for flush wall mounting
• Includes a 30-foot control cable
• Compatible with the optional SteamLinx module and mobile app
• Available in round or square format
• Supplied in the selected decorative finish

SteamLinx hardware is optional and sold separately unless specifically included in the selected package.

Aroma Designer Finish SteamHead

The Aroma Designer Finish SteamHead introduces steam into the enclosure and is supplied in the selected style and finish to coordinate with the iTempo control.

• Round or square design
• Brass construction
• 3/4-inch NPT steam connection
• Designed to distribute steam within the enclosure
• Integrated upper reservoir for compatible aroma oil
• No moving-part assembly required
• Matching finish with selected iTempo control

Use only aroma products and quantities permitted by Mr.Steam. Do not apply oil directly to the steam outlet or use products not approved for the SteamHead reservoir.

What’s Included

MS-Series Steam Generator

• Selected MS-Series steam generator
• Installation and operation documentation
• Generator warranty documentation

iTempo Control

• iTempo digital control in selected shape and finish
• 30-foot control cable
• Tube of silicone sealant
• Control warranty documentation

Aroma Designer Finish SteamHead

• Aroma Designer Finish SteamHead in selected shape and finish
• SteamHead warranty documentation

Required Installation Components — Not Included

• Properly constructed and sealed steam shower enclosure
• Dedicated 240V electrical circuit sized for the selected generator
• Required breaker, wiring, conduit, disconnects, and electrical materials
• Cold-water supply connection
• Steam line and approved plumbing materials
• Drain connection where required by the selected installation
• Access panel or accessible generator service location
• Qualified plumbing and electrical installation

Installation materials and requirements vary by generator size, site conditions, and local codes. Review all manufacturer documents before ordering and installation.

Specifications

MS-Series Generator

• Package Model: MS ITEMPO PKG
• Generator Series: MS-R
• Construction Material: Stainless steel
• Installation Type: Hardwired
• Adjusted Room Range: 0–257 cu. ft., depending on selected generator
• Available Output: 5kW, 6kW, 7.5kW, or 9kW
• Voltage: 240V
• Phase: Single phase
• Drain Connection: 1/2" NPT
• SteamHead Connection: 3/4" NPT
• Water Supply Connection: 3/8" NPT
• Width: 14.5" (37 cm)
• Depth: 6.8" (17 cm)
• Height: 14.8" (38 cm)
• Approximate Weight: 25 lbs (11 kg)

iTempo Control

• Model: iTempo
• Construction: Plastic, metal, and electronic components
• Installation Type: Hardwired
• Display: Digital characters
• Interface: Push buttons
• Round Control Diameter: 5" (13 cm)
• Round Control Depth: 0.3" (1 cm)
• Square Control Width: 4.5" (11 cm)
• Square Control Height: 5" (13 cm)
• Square Control Depth: 0.3" (1 cm)
• Approximate Weight: 5 lbs (2 kg)

Aroma Designer Finish SteamHead

• Models: 104515 Round / 104516 Square
• Construction Material: Brass
• Connection: 3/4" NPT
• Round Diameter: 3" (8 cm)
• Round Depth: 0.9" (2 cm)
• Square Width: 3" (8 cm)
• Square Height: 2.8" (7 cm)
• Square Depth: 0.9" (2 cm)
• Approximate Weight: 0.7 lbs

Installation Requirements

• Generator must be installed outside the steam shower enclosure
• Install in a dry, ventilated, accessible service location
• Do not install the generator inside the steam room
• Provide a dedicated electrical circuit sized for the selected generator
• Complete all water, steam, and drain connections according to the installation manual
• Maintain required generator access and service clearances
• Install the control and SteamHead in approved locations within the steam enclosure
• All plumbing and electrical work must comply with applicable local and national codes
• Installation should be completed by qualified plumbing and electrical professionals

Manuals & Documentation

• MS-Series Steam Generator Specification Sheet
• iTempo Control Specification Sheet
• Aroma Designer Finish SteamHead Specification Sheet
• Installation & Operation Manual
• Residential Steam Generator Warranty
• Controls & Accessories Warranty

Shipping & Delivery

• Free shipping within the contiguous United States (48 states)
• Shipping charges are not added at checkout for this package
• Delivery method may vary based on the selected generator and destination
• Inspect all packages at delivery and report visible damage promptly
• Verify that the generator, control style, finish, and output match the order before installation

Warranty

• MS-Series Steam Generator: Limited lifetime manufacturer warranty, subject to Mr.Steam’s published terms
• iTempo Control: 2-year limited manufacturer warranty
• Aroma Designer Finish SteamHead: 2-year limited manufacturer warranty

Warranty eligibility and coverage depend on proper product selection, installation, operation, maintenance, and compliance with Mr.Steam’s warranty requirements.

Frequently Asked Questions

Does this package include everything needed for installation?

It includes the selected MS-Series generator, iTempo control, matching Aroma Designer Finish SteamHead, control cable, and listed installation accessories. Electrical service, plumbing, enclosure construction, drainage, and installation labor are not included.

How do I select the correct generator size?

Use the adjusted cubic footage of the finished steam enclosure, not only its raw dimensions. Wall materials, ceiling height, exterior walls, and other construction factors affect the required generator size.

Can I choose a round or square control?

Yes. The package is available with either a round or square iTempo control and matching SteamHead.

Is the decorative finish applied to both the control and SteamHead?

Yes. The selected finish applies to the visible iTempo control and matching Aroma Designer Finish SteamHead.

Is SteamLinx included?

No. The iTempo control is compatible with the optional SteamLinx module and mobile app, but SteamLinx hardware is sold separately unless explicitly included in the selected package.

Where is the generator installed?

The generator must be installed outside the steam enclosure in a dry, accessible, and ventilated equipment location that meets the manufacturer’s clearance and service requirements.

Does this system require professional installation?

Yes. Qualified plumbing and electrical installation is recommended and may be required by applicable codes and permit rules.
